HP350PM 植物光照分析仪——2022神灯奖最佳技术奖

设备 Equipment

发布时间:2022/1/10 16:16:46

申报项目名称(中文):HP350PM 植物光照分析仪

申报项目名称(英文):HP350PM Plant Light Analyzer

申报单位名称(中文):杭州双色智能检测仪器有限公司

申报单位名称(英文):Hangzhou Double Color Intelligent Detection Instrument Co., Ltd.

完成时间:2021-05-10

进入市场时间:2021-05-18

综合介绍或申报理由
HP350PM植物生长灯测试仪 针对植物生长灯参数PPF测试仪,基于长焦距光谱法来测量。测量参数:PPE、PPF、PRF、光合辐(射)照度、叶绿素加权、光照度、辐射照度、色品坐标、色温、显色指数等参数外,光合光子通量密度、光合辐(射)照度、远红光辐照度等参数。可广泛应用于植物灯生产厂家、植物无土栽培、温室等植物生长中光辐射的现场监控。 紫外光为350~399nm,蓝色为400~499nm,绿色为500~599nm,红色为600~700nm,近红外光为701~780nm、红外光780-800nm HP350PM Grow Lamp Tester For the plant growth lamp parameter PPF tester, it is measured based on long focal length spectroscopy. Measurement parameters: PPE, PPF, PRF, photosynthetic radiation (radiation) illuminance, chlorophyll weighting, illuminance, irradiance, chromaticity coordinates, color temperature, color rendering index and other parameters, photosynthetic photon flux density, photosynthetic radiation (radiation) illuminance, parameters such as far-red irradiance. It can be widely used in on-site monitoring of light radiation in plant growth such as plant lamp manufacturers, soilless cultivation of plants, and greenhouses. Ultraviolet light is 350~399nm, blue light is 400~499nm, green light is 500~599nm, red light is 600~700nm, near infrared light is 701~780nm, infrared light is 780~800nm

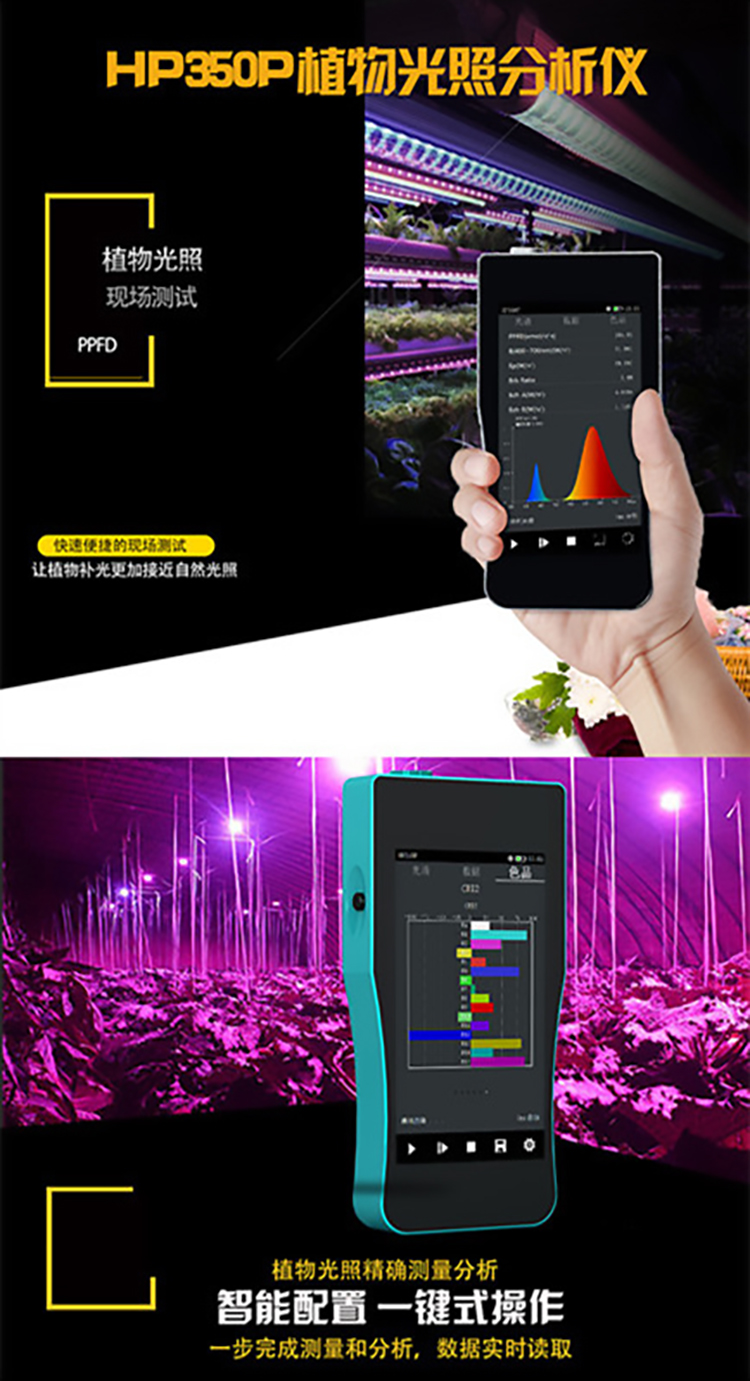

项目缩略图

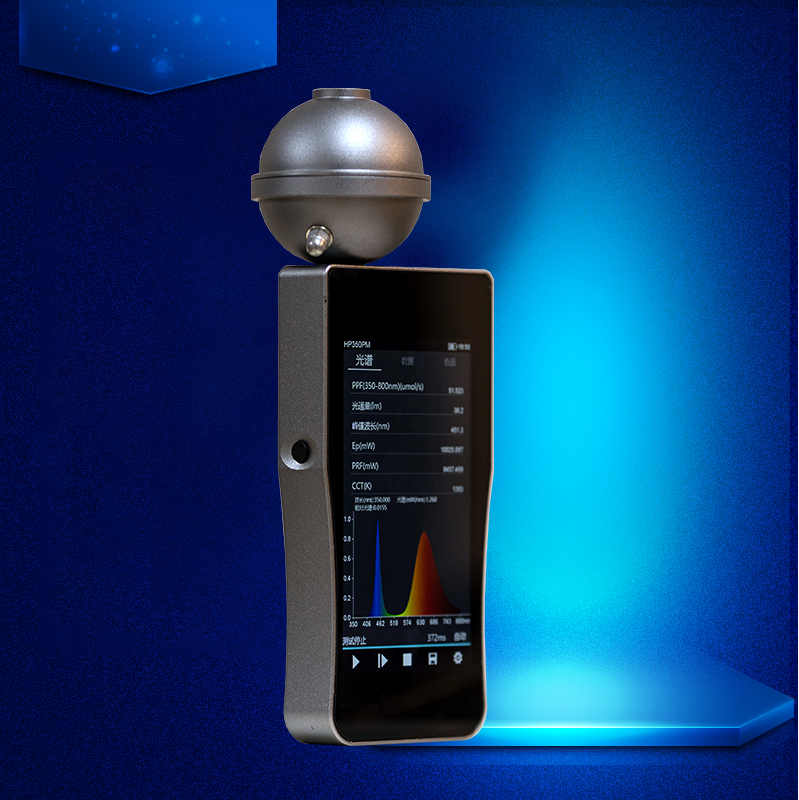

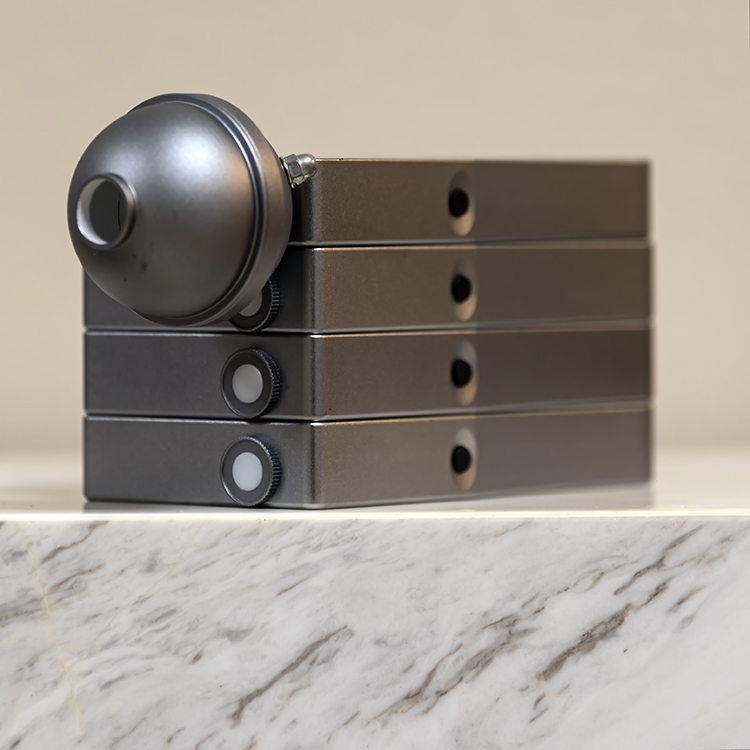

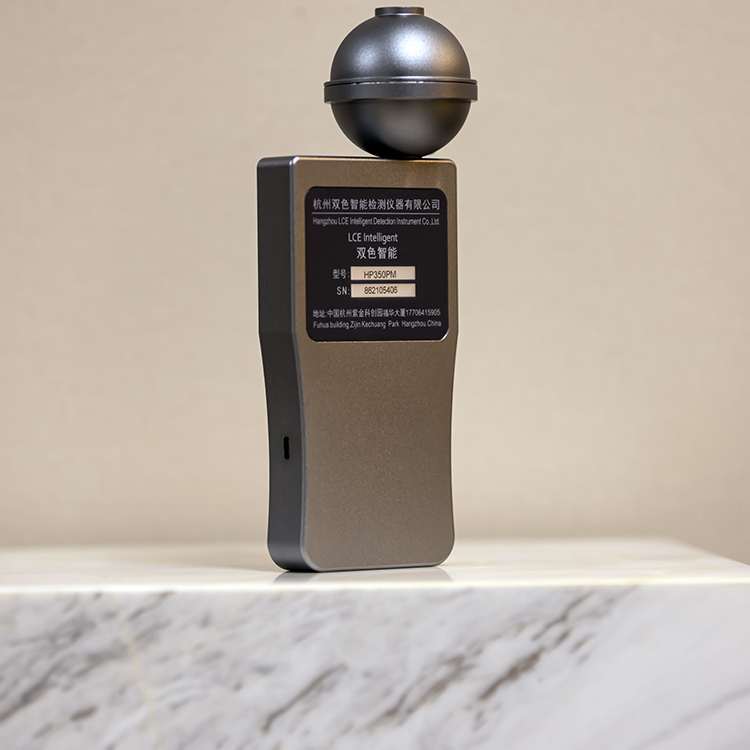

相关项目图片
项目宣传视频

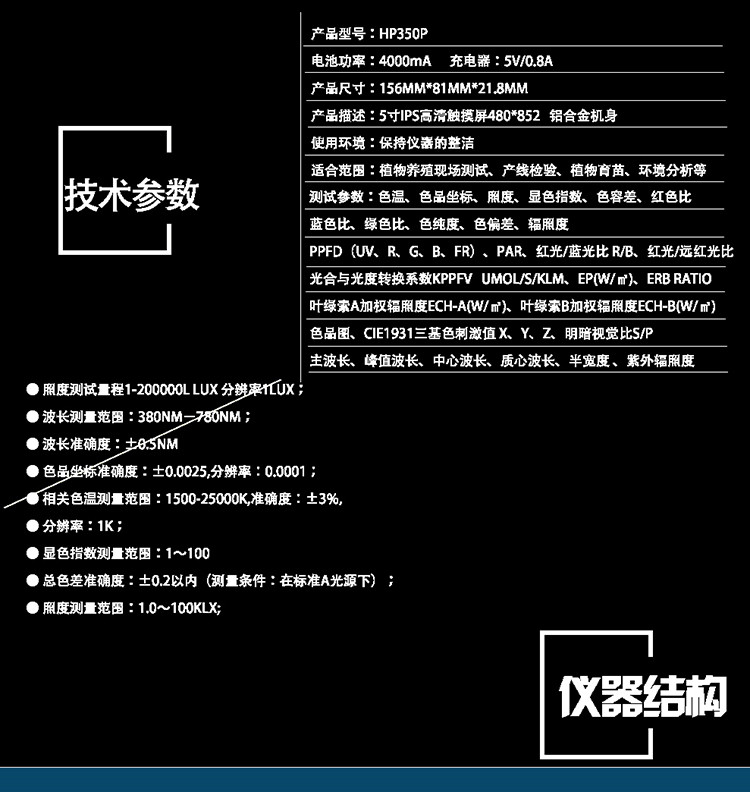

主要技术参数
HP250P(350-800nm 485、232、USB通讯) PHOTOT200P植物光量子计(400-700nm) HP370光照探头(400-700nm 485、232、USB通讯) 植物工厂时时监测定制方案:多路光谱监测、多路PPFD监测
技术及工艺创新要点
● 光通量(Lm) ● PPF(350-800nm)(umol/s) ● PPFuv(umol/s) ● PPFr(umol/s) ● PPFDg(umol/s) ● PPFb(umol/s) ● PPFfr(umol/s) ● Ep(mw) Euv(mw) ● Er(mw) Eg(mw) ● Eb(mw) Efr(mw) ● 红光比/蓝光比R/B ● 红光/远红光比R/FR ● 光合有效辐射通量PRF(mw) ● 光合与光度转换系数KPPFV(umol/s/KLm) ● PPF(400-700)(umol/s) ● PPE(umol/J) ● 相关色温 Tc(K) ● 黑体偏离Duv ● 光照度 E(lx) ● 烛光E(Fc) ● 辐射照度 Ee(W/m2) ● 色品坐标(x,y)、(u,v)、(u′,v′) ● 相对光谱功率分布 P(λ) ● 显色指数 Ra,Ri(i=1~15) ● 显色指数 (长条示意图) ● 显色指数 (空间示意图) ● 色品坐标图CIE1976 CIE1960 CIE1931 ● 色容差图 SDCM(麦克亚当椭圆、矩形框以及 CIEu’v’圆) ● 主波长、峰值波长、中心波长、质心波长、半宽度 ● 明暗视觉比S/P ● 色纯度、红色比、绿色比、蓝色比,CIE1931三基色刺激值 X、Y、Z ● 更多功能参数可定制 B、技术特性及指标 ● 采用先进的微型光谱仪技术,比传统的探头测试精度更高; ● 配有电脑软件,可连接电脑打印测试报告; ● 电脑连接方式:USB ● 彩色液晶显示,图文界面好,可显示光谱波形、色容差椭圆图; ● 分光模式:长焦分叉非对称CT分光系统; ● 传感器采用高精度CCD; ● 光谱带宽(FWHM)2nm; ● 屏幕尺寸 :5.0 IPS高清彩色LCD触摸屏; ● 光通量测试量程:10mlm-100000lm; ● 照度测试量程1-2000000Lux 分辨率1Lux; ● 波长测量范围:350nm-800nm; ● 波长准确度:±0.5nm ● 色品坐标准确度:±0.0025,分辨率:0.0001;; ● 相关色温测量范围:1000-100000K: ● 分辨率:1K; ● 显色指数测量范围:R1~R15 ● 总色差准确度:±0.2以内(测量条件:在标准A光源下); ● 连续工作时长:配置4000mA高容量锂电池,一次充电可连续使用20小时以上; ● 存储容量:标配8G大容量数据存储卡,数据存储量30000条以上; ● 集光谱、照度、色度等测量功能于一体;
实际运用案例和用户评价意见
申报单位介绍
杭州双色智能检测仪器有限公司位于中国经济最发达的长江三角洲腹地-杭州城西科创大走廊东部核心区紫金科创园,专业从事光谱彩色照度计、亮度计、紫外照度计、智慧农业光照分析、UV能量计、LED光色电综合测试系统、光强空间分布、植物光照分析仪、照明光学智能化检测设备研发、生产、销售、服务于一体的高新技术企业。产品广泛应用于工业、农业、家居、照明灯具、教学培训、实验室等行业。公司拥有完整、科学的质量管理体系,拥有经验丰富的电子、软件研发工程师队伍、一流的售后服务团队竭诚为你服务。公司以 “质量求生存,信誉求发展” 的宗旨,以客户为中心、为客户排忧解难的经营理念服务于广大用户。双色智能倡导“诚信、专业、务实、高效、创新”的企业精神,具有良好的内部机制。优良的工作环境以及良好的激励机制,吸引了一批年轻的、有学识的、具有实干精神的人才。 Hangzhou Shuangse Intelligent Detection Instrument Co., Ltd. is located in the most economically developed Yangtze River Delta hinterland - Zijin Science and Technology Park, the eastern core area of ??Hangzhou City West Science and Technology Corridor, specializing in spectral color illuminometers, luminance meters, ultraviolet illuminance meters, intelligent agricultural light analysis, A high-tech enterprise integrating R&D, production, sales and service of UV energy meter, LED light, color and electricity comprehensive test system, light intensity spatial distribution, plant illumination analyzer, and lighting optical intelligent detection equipment. Products are widely used in industry, agriculture, home, lighting, teaching and training, laboratories and other industries. The company has a complete and scientific quality management system, an experienced team of electronics and software R&D engineers, and a first-class after-sales service team to serve you wholeheartedly. With the tenet of "quality for survival, reputation for development", the company serves the majority of users with the business philosophy of customer-centered and solving problems for customers. Two-color intelligence advocates the enterprise spirit of "integrity, professionalism, pragmatism, efficiency and innovation", and has a good internal mechanism. Excellent working environment and good incentive mechanism have attracted a group of young, knowledgeable and practical talents.
