综合介绍或申报理由: ACME?AECO 20?采用革新的1400W LED光引擎,通过出光镜头直径为200mm的高精密光学元件,高亮的光输出,光束耀眼且平滑均匀。
基于光源与光学技术的完美结合,AECO 20 作为高显指灯具,其光通量36,000 lm,Ra≥95,R9≥90,极高的饱和色彩还原度。
线性CMY混色系统,提供丰富的色彩饱和度和清晰的无缝色彩过渡。图案片由高清晰度的分色玻璃制成,与颜色盘一起创建多姿多彩的图形。2,700K至6,000K可调的线性CTO色温。
缩放范围5°-50°,机械线性光圈,1个4棱镜,1个4面直排镜,均可双向旋转;2片可叠加使用的新型材料的高亮度雾化片,有效提升切入雾化模式的亮度。可实现快速、准确、平滑切割,整个切割模块可以旋转±60°;多种图案展示方式,为灯光设计师提供了高度的灵活性。
AECO 20 不仅具备光束、图案、染色、切割等功能,还采用节能环保的LED光引擎,缔造高品质的光输出,纯正灯光颜色,极高色彩还原度。为院剧场,演播室,会议多功能厅提供广阔“能动力”,为舞台灯具上选佳品。
The innovative high color rendering LED engine is the foundation of our AECO series and we developed a milestone product by applying the upgrading 1400W HCRI LED:?AECO 20.
Firstly, we revolutionize the color of this giant, so you will see the perfect Red(630nm±3nm), Green(535nm±3nm), and Blue(450nm±3nm) after mixing the innovative CMY flags. Secondly, with the brand new HCRI LED, AECO 20 delivers excellent white light of RA≥95, R9≥90, R15≥95, TLCI≥95, and CCI 0-0.5G with no compromise.
Beneath the large 200mm frontal lens, a complex but compact functional area is waiting. Fixed gobos, rotating gobos, saturated colors, 2 prisms, animation disk, framing shutters, linear CTO, all functions can be layered to create original and dynamic effects while maintaining a high luminous flux - at a tight angle of 5 °, the luminous flux reaches 84,000 lx @5m and 21,000 lx @10m. With the total lumen output over 36,000lm, the AECO 20 is not only a 4-in-1 hybrid fixture but also an energy-saving and environmentally friendly partner, which ideal for all kinds of medium to large scale concert, TV studio, theatre show, and multiple kinds of art performances.
电气与接口 自适配电源 输入电压范围: 100-240V~ 50/60Hz 功率: 1580 W 电源插座:直出线 信号输入/输出:三芯和五芯卡侬头插座,RJ45接口

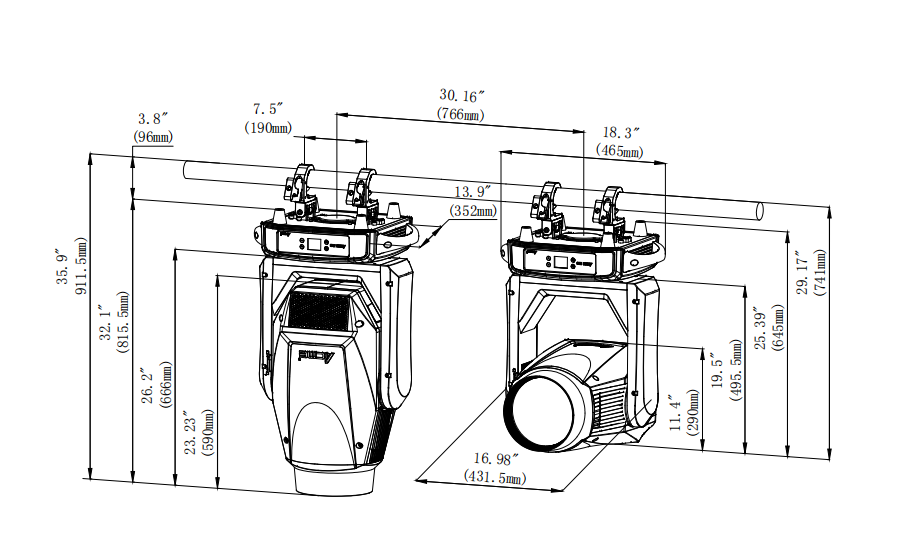

灯具规格 灯具尺寸:宽: 465 mm (18.3") 深: 352 mm (13.9") 高: 816 mm (32.1") 净重: 47.5 kg (104.7 lbs) 飞行箱尺寸:宽: 715 mm (28.1") 深: 595 mm (23.4") 高: 905 mm (35.6") 净重: 93.5 kg (206.1 lbs) (含飞行箱 1装1标准)
Features Fitted with a powerful 1400W LED engine and a large 200mm frontal lens Color Temperature: 6,000K Total lumen output up to 36,000 lm Color Rendering:Ra≥95,R9≥90,R15≥95 TLCI≥95 TM-30 Rf: 91 TM-30 Rg: 99 Zoom Range: 5°-50° 2 Variable Frost Filters: Light and Medium 4 Rotating full blackout framing shutter blades with individual positionable; Rotation of the framing system module: +/- 60°
The innovative high color rendering LED engine is the foundation of our AECO series and we developed a milestone product by applying the upgrading 1400W HCRI LED:?AECO 20. Firstly, we revolutionize the color of this giant, so you will see the perfect Red(630nm±3nm), Green(535nm±3nm), and Blue(450nm±3nm) after mixing the innovative CMY flags. Secondly, with the brand new HCRI LED, AECO 20 delivers excellent white light of RA≥95, R9≥90, R15≥95, TLCI≥95, and CCI 0-0.5G with no compromise. Beneath the large 200mm frontal lens, a complex but compact functional area is waiting. Fixed gobos, rotating gobos, saturated colors, 2 prisms, animation disk, framing shutters, linear CTO, all functions can be layered to create original and dynamic effects while maintaining a high luminous flux - at a tight angle of 5 °, the luminous flux reaches 84,000 lx @5m and 21,000 lx @10m. With the total lumen output over 36,000lm, the AECO 20 is not only a 4-in-1 hybrid fixture but also an energy-saving and environmentally friendly partner, which ideal for all kinds of medium to large scale concert, TV studio, theatre show, and multiple kinds of art performances.
