综合介绍或申报理由：
晨芯系列可变色温大功率COB LED 模组是“十三五”国家重点研发计划重点专项“高效高可靠LED灯具关键技术研究”最新成果，行业首创标准化模组复合相变散热一体化成型技术，突破COB光源散热瓶颈，实现标准模组尺寸和更大功率及功率密度下的小体积、轻量化，有效降低道路、高杆、高速隧道、高铁隧道内灯具所承受的风阻，大幅降低产品成本；创新采用芯片异形排布与光学玻璃透镜一体化配光设计，突破了传统照明眩光严重的技术瓶颈，解决了光线利用率低的问题，实现更强的控光能力、更好的照明效果，解决眩光高、照度低、均匀度低、照射距离近等SMD光源传统LED模组照明应用痛点。晨芯系列可变色温大功率COB LED 模组授权专利15项，荣获第十二届吉林省照明科学技术奖-照明产品奖一等奖。产品填补市场空白，成功应用在城市道路、铁路、高速隧道等场所，取得用户的一致好评，为安全、健康、节能的户外照明光环境提供产品支持，促进行业整体水平提升，满足国家重大项目建设的需求。 ChenXin-series variable-CCT high-power COB LED module is the latest achievement of the key special project "Research on Key Technologies of Efficient and Reliable LED Lamps" of the 13th Five-Year Plan. It is the industry's first application of composite phase change heat dissipation integrated forming technology in standardized module. It breaks through the heat dissipation bottleneck of COB light source, realizes small volume and lightweight under standard module size as well as higher power and power density, and effectively reduces wind resistance on lighting fixtures on roads, high-pole lighting, within expressway tunnels, high-speed railway tunnels, thus significantly reducing product cost. The innovative use of light distribution design integrating irregular chip arrangement and optical glass lens breaks through the technical bottleneck of serious traditional lighting glare, solves the issue of low light utilization, realizes stronger light control capability and better lighting effect, and solves difficulties in SMD light source traditional LED module lighting application, such as high glare, low illumination, low uniformity and short irradiation distance. ChenXin-series variable-CCT high-power COB LED module has 15 authorized patents and won the first prize of the 12th Lighting Science and Technology Award - Lighting Product Award of Jilin Province. The product fills the market gap, has been successfully applied in urban roads, railways, expressway tunnels and other fields, and has won unanimous praise from users. It provides product support for safe, healthy and energy-saving outdoor lighting environment, promotes the overall level of the industry, and conforms to the requirements of national major project construction.

产品缩略图：

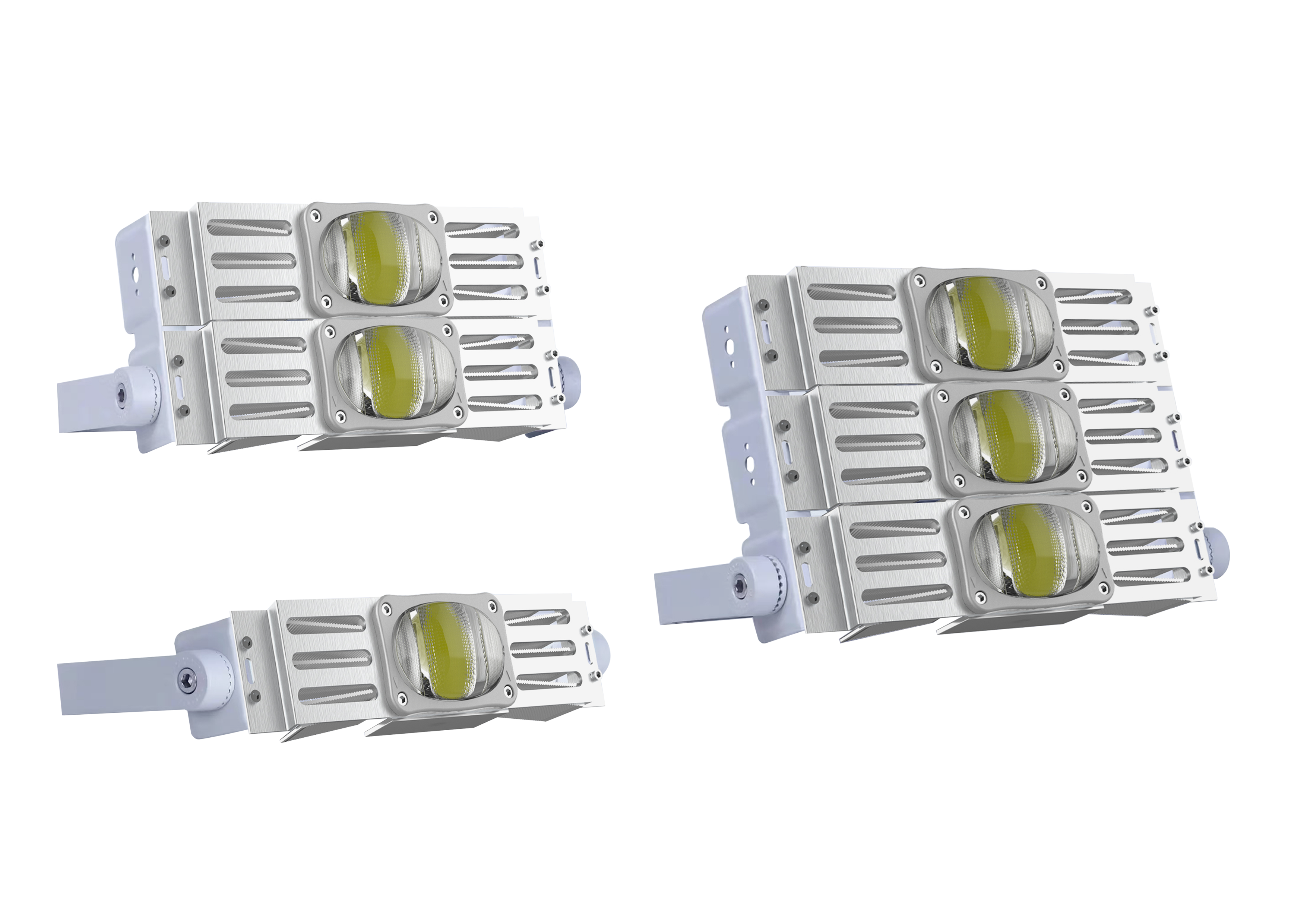

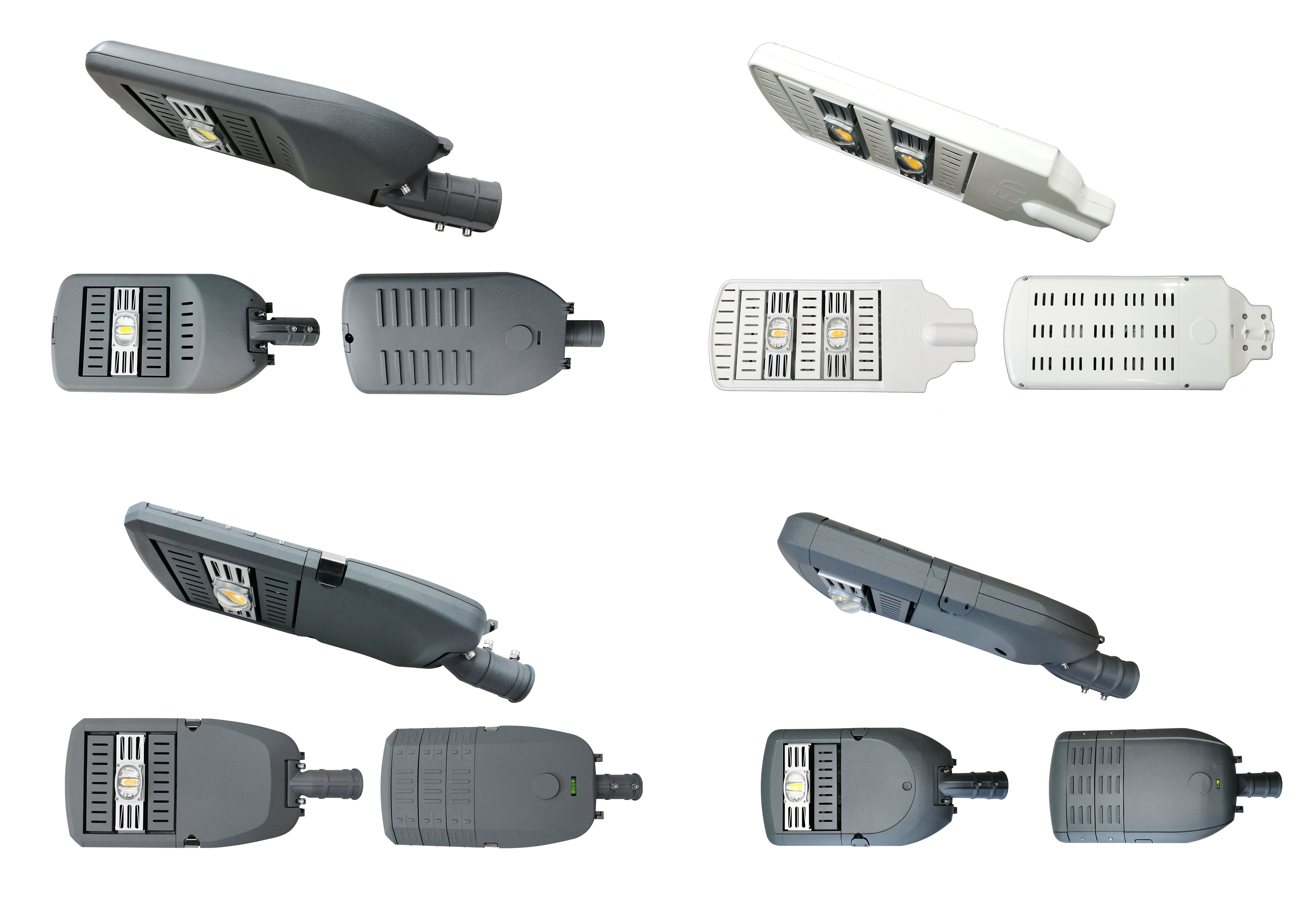

相关产品图片：

项目宣传视频：

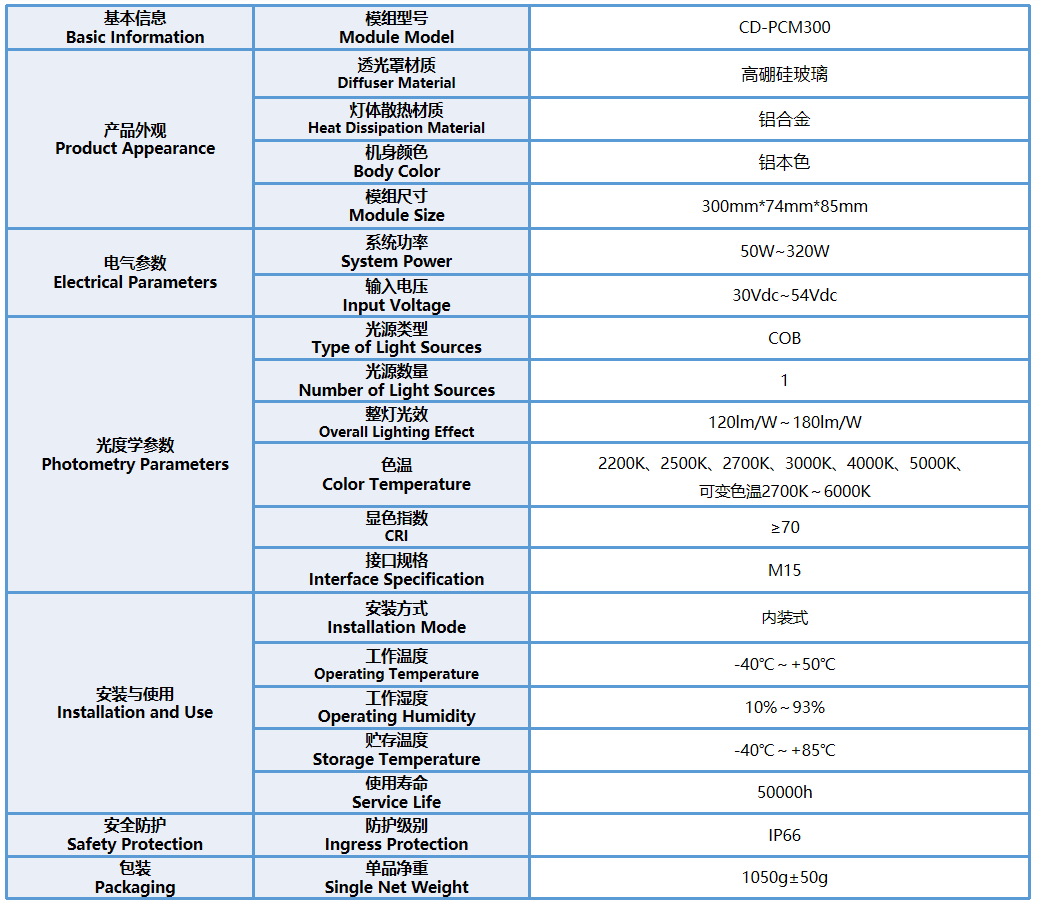

主要技术参数：

技术及工艺创新要点：

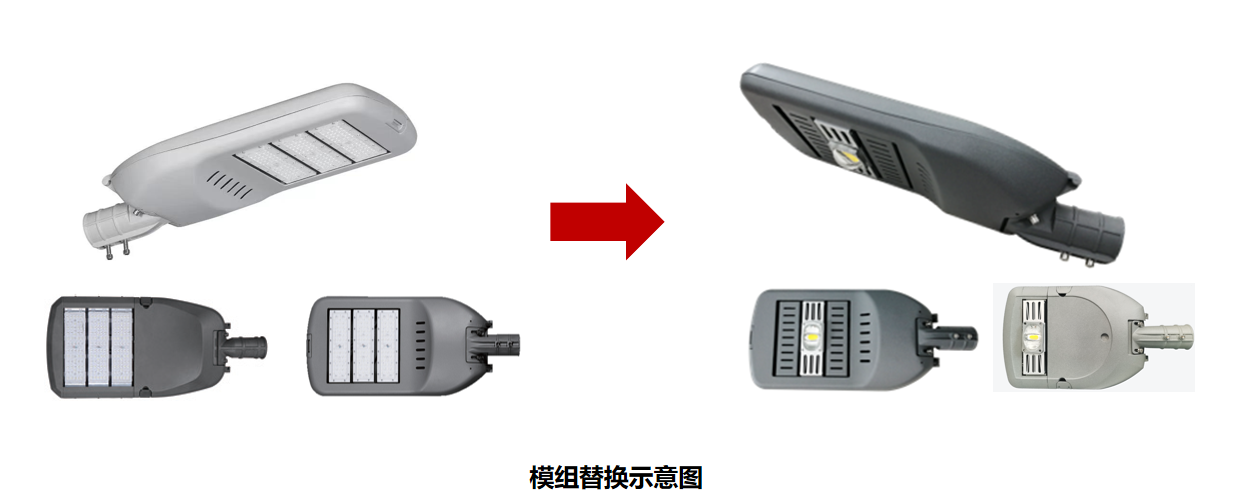

1.标准化模组、小身材大能量
依据国标《LED照明应用与接口要求》进行标准模组设计，功率150W单模组可有效替换3条行业标准（50W）模组，实现大功率、小体积、轻量化。可降低灯壳、灯杆和基建成本，提高安全性，实现更广泛的应用，为客户创造更大的商业价值。
2.稳定可靠、高效散热
行业首创标准化模组复合相变散热一体化成型技术，通过相变腔内导热工质的汽液相转换，迅速带走COB光源的热量，有效降低芯片结温，满足高功率密度COB光源的散热需求，实现产品的高可靠、长寿命、低光衰。
3.光学玻璃透镜、零光衰、无静电吸附
二次光学透镜为玻璃材质，耐高低温、工作温度-50℃～500℃；抗冲击等级最高可达IK09，具有抗腐蚀、抗盐碱、抗紫外等特性，不存在静电吸附，具有自清洁能力，长期使用不会老化发黄而影响透光率。

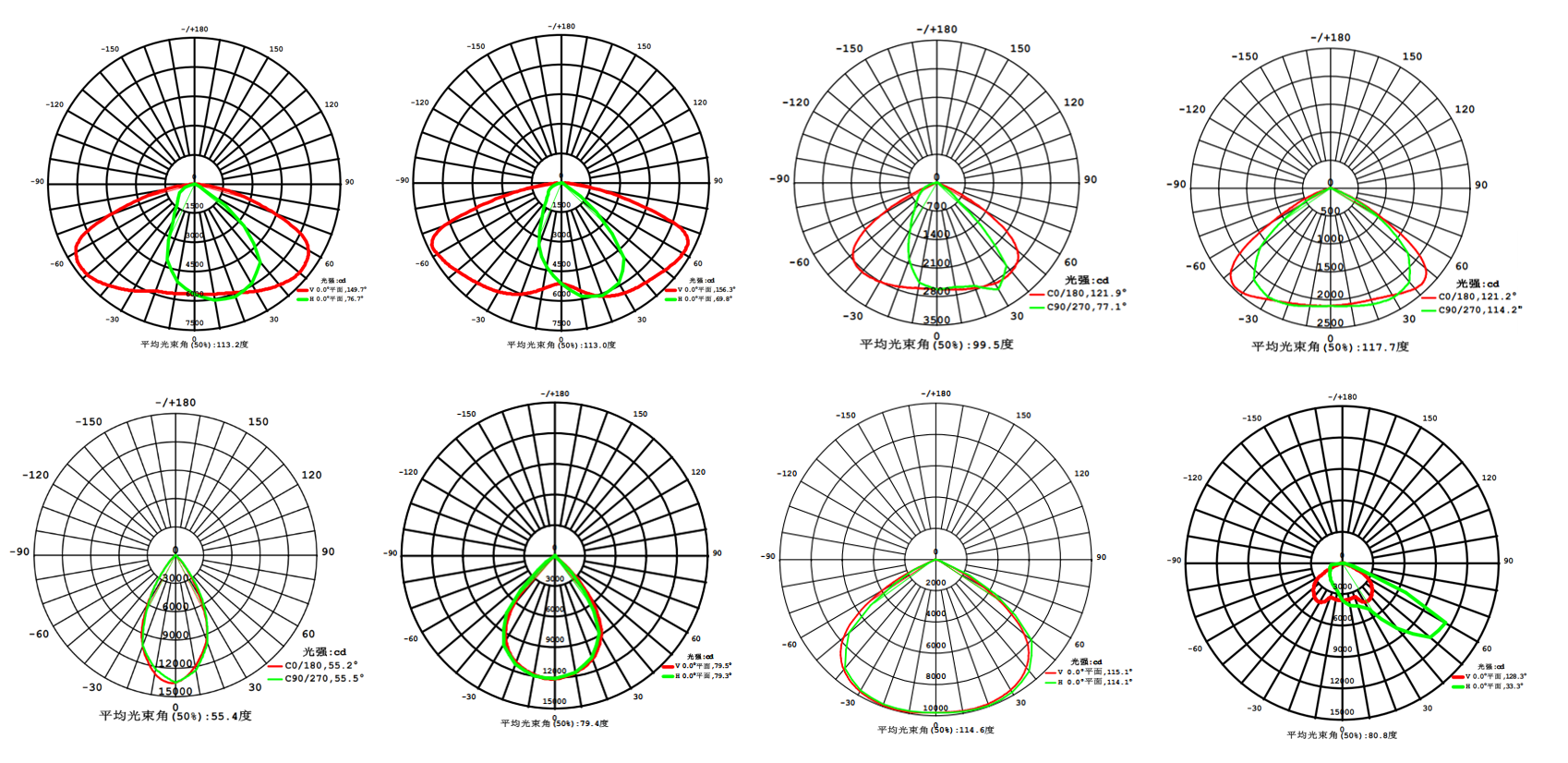

4.配光精准、色温可变
可满足各种道路标准，实现行业领先的精准配光和配光组合。创新采用芯片异形排布与光学玻璃透镜一体化配光设计，实现大宽杆比和大距杆比，去除道路纵向和横向照明亮暗区；提高路面的光线利用率和均匀度，有效降低眩光；可通过照明整体设计降低灯杆和基建等工程成本。可满足50米杆距大距高比应用场景和双向8-10车道（40米路宽）应用场景。产品可采用单颗可调色温COB光源，实现2700K-6000K色温连续调节，高、低色温光分布均匀，配光及均匀性效果好，性价比高。
5.多智能接口
灯具可预留有调光接口（0-5V、0-10V、PWM），可以搭配多种智能控制系统，实现按需照明、故障监测与定位、电量统计分析等功能。
1.Standardized module、small size and high energy
The standard module is designed in accordance with national standard Requirements for LED Lighting Applications and Interfaces. The 150W single module can effectively replace three industrial standard (50W) modules to achieve high power, small volume and lightweight. It can reduce the cost of lamp housing, lamp pole and infrastructure construction, improve safety, and realize wider application, creating greater business value for customers.
2.Stable、reliable and efficient heat dissipation
It is the industry's first application of composite phase change heat dissipation integrated forming technology in standardized module. Which rapidly removes the heat of COB light source through vapor-liquid phase conversion of heat conducting working medium within phase change chamber, effectively reduces the junction temperature of chip, conforms to heat dissipation requirements of high-power density COB light source, and realizes high reliability, long service life and low light attenuation of the product.
3.Optical glass lens, zero light attenuation, zero electrostatic adsorption
The secondary optical lens is made of glass, resistant to high and low temperatures, with operating temperature of -50 ℃ to 500 ℃. The impact resistance grade can reach up to IK09. It has such characteristics as corrosion protection, salt-alkali resistance, UV resistance and the like. It is free of electrostatic adsorption, and possesses self-cleaning capability. Long-term use will not affect light transmittance due to aging and yellowing.
4.Accurate light distribution and variable color temperature
It conforms to various road standards and achieves industry-leading accurate light distribution and light distribution combination. Through the innovative use of light distribution design integrating irregular chip arrangement and optical glass lens, large width-pole ratio or large spacing-pole ratio can be achieved, the bright and dark areas in the longitudinal and transverse lighting on the road are removed. It improves the light utilization and uniformity on pavement, and effectively reduces glare. The overall lighting design can reduce the cost of lighting poles, infrastructure and other works. It conforms to the application scenarios of large spacing to height ratio of 50m pole spacing and two-way 8-10 lanes (40m road width). The product utilizes single color temperature-adjustable COB light source to achieve continuous adjustment of color temperature between 2700K and 6000K, with uniform light distribution at high and low color temperatures, good light distribution and uniformity, and high cost performance.
5.Multiple intelligent interface
The lamps can be reserved with dimming interfaces (0-5V, 0-10V, PWM) and matched with a variety of intelligent control systems to realize the functions of on-demand lighting, fault monitoring and positioning, power statistics and analysis, etc.

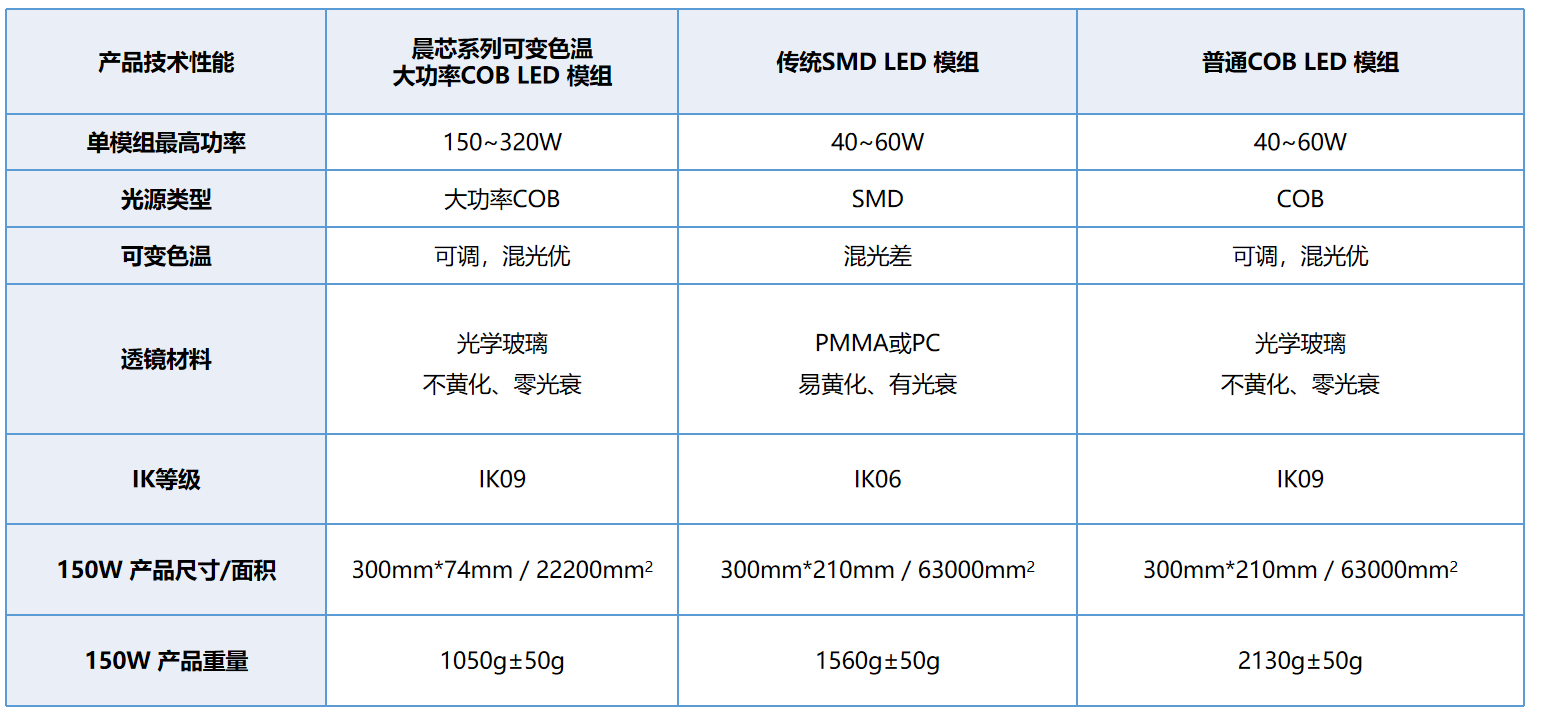

与国内外同类产品或同类技术的比较情况：
晨芯系列可变色温大功率COB LED 模组与国内外同类标准模组在功率、光源、透镜材料和重量等指标上有明显优势。

经济评价分析：
1.项目产品是国家“十三五”科技创新成果，充分依托我国半导体光电技术和产业优势，实现了科技创新和技术提升，有效增加本地区制造产业就业岗位，促进技术专业人才在东北地区创新发展，培育和打造本地龙头企业，以全国为示范和支撑，做优本地品牌，做强中国制造，促进地方经济发展；
2.产品可有效降低市政道路、铁路系统、景观亮化照明采购成本，节省照明建设专项资金，实现更多建设项目，加速城市发展，取得更大收益；
3.项目能使我国继续保持光电子产业在国际的领先水平，对加快我国以光电子产业为代表的高科技产业转型的步伐，促进我国重大技术创新和成果的转移转化都具有十分重要和深远的意义。
1.The project product is the scientific and technological innovation achievement in 13th Five-Year Plan. It fully relies on China's semiconductor optoelectronic technology and industrial advantages to realize scientific and technological innovation and technological improvement, effectively increase the employment of local manufacturing industry, promote the innovative development of technical professionals in Northeast China, cultivate and build local leading enterprises. It takes national demonstrations and supports to improve local brands, strengthen Made-in-China capability, and promote local economic development;
2.The product effectively reduces procurement cost for municipal roads, railway systems and landscape lighting, saves special funds for lighting system, completes more construction projects, accelerates urban development and achieves greater benefits;
3.The project can enable China to continue maintaining the leading level of optoelectronic industry in the world, which is of great importance and far-reaching significance in accelerating the transformation of China's high-tech industry represented by optoelectronic industry and promoting the transfer and transformation of China's major technological innovations and achievements.

实际运用案例和用户评价意见：

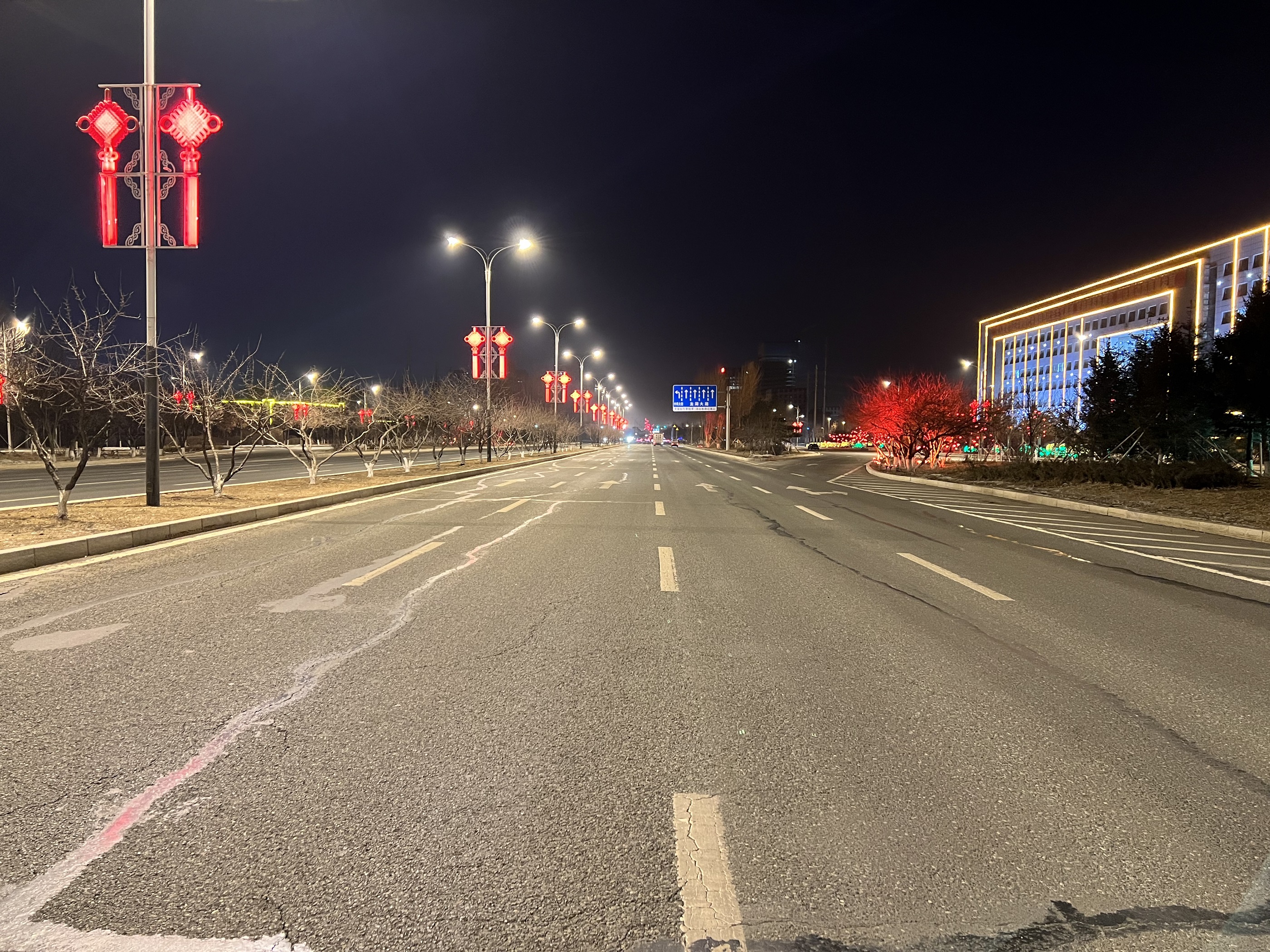

1.实际运用案例1
自2022年12月9日至今，长春龙湖大路路灯照明项目，采用长春长光希达照明技术有限公司研制生产的晨芯系列可变色温大功率COB LED 模组。截止目前使用效果良好，达到了道路照明设计及实际使用要求，打造了低眩光、高均匀度、无虚影现象、节能环保的安全舒适照明光环境。
2.实际运用案例2
自2022年12月21日至今，长春北远达大街路灯照明项目，采用长春长光希达照明技术有限公司研制生产的晨芯系列可变色温大功率COB LED 模组。截止目前使用效果良好，达到了道路照明设计及实际使用要求，解决了原有钠灯眩光严重、道路暗区等影响行车安全的问题，提高了道路照度、照度均匀度，打造了高品质的道路照明效果，保证交通安全，维护社会治安，美化、亮化市容。

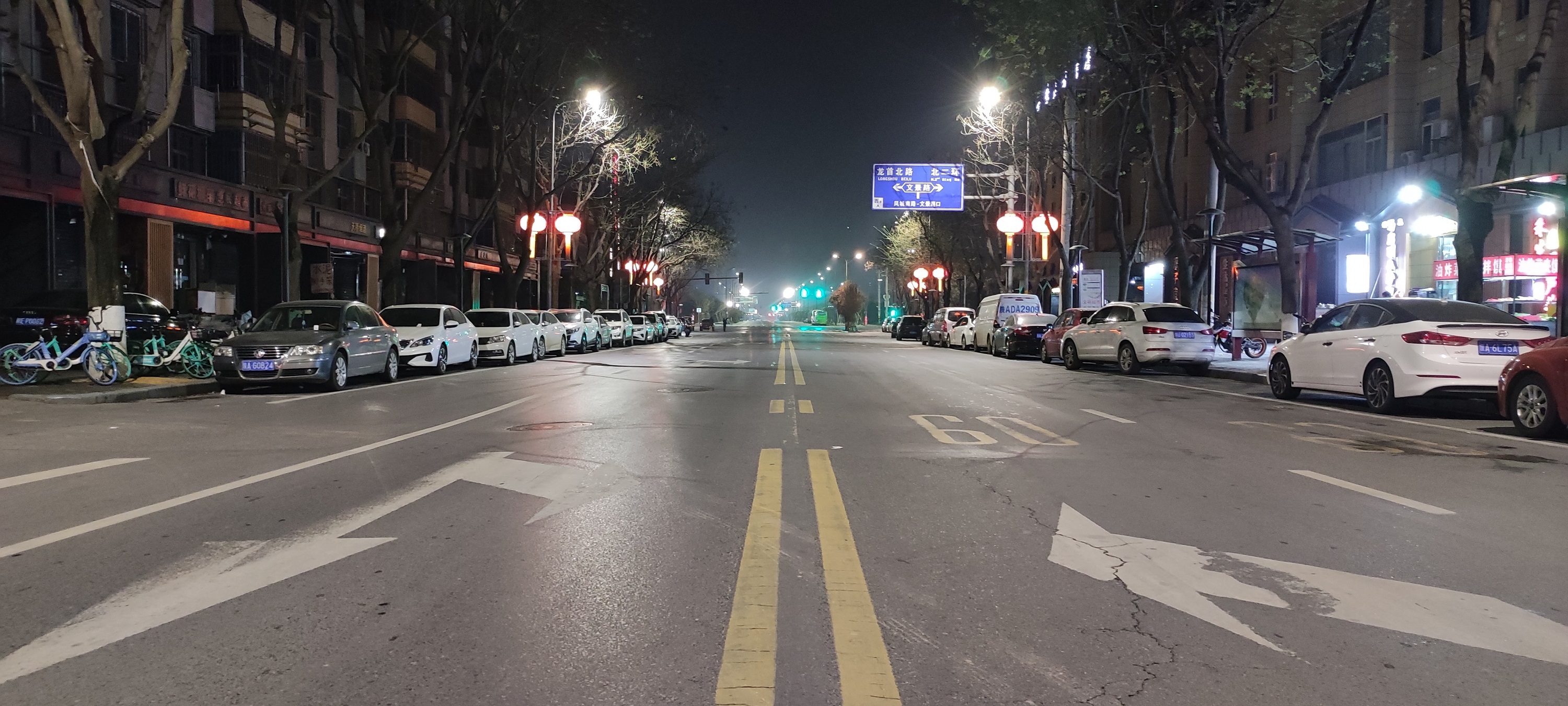

3.实际运用案例3
自2023年3月24日至今，陕西省西安市凤城南路路灯照明项目，采用长春长光希达照明技术有限公司研制生产的晨芯系列可变色温大功率COB LED 模组。使用效果良好，达到了道路照明设计及实际使用要求，解决了40~42米大杆距道路照明均匀度低的问题，去除沿行车方向照明亮暗区，为行人、车辆提供照明安全保障。

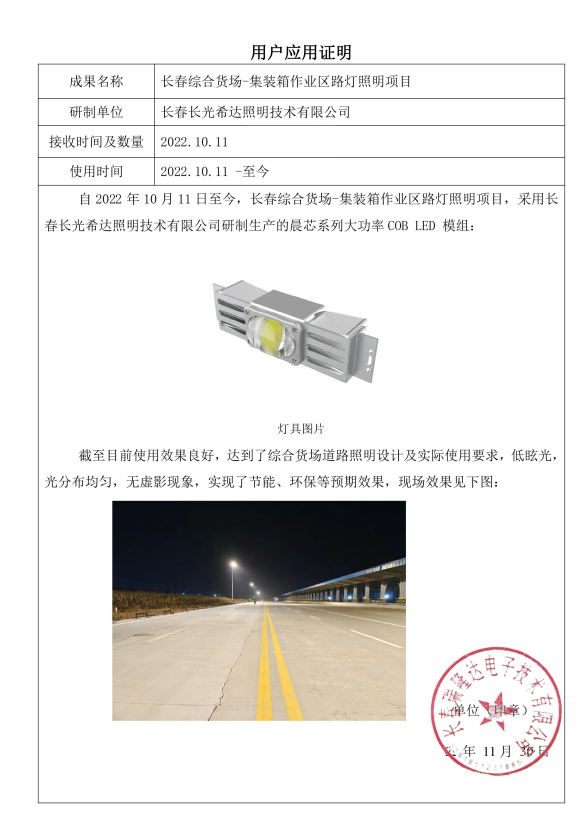

4.实际运用案例4
见用户应用证明。

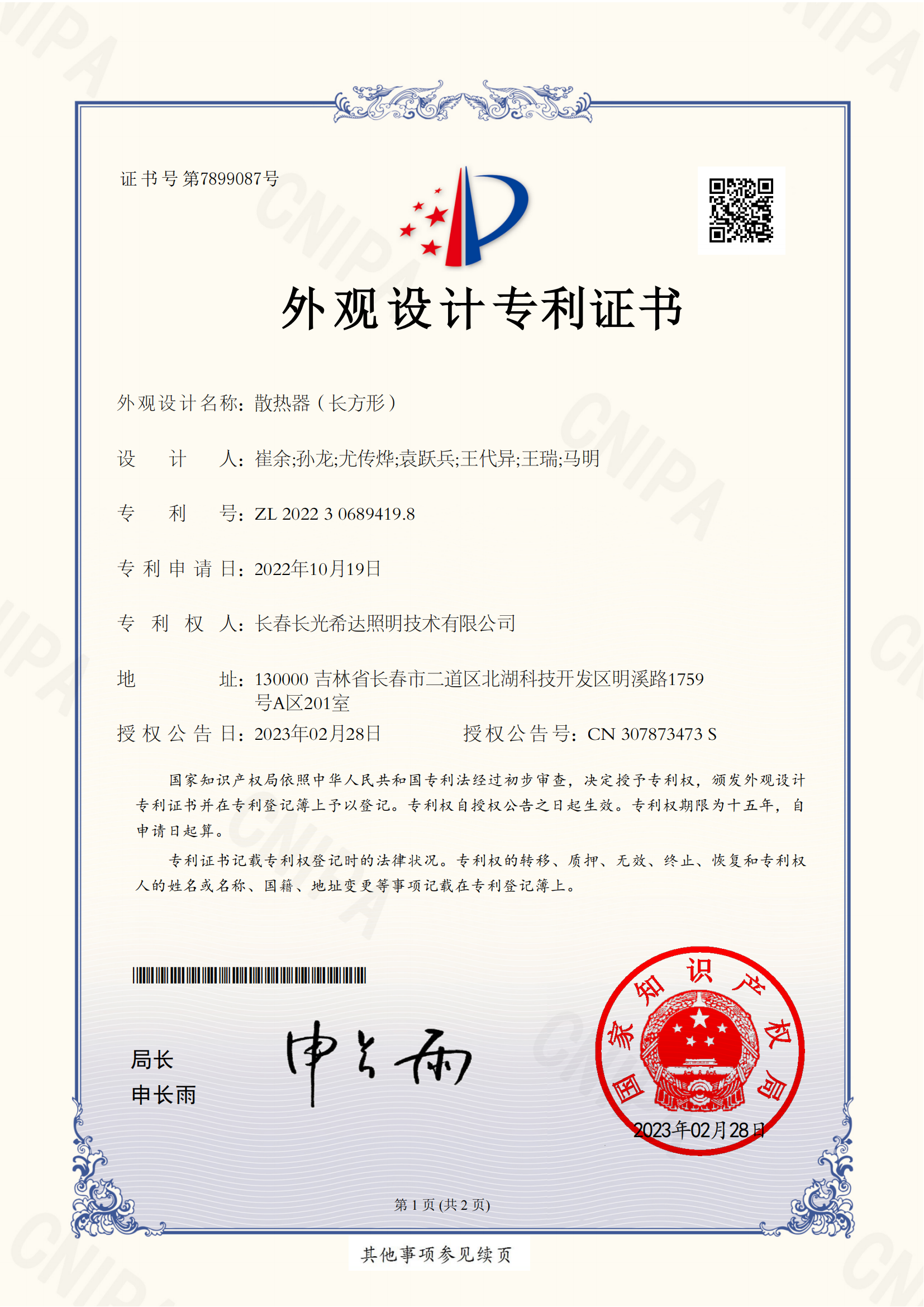

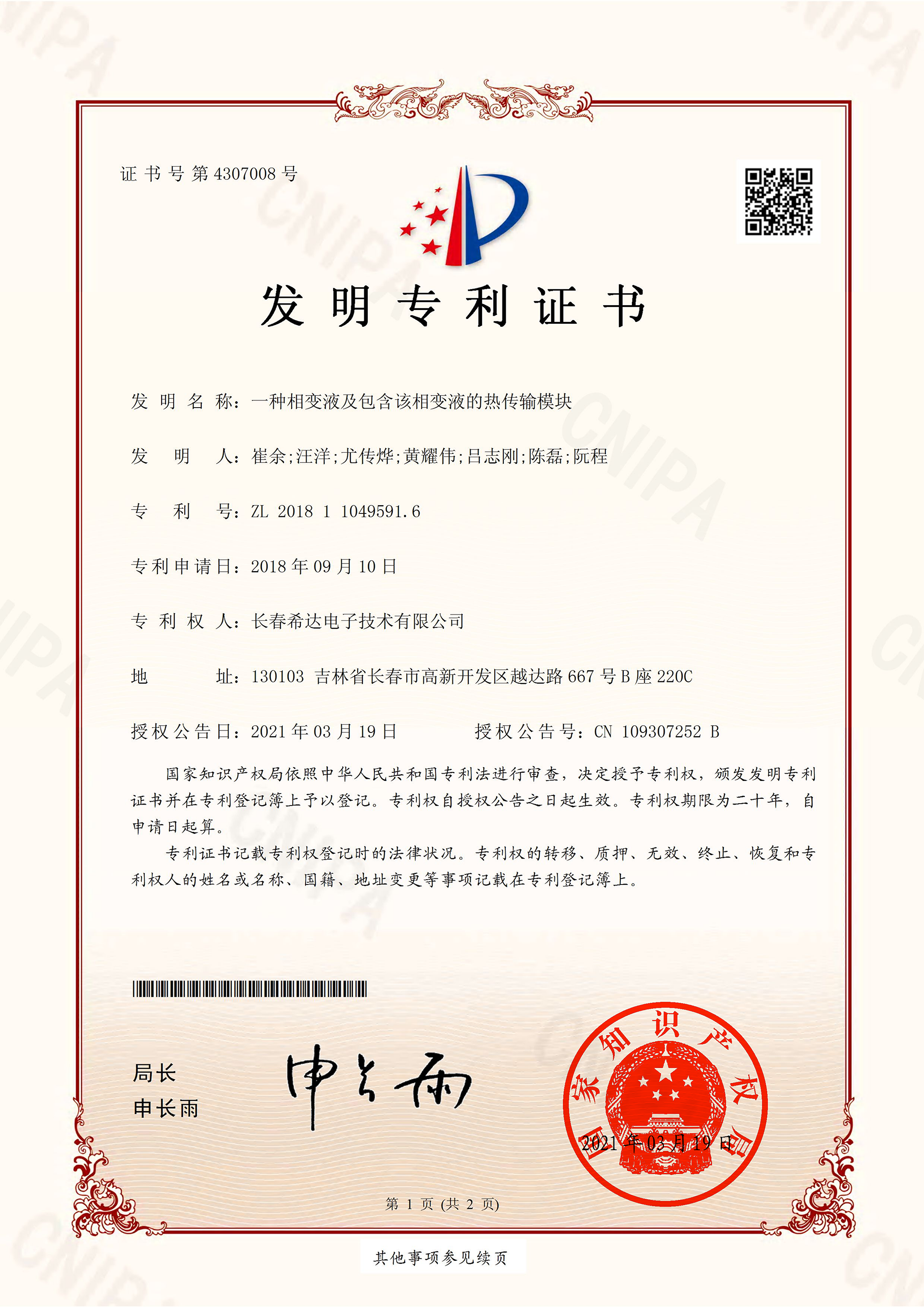

获奖、专利情况：
晨芯系列可变色温大功率COB LED 模组授权专利15项，并荣获第十二届吉林省照明科学技术奖-照明产品奖一等奖。

是否有“智能设计”：
灯具可预留有调光接口（0-5V、0-10V、PWM），可以搭配多种智能控制系统，实现按需照明、故障监测与定位、电量统计分析等功能，单光源色温可调（2700-6000K）。客户还可根据使用场所和用户需要自由选配智能组件，满足智慧工厂、数字交通和城市建设的需要。 The lamps can be reserved with dimming interfaces (0-5V, 0-10V, PWM) and matched with a variety of intelligent control systems to realize the functions of on-demand lighting, fault monitoring and positioning, power statistics and analysis, etc., and the color temperature of single light source can be adjusted (2700-6000K). Moreover, customers are also able to freely select intelligent components based on service locations and requirements to conform to the requirements of smart factories, digital transportation and urban construction.

申报单位介绍：
希达电子成立于2001年，是依托于中科院长春光机所建立的，集研发、生产、销售、服务及研究生培养为一体的国家级高新技术企业，是专业从事创新性技术研究的COB LED 显示与LED照明产品专业制造商，公司总部位于长春，以集团化方向发展，设有北京子公司、杭州子公司、佛山子公司、深圳分公司。公司集尖端的技术、先进的设备、规模化生产及现代化管理为一体，先后荣获中国光电行业“影响力企业”、吉林省质量奖及吉林省绿色工厂称号，被评为国家级专精特新“小巨人”企业及吉林省企业技术中心。 公司拥有一支以中科院专家为核心的近百人的研究团队，拥有吉林省LED显示显像科技创新中心、吉林省大型科学仪器共享服务平台、国家认可委员会CNAS认证实验室、中科院“电路与系统”专业的硕士、博士培养点、博士后科研工作站及博士后创新实践基地。 公司授权专利两百余项，其中授权发明专利90项，获得中国专利优秀奖5项，国际发明展览会金奖1项，20项软件著作权，发表学术论文40余篇。荣获中照照明奖-科技创新奖一等奖、二等奖、三等奖各一项，先后获得广州国际博览会阿拉丁神灯奖“十大产品奖”，“十大技术奖”。 公司通过中科院“璀璨行动”、“十三五”国家重点研发计划项目成果转化，形成具有自主知识产权的核心光学器件、散热及整灯集成技术，完成大功率、大空间单光源LED 照明系列化产品，填补市场空白，树立我国在大功率单光源LED照明领域主导地位；公司全资子公司——长光希达照明技术有限公司，建成大功率、大空间COB照明产品组装、老化、单灯100%检测自动化流水生产线，产能30万套/年。“长光希达”牌LED照明灯具被认定为吉林省名牌产品，产品在市政道路、工矿企业、铁路、机场等实现广泛应用，满足国民经济主战场的巨大需求，引领行业高质量发展，为我国“双碳”目标实现注入新动力！
