申报项目名称(英文):1500W Conduction Cooling with High Voltage Output
申报单位名称(中文):明纬(广州)电子有限公司
申报单位名称(英文):Guangzhou Meanwell Electronics Co Ltd
完成时间:2021-04-01
进入市场时间:2021-11-01
综合介绍或申报理由: UHP-1500-HV系列是一款1500W单组输出传导冷却型电源供应器,高度仅41mm。采用90~264VAC全范围输入,具有115V/230V和380V输出电压。除效率高达95.5%外,整系列在-30 ~70°C的自然风冷无风扇运行下工作。UHP-1500具有完整的保护功能和5G抗振功能;符合国际安全法规规定,如TUV BS EN/EN62368-1,
UL62368-1。UHP-1500系列提供各种工业应用和直流供电高性能电源解决方案。
UHP-1500-HV series is a 1500W single-output slim type power supply with 1U 41mm of low profile design. Adopting the full range 90~264VAC input, the entire sereis provides an output voltage line of 115V/230V and 380V. In addition to the high efficiency up to 95.5%, that the whole series operates from -30 ~70°C capability. It is complied with the international safety regulations such as TUV BS EN/EN62368-1,UL62368-1.
UHP-1500-HV series serves as a high performance power supply solution for warious industrial and DC centralized bus
applications.
产品缩略图:
相关产品图片:
项目宣传视频:

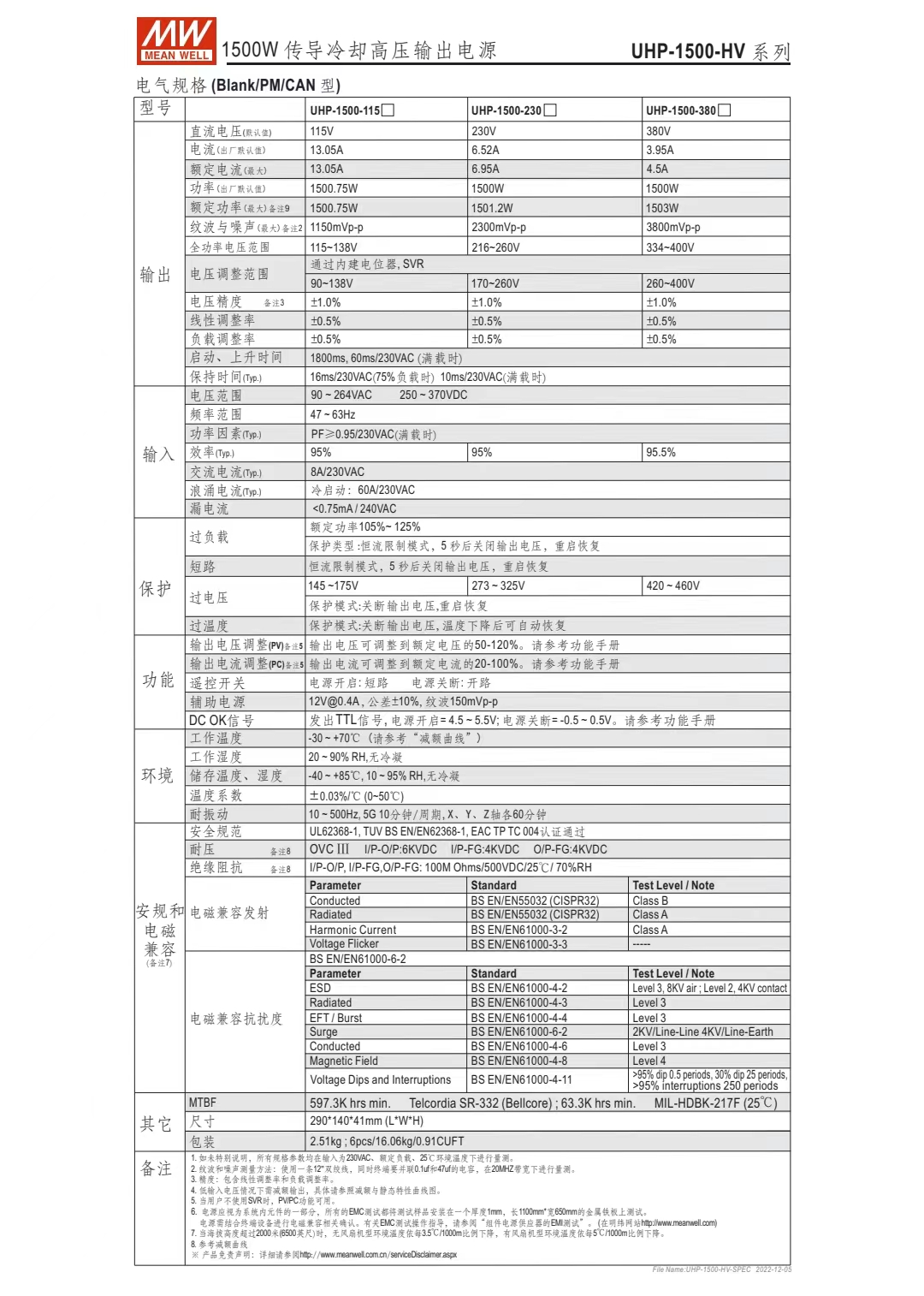

主要技术参数: 115/230/380V高压输出 115/230/380V High voltage output 无风扇设计传导冷却 Fanless and conduction-cooled design 窄面宽高度仅41mm Slim and 1U Low profile(41mm) 主动PFC功能 Built-in active PFC function 12V/0.4A辅助电源输出 DC 12V/0.4A auxiliary power 输出电源和电流值可调 Output voltage and constant current level programmable(PV/PC) 工作高度可达2000米 Operating altitude up to 2000 meter 可选择PMBus和CANBus通讯协议 Optional PMBus or CANBus protocol 5年保固 5years warranty
技术及工艺创新要点: UHP-1500-HV系列超薄尺寸,无风扇传导散热,具有完整的保护功能和5G抗振功能,;符合国际安全法规规定。UHP-1500-HV系列提供各种工业应用和直流供电高性能电源解决方案。 UHP-1500-HV series is slim type power supply with 1U 41mm of low profile design. Fanless and conduction-cooled design. It is complied with the international safety regulations. UHP-1500-HV series serves as a high performance power supply solution for warious industrial and DC centralized bus applications.
