发布时间:2024/3/26 20:30:00
参赛组别:院校组 College group
申报项目名称(中文):翡翠之窗——博物馆灯光设计
申报项目名称(英文):Window of Jadeite
申报单位(或个人):河北东方学院-曾治桐、芦朔、李晓楠(指导老师:王峥、蔡浩洁)
项目实施状态:未落地/无实物 Not landing
综合介绍或申报理由:
“翡翠之窗”翡翠博物馆的设计主要为创造一个深具教育性与魅力的空间,让游客沉浸在翡翠的神奇世界中。通过精心策划的展览,我们将带领观众踏上一场穿文化的旅程,从翡翠的起源和形成,探寻它在不同文化中的象征意义,直至现代翡翠工艺的发展和应用。同时,利用先进的科技手段,如虚拟现实和增强现实,我们将为观众打造沉浸式的互动体验。展览的灯光设计是整个展览体验中至关重要的一部分。我们致力于通过精心设计的灯光布局和灯光效果,为游客营造出一个富有神秘感和令人心驰神往的氛围。在翡翠展览区域,灯光将被精心调控,以突出展品的独特美感和色彩,让每一块翡翠都闪耀着自己的光芒。同时,我们将运用灯光来营造出不同情境和氛围,以增强观众的情感共鸣和沉浸感。通过灵活运用灯光技术,我们将为观众带来一场光影交错、身临其境的翡翠之旅,使他们能够在灯光的照耀下,更加深入地感受到翡翠的神秘与美丽。
The design of the "Jade Window" Jade Museum is mainly aimed at creating a space that is deeply educational and charming, allowing tourists to immerse themselves in the magical world of jade. Through carefully planned exhibitions, we will lead the audience on a journey through culture, exploring the symbolic significance of jade in different cultures from its origin and formation, to the development and application of modern jade craftsmanship. Meanwhile, utilizing advanced technological means such as virtual reality and augmented reality, we will create an immersive interactive experience for the audience. The lighting design of the exhibition is a crucial part of the entire exhibition experience. We are committed to creating a mysterious and captivating atmosphere for tourists through carefully designed lighting layouts and effects. In the jade exhibition area, the lighting will be carefully regulated to highlight the unique beauty and color of the exhibits, allowing each piece of jade to shine with its own brilliance. At the same time, we will use lighting to create different situations and atmospheres to enhance the audience's emotional resonance and immersion. By flexibly utilizing lighting technology, we will bring the audience an immersive journey of jade with intertwined light and shadow, allowing them to deeply experience the mystery and beauty of jade under the illumination of lighting.

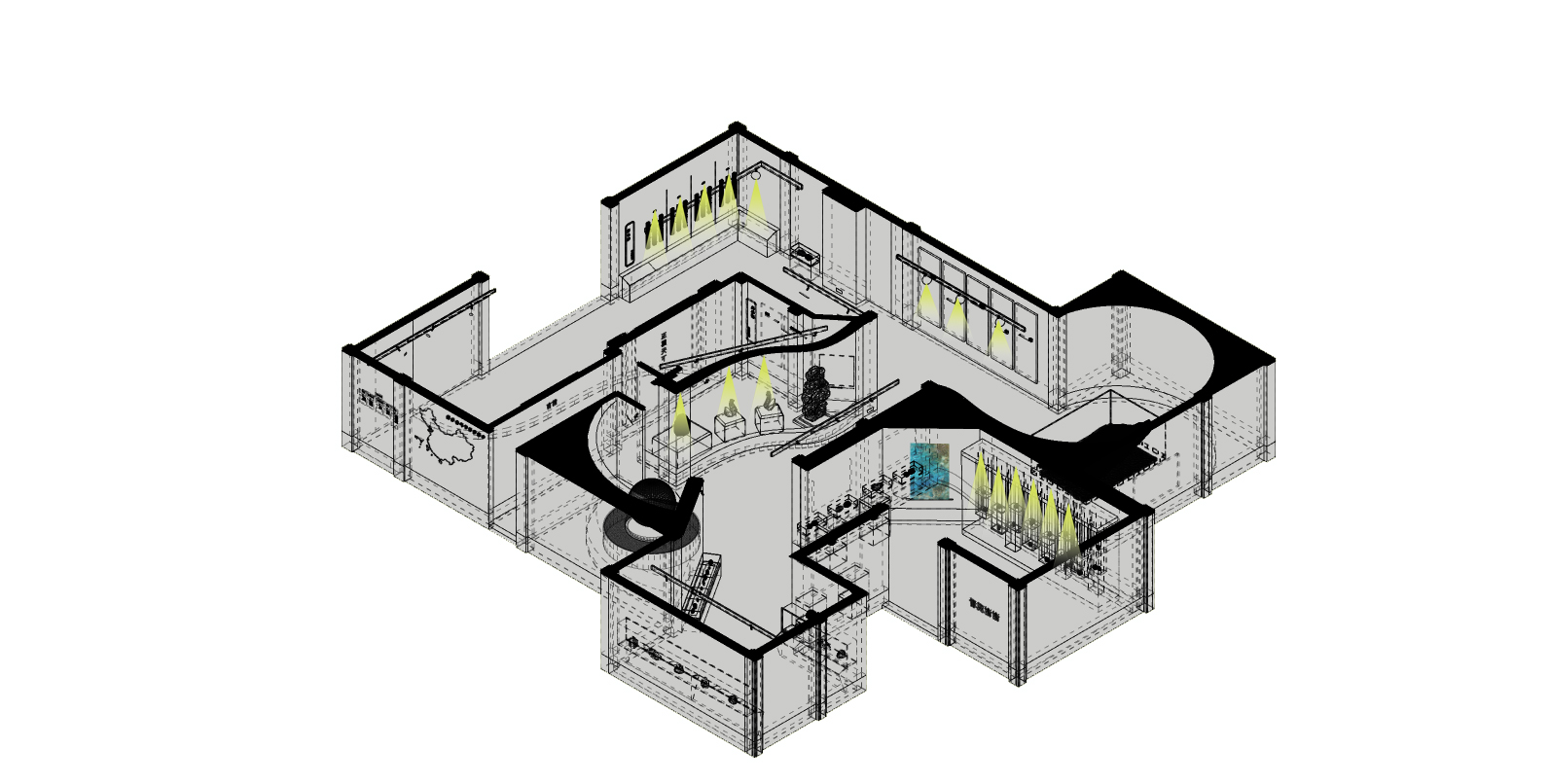

项目缩略图:

主要参数:

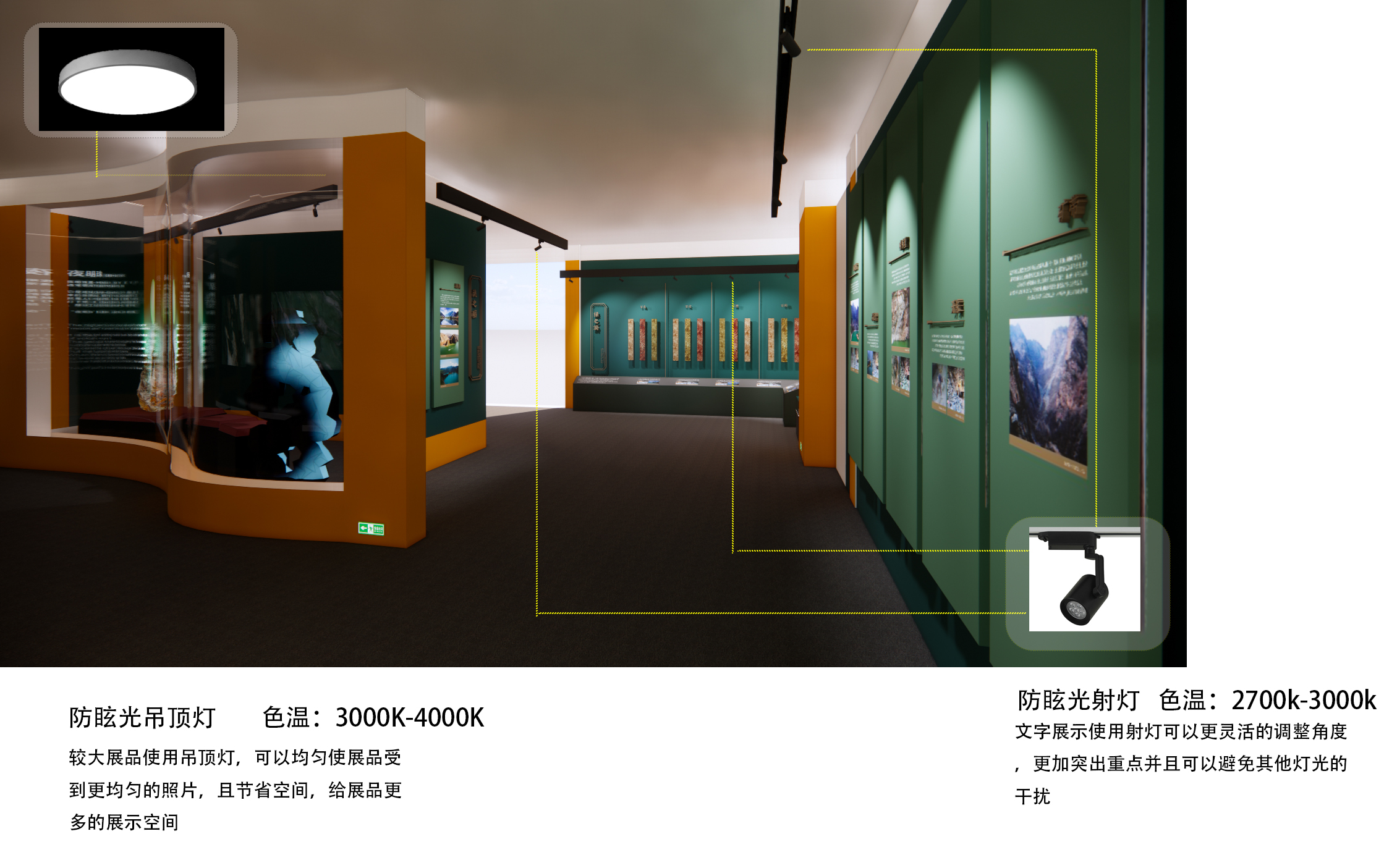

1. 类型:防眩光吊顶灯 色温:3000K-4000K 显色指数:70-90 功率:8 防护等级:IP20 寿命:25000小时 光通量:510Im 电压:220-240v 灯体材料:白色玻璃灯罩,锌合金材质

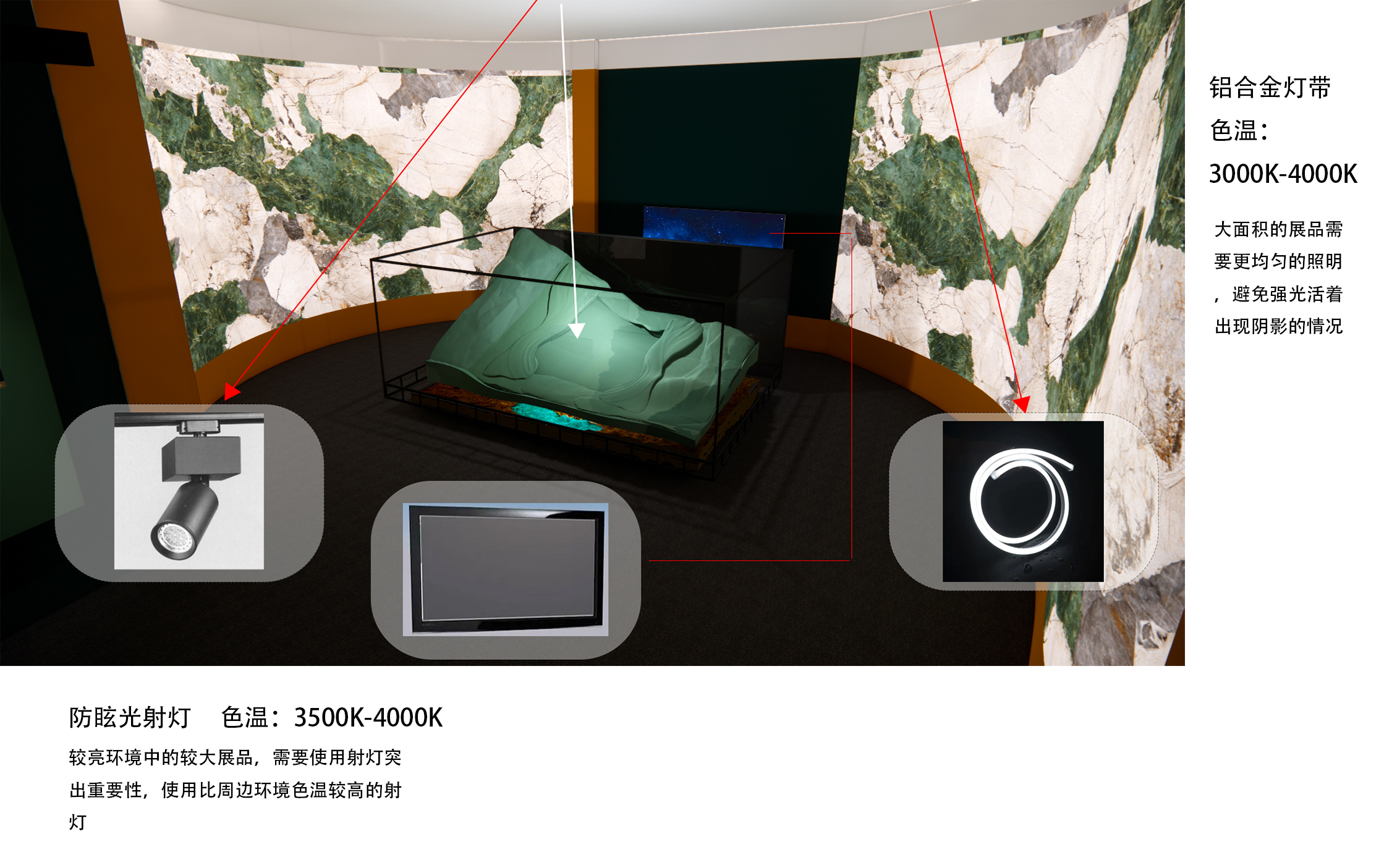

2. 类型:防眩光射灯 色温:3500K-4000K 显色指数:80-90 功率:7瓦-9瓦 防护等级:IP20 寿命:20000小时 光通量:430Im 电压:220-240v 灯体材料:白色/黑色注塑外壳,内铝散热
申报单位

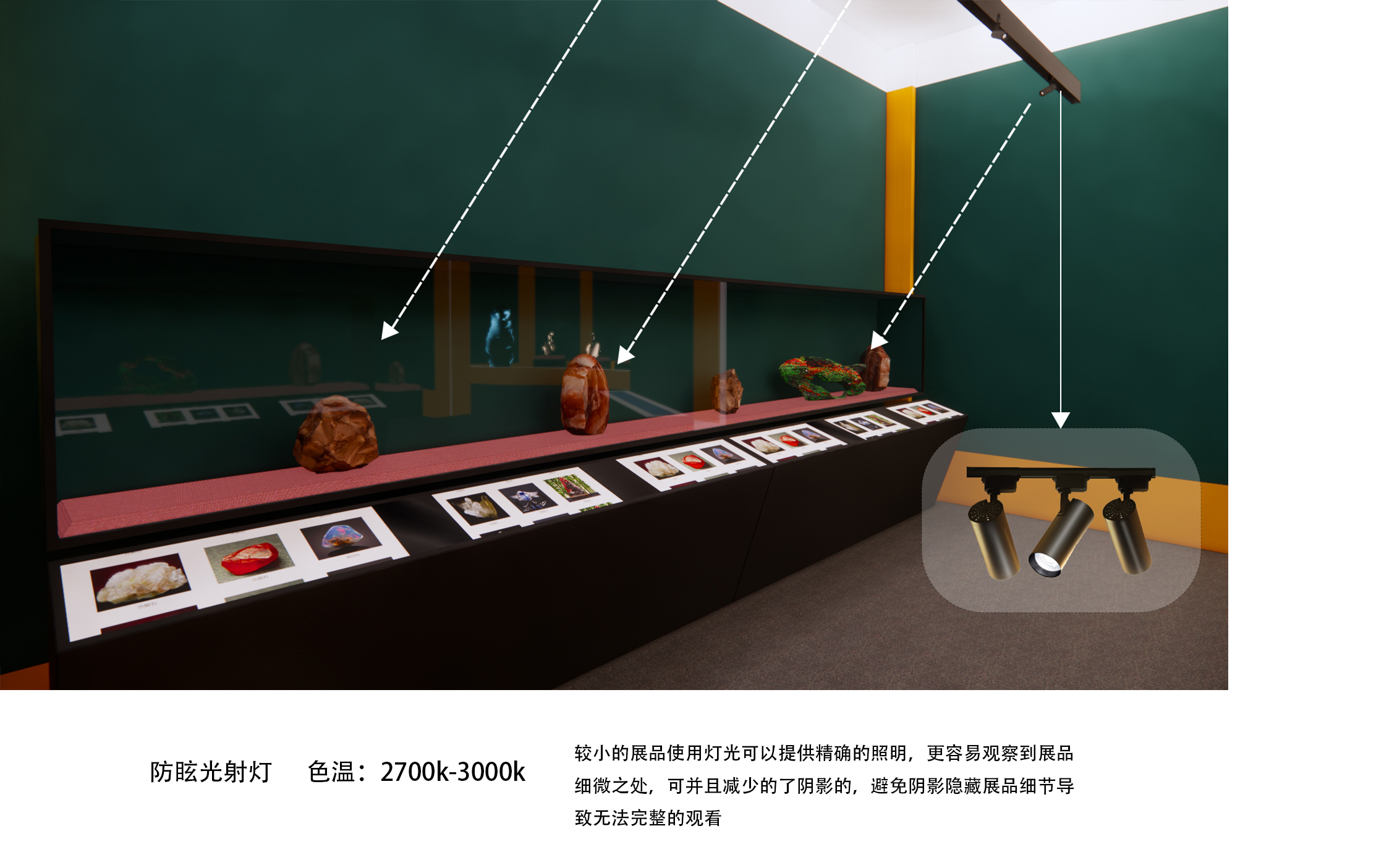

3. 类型:防眩光射灯 色温:2700k-3000k 显色指数:≥90功率:3瓦-5瓦防护等级:IP20寿命:30000小时光通量:410Im 电压:220-240灯体材料:白色/黑色注塑外壳,内铝散热,玻璃灯罩
4.类型:铝合金灯带 材质:亚克力灯罩铝合金外壳 尺寸:宽度10mm、15mm,长度可进行修改导线类型:压线 色温:3000K-4000K 功率:3瓦-5瓦 显色指数:≥80
1. Type: Anti-glare ceiling light Color temperature: 3000K-4000K Color rendering index: 70-90 Power: 8 Protection level: IP20 Lifespan: 25000 hours Luminous flux: 510Im Voltage: 220-240v Lamp body material: white glass lampshade, zinc alloy material
2. Type: Anti-glare spotlight Color temperature: 3500K-4000K Color rendering index: 80-90 Power: 7 watts-9 watts Protection level: IP20 Lifespan: 20000 hours Luminous flux: 430Im Voltage: 220-240v Lamp body material: white/black injection molded shell, inner aluminum heat dissipation
Reporting unit
3. Type: Anti-glare spotlight Color temperature: 2700k-3000k Color rendering index: ≥90 Power: 3 watts-5 watts Protection Grade: IP20 Lifespan: 30000 hours Luminous flux: 410Im Voltage: 220-240 Lamp body material: white/black injection molded shell, inner aluminum heat dissipation, glass lampshade
4. Type: Aluminum alloy strip light Material: Acrylic lampshade Aluminum alloy shell Size: width 10mm, 15mm, length can be modified Wire type: crimping Color temperature: 3000K-4000K Power: 3 watts-5 watts Color rendering index: ≥80
创新要点:
“翡翠之窗”翡翠博物馆设计的创新要点体现在多个方面,首先是采用了前沿科技与传统文化相结合的展示手法。我们将利用虚拟现实(VR)技术,为观众提供沉浸式的体验,让他们仿佛置身于翡翠的诞生地和工艺工坊之中,亲身感受挖掘、雕刻等各个环节的奇妙过程。其次,我们将设计创新的互动展品,包括触摸屏展示、数字互动游戏等,让观众可以动手参与,加深对翡翠文化的理解和体验。翡翠博物馆的灯光设计是展览中的一大创新亮点。我们采用了最新的智能灯光技术,通过灯光的巧妙运用,将展品呈现得更加生动鲜活。在翡翠展示区域,我们将运用可调光灯光系统,根据展品的特性和情境变化,灵活调整灯光色温和亮度,使每一块翡翠都能够展现出最佳的光影效果。通过创新的灯光设计,我们将为观众带来一场全新的感官体验。
The innovative points of the design of the "Window of Jadeite" Jadeite Museum are reflected in multiple aspects. Firstly, it adopts a display technique that combines cutting-edge technology with traditional culture. We will use virtual reality (VR) technology to provide viewers with an immersive experience, making them feel as if they are in the birthplace and craftsmanship workshop of jade, experiencing the wonderful process of excavation, carving, and other aspects firsthand. Secondly, we will design innovative interactive exhibits, including touch screen displays, digital interactive games, etc., so that viewers can participate hands-on and deepen their understanding and experience of jade culture. The lighting design of the Jade Museum is a major innovative highlight in the exhibition. We have adopted the latest intelligent lighting technology, and through the clever use of lighting, the exhibits are presented more vividly and vividly. In the jade display area, we will use a dimmable lighting system to flexibly adjust the color temperature and brightness of the light according to the characteristics and contextual changes of the exhibits, so that each piece of jade can display the best light and shadow effect. Through innovative lighting design, we will bring a brand new sensory experience to the audience.
申报单位(或个人)介绍:
河北东方学院,位于河北省廊坊市,是一所全日制民办普通本科高等学校。 学校前身是2009年2月16日成立的廊坊东方职业技术学院。2016年1月12日,经教育部批准升格为普通本科高校,正式更名为河北东方学院。
