综合介绍或申报理由：
无蓝光，高显色，无频闪，低眩光，节能环保的护眼照明灯具 No blue light, high color rendering, no flicker, low glare, energy-saving and environmentally friendly eye protection lighting fixtures

产品缩略图：

相关产品图片：

主要技术参数：
1.教室灯 单面出光，配防眩光格栅网
2.额定功率：36W，220V 50HZ,显色指示:>90，5000K.
3.UGR<16,蓝光危害等级为：RG0
4.额定功率：36W，输入电压：220-240V,50Hz
5.带调光功能，安装高度：3m，感应距离：5m， 感应时间可调，LUX可调
6.带恒照度功能，根据外界环境亮度调节灯的亮度
7.微动感应功能
1. Classroom light, single-sided light emitting, equipped with anti-glare grille
2. Rated power: 36W, 220V 50HZ, color indication: >90, 5000K.
3.UGR<16, blue light hazard level: RG0
4. Rated power: 36W, input voltage: 220-240V, 50Hz
5. With dimming function, installation height: 3m, sensing distance: 5m, sensing time is adjustable, LUX is adjustable
6. With constant illumination function, the brightness of the lamp can be adjusted according to the brightness of the external environment.
7.Micro-motion sensing function

技术及工艺创新要点：
技术优势
教室护眼灯具有防眩光、上下双向发光、高品质照明和节能环保等多个技术优势。这些优点不仅有助于保护学生的视力健康，还能提高学生的学习效果和质量 。
强大的防眩光功能：LED教室护眼格栅灯通过专业光学设计，采用小格栅控制出光角度，能有效地降低眩光，提供优质视觉体验。
上下双向发光：背部透光设计的LED格栅灯实现上下都能发出光线，使得教室上下部照度均匀，避免出现明显的明暗对比，从而提升整个教室的光环境舒适度。
高品质的照明：高品质的教室护眼灯在课桌照度及照度均匀度方面高于国家标准，同时配备专用的黑板灯，保证黑板照明的照度和均匀度，且避免了光线直射与频闪问题。
节能环保：LED教室护眼灯相较于传统照明灯对环境污染小，更符合现代社会对于节能环保的需求。
智能感应调光：每只教室灯配备照度传感器，根据书桌亮度自动调节灯光，保持桌面照度恒定。这样无论是靠近窗户还是远离窗户的学生，其书桌照度均能得到保证。
总的来说，教室护眼灯的技术优势包括了防眩光、上下双向发光、高品质照明以及节能环保等。
Technical advantages
Classroom eye protection lamps have many technical advantages such as anti-glare, up and down two-way lighting, high-quality lighting, energy saving and environmental protection. These advantages not only help protect students' visual health, but also improve students' learning effects and quality.
Powerful anti-glare function: LED classroom eye protection grille lights adopt professional optical design and use small grilles to control the light angle, which can effectively reduce glare and provide a high-quality visual experience.
Up and down bi-directional light emission: The LED grille light with translucent back design can emit light both up and down, making the upper and lower parts of the classroom evenly illuminated and avoiding obvious contrast between light and dark, thus improving the comfort of the light environment of the entire classroom.
High-quality lighting: The high-quality classroom eye protection lamp is higher than the national standard in terms of desk illumination and illumination uniformity. It is also equipped with a dedicated blackboard light to ensure the illumination and uniformity of the blackboard illumination and avoid direct light and stroboscopic light. question.
Energy saving and environmental protection: Compared with traditional lighting lamps, LED classroom eye protection lamps cause less environmental pollution and are more in line with the needs of modern society for energy saving and environmental protection.
Intelligent induction dimming: Each classroom lamp is equipped with an illumination sensor, which automatically adjusts the light according to the brightness of the desk to keep the desktop illumination constant. In this way, whether students are close to the window or far away from the window, the illumination of their desks can be guaranteed.
In general, the technical advantages of classroom eye protection lights include anti-glare, up and down two-way lighting, high-quality lighting, energy saving and environmental protection.
工艺创新要点
快速安装组合结构：这一特点让教室灯的安装过程变得简单快捷，提高了效率。
电源波动深度小于0.47%和防眩光设计：这些设计旨在确保视觉舒适性，降低眼部疲劳。
直下式出光设计和5000K色温舒适设计：这有助于提供均匀且自然的光线，使学习环境更加宜人。
智能化程度：包括可选的调光调色方案，以及全光谱高显指、高特殊显色R9要求，以满足不同的照明需求。
此外，教室护眼格栅灯还采用了多层防眩透光面板，抗蓝光设计，以及一体化非拼接光学透镜来提升灯光质量和保护使用者的眼睛。
总的来说，这些创新要点不仅提升了产品的实用性，也增强了用户体验，有助于创造一个更加健康舒适的学习环境
Key points of process innovation
Quick installation combination structure: This feature makes the installation process of classroom lights simple and fast, improving efficiency.
Power fluctuation depth less than 0.47% and anti-glare design: These designs are designed to ensure visual comfort and reduce eye fatigue.
Direct light design and 5000K color temperature comfortable design: This helps provide even and natural light, making the learning environment more pleasant.
Degree of intelligence: including optional dimming and color schemes, as well as full-spectrum high CRI and high special color R9 requirements to meet different lighting needs.
In addition, the classroom eye protection grille light also uses a multi-layer anti-glare translucent panel, an anti-blue light design, and an integrated non-spliced optical lens to improve the light quality and protect the user's eyes.
Overall, these innovative points not only improve the practicality of the product, but also enhance the user experience, helping to create a healthier and more comfortable learning environment.

实际运用案例和用户评价意见：

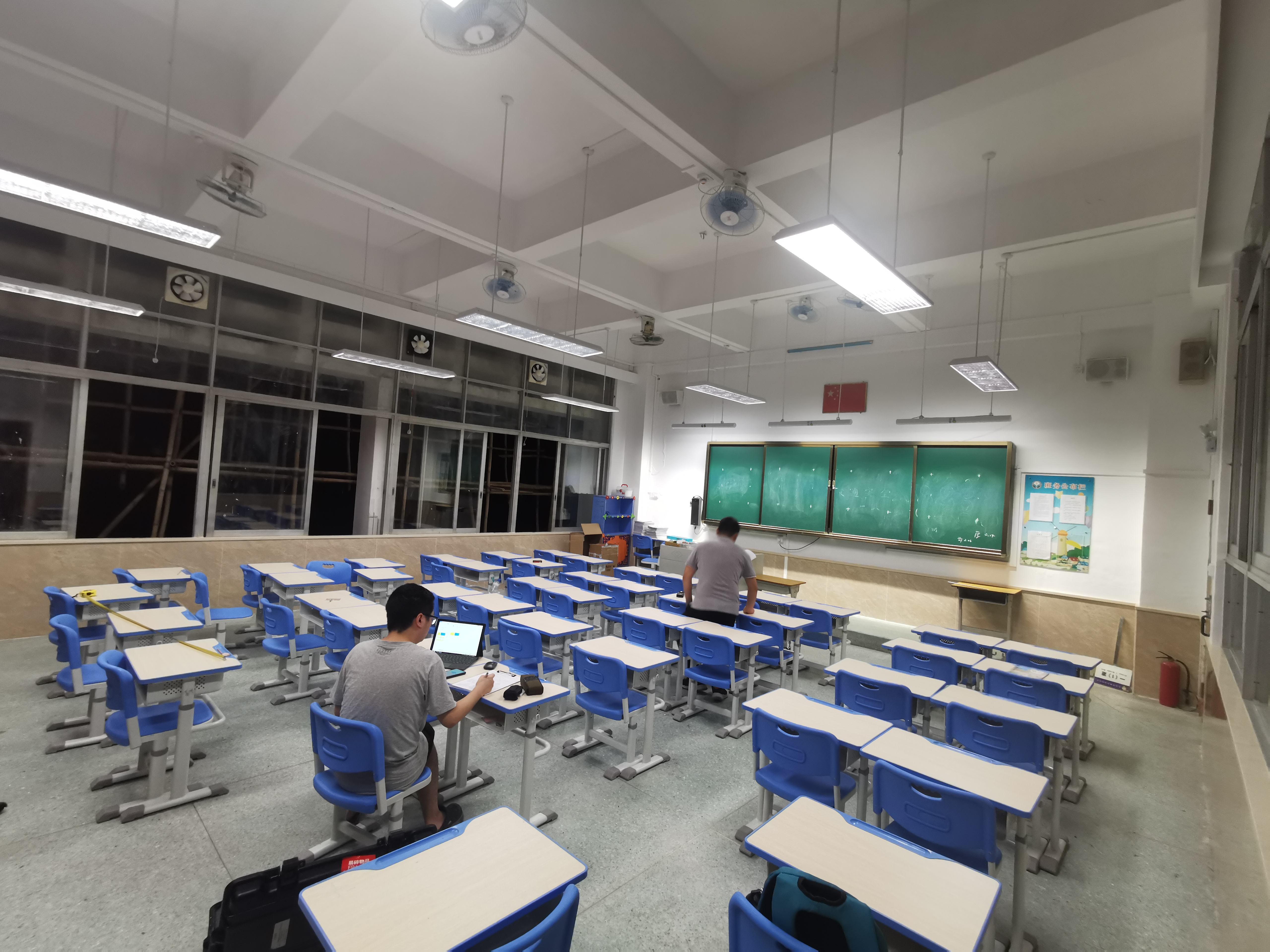

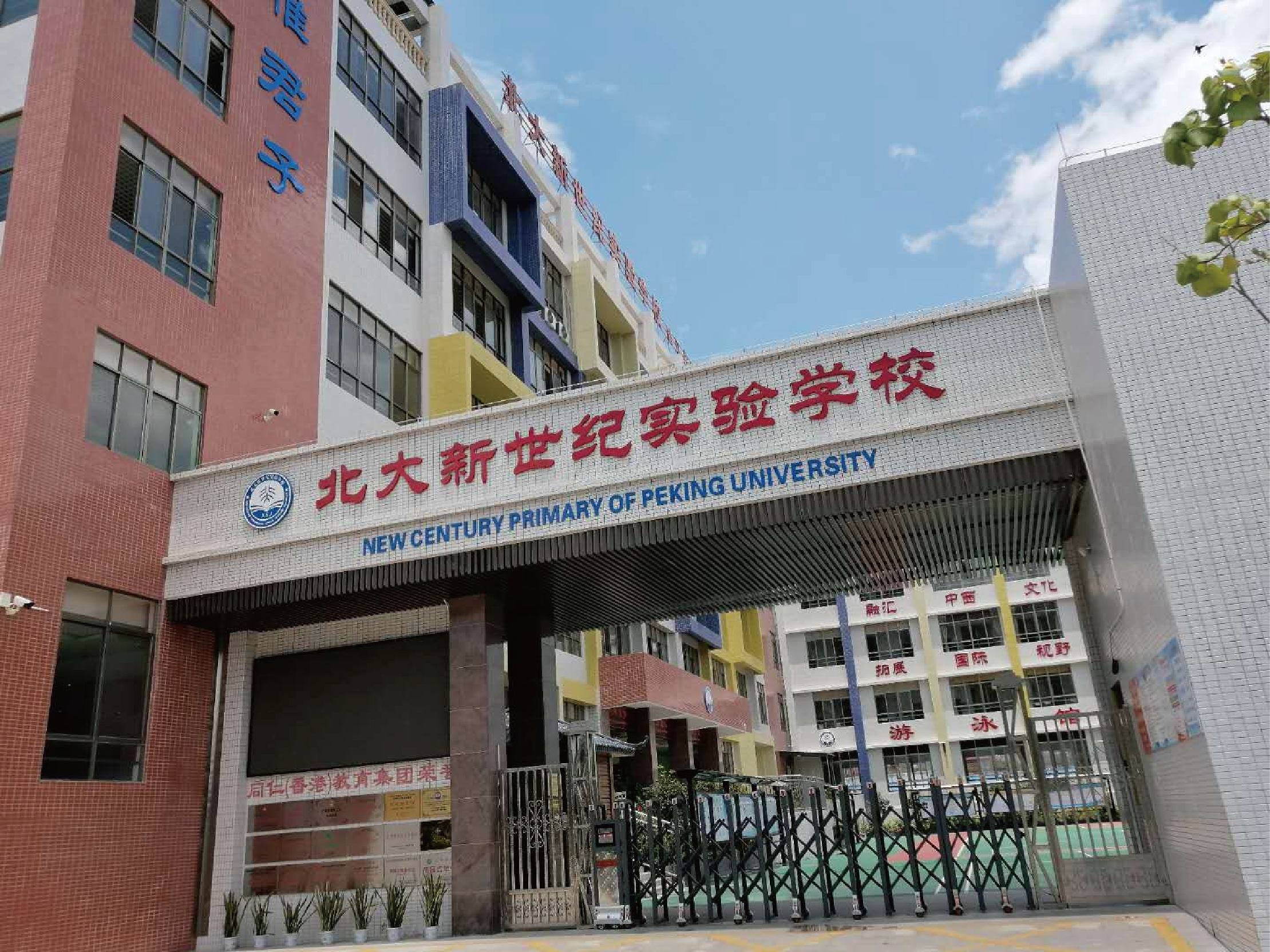

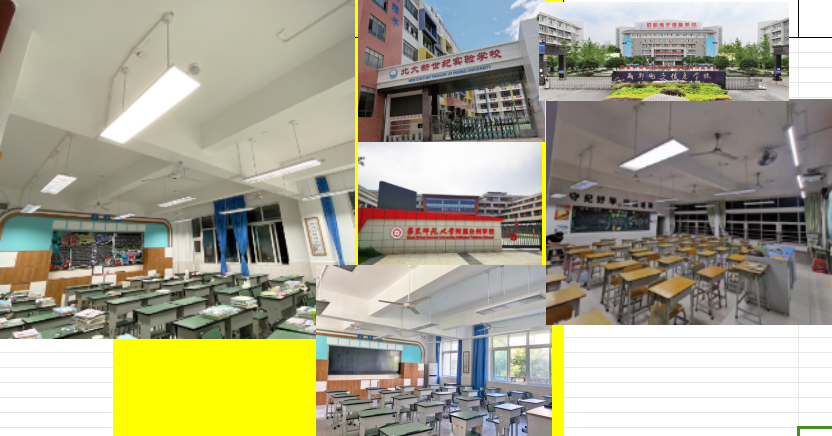

全国各地两百多个校园改造安装，反馈优良。
More than 200 campuses have been renovated and installed across the country, and the feedback has been excellent.

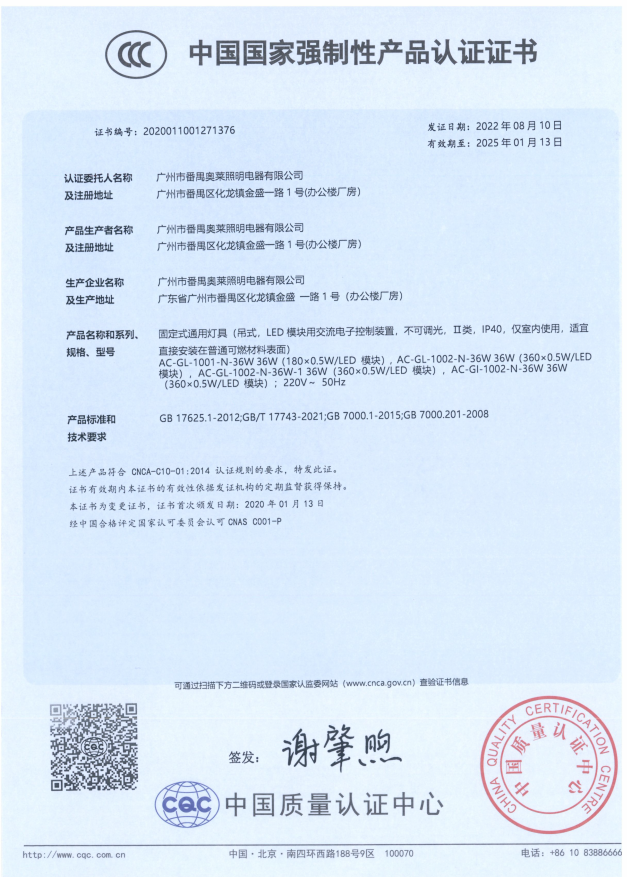

获奖、专利情况：
实用新型
Utility model

申报单位介绍：
奥莱创办于1999年拥有超10万平方米的生产基地， 分布在广州，宁波，越南，是一家集研发 生产 销售与一体的高新技术企业， 目前拥有各项专利230 多项，其中国内发明专利9项，国外发明专利2 项， 通过ISO14001：2004环境管理体系认证、ISO9001国际质量体系认证、 ISO45001:2018职业健康安全管理体系认证， GB/T29490-2013 知识产权管理体系认证。 产品已取得防爆合格证 CQC CCC、CE、VDE、TUV UL ETL等认证。 主营智能传感器及各种低碳智能节能照明解决方案， 致力为全球智慧节能传感领域、智慧校园健康照明节能领域、 工业智能节能照明领域、景观亮化节能领域，提供一站式的服务.
