综合介绍或申报理由：

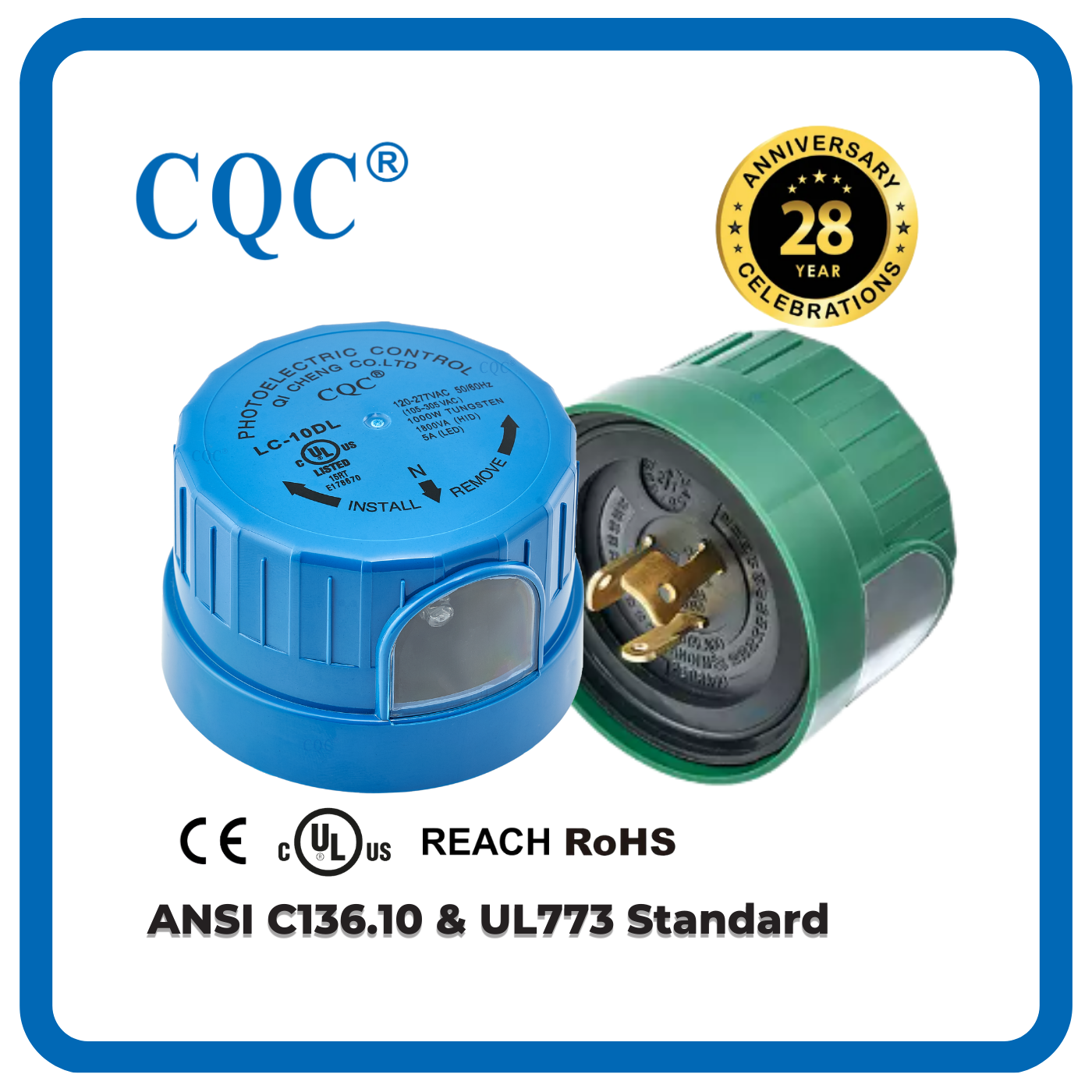

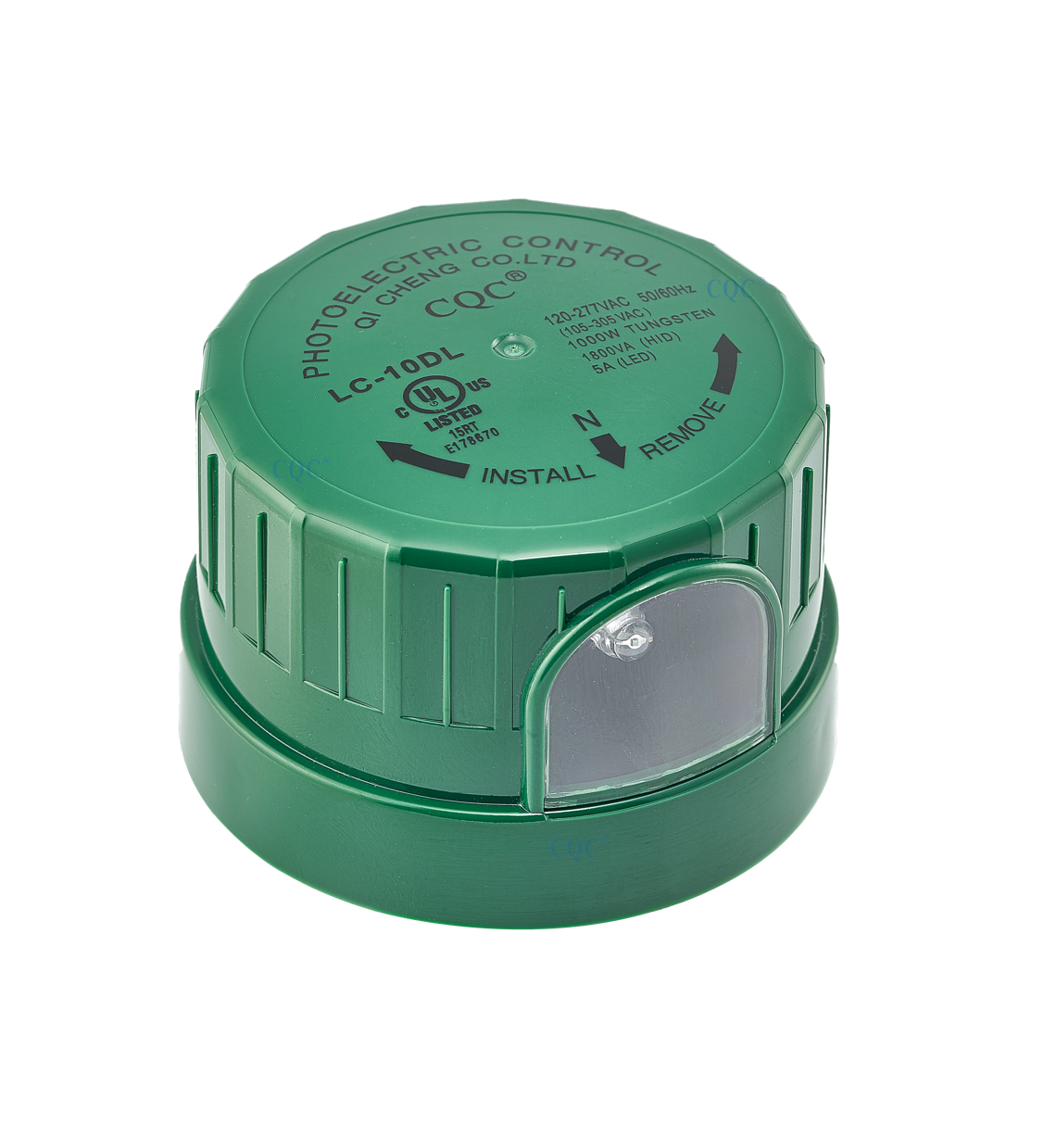

光控器 扭锁电子式路灯光控开关 LC-10DL广泛应用在街道和户外照明中。该产品含有90/190J/380J（10/1000us）MOMOV浪涌保护，能耗小于1瓦，寿命长达5000次循环以上设计。 The LC-10DL electronic street light control switch with twist lock is widely used in street and outdoor lighting. This product contains 90/190J/380J (10/1000us) MOMOV surge protection, with an energy consumption of less than 1 watt and a lifespan of over 5000 cycles.

产品缩略图：

相关产品图片：

主要技术参数：
●开启亮度：10-16勒克斯
●开启/关闭比例：1:1.5比4
●延时：3-15秒
●工作温度：-40℃至+70℃
●继电器：30A
●MOMOV浪涌保护：90/190J/380J（10/1000us）
●能耗：小于1Watt（120V<0.5W）
●电气寿命：>5000次循环
●传感器类型：硅光电管
●外壳：紫外线稳定PC
●故障模式：故障关闭

●尺寸：80mm，74mm
SPECIFICATIONS AND CHARACTERISTICS:
·Rated Voltage: 120/277VAC (105-305VAC)
·Turn-ON Light Level: 10-16 Lux
·Turn ON/OFF Ratio: 1:3 to 4
·Time Delay: 3-15 sec
·Operating Temperature: -40℃ to +70℃
·Relay: 15A
·MOV Surge Protection: 90/190J/380J(10/1000us)
·Energy Consumption: Less than 1Watt (120V<0.5W)
·Electrical Life: >5000 cycles
·Sensor Type: Silicon Photocell
·Housing: UV stabilized PC
·Failure Mode: Fail ON (standard), Fail OFF (for your option)
·Size: 80mm

技术及工艺创新要点：
1.MOMOV浪涌保护：90/190J/380J（10/1000us）
2.能耗：小于1Watt（120V<0.5W）
3.电气寿命：>5000次循环

1. MOMOV surge protection: 90/190J/380J (10/1000us)
2. Energy consumption: less than 1 watt (120V<0.5W)
3. Electrical lifespan:>5000 cycles

与国内外同类产品或同类技术的比较情况：
1.MOMOV浪涌保护：90/190J/380J（10/1000us）
2.能耗：小于1Watt（120V<0.5W）
3.电气寿命：>5000次循环

1. MOMOV surge protection: 90/190J/380J (10/1000us)
2. Energy consumption: less than 1 watt (120V<0.5W)
3. Electrical lifespan:>5000 cycles

实际运用案例和用户评价意见：

获奖、专利情况：

申报单位介绍：

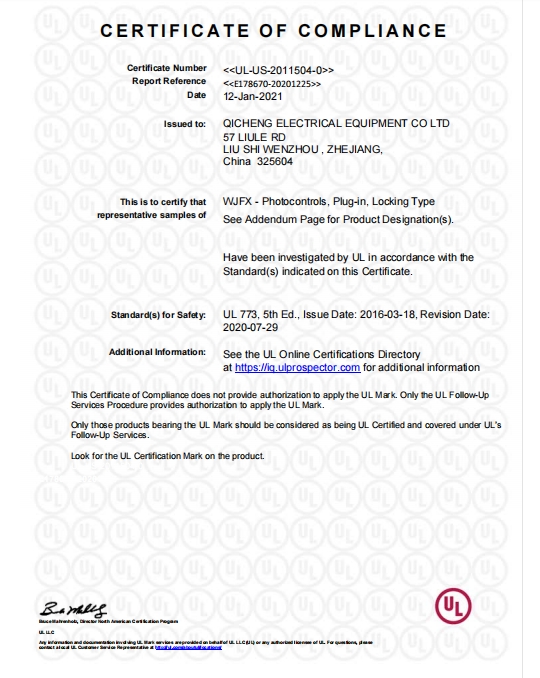

CQC/浙江奇诚电器有限公司：创建于1994年，1998年成立中外合资温州奇诚配电电器有限公司。专业从事小型断路器、光控器及关联产品的设计与制造，并出口国际中高端市场。 公司获得德国TUV颁发的ISO9001国际质量体系认证（设计与制造），国际CB、VDE、BVQI、UL、CUL等产品安全认证；公司被认定为浙江省科技型中小企业、市专利示范型企业；是国家火炬计划重点项目实施单位。政府认定的光控器企业技术研发中心。 光控器在中国是率先研发、制造与出口，产品通过UL773/773A、ANSI C136.10, ANSI C136.24 . ANSI C136.41标准和Zhaga Book 18标准，及美国UL认证。现在是拥有多元化光控器产线、UL认证相对齐全的中国制造商。 CQC/Zhejiang Qicheng Electrical Equipment Co.Ltd. was founded in 1994. In the year of 1998, we established our Sino-foreign joint venture Wenzhou Qicheng Distribution Electrical Equipment Co., Ltd. We are specialized in manufacturing and designing miniature circuit breaker, photo control and associated products. The products are exported to middle and high end market throughout the world. Our company has obtained the ISO9001 international quality system certification (including design and manufacture) issued by TUV Germany,and other international product safety certifications, such as CB,VDE,BVQI,UL,CUL.etc; The company has been identified as Zhejiang Province’s Small & Medium-sized Technology Enterprises, Patent Demonstration Enterprises, National Torch Major Project Implement Unit, and government-appointed Research & Development center of photo control. As a leading manufacturer of photo control, CQC owns diverse product line of photo controls which are mostly UL certified as per UL773/773A and ANSI C136.10, ANSI C136.24. ANSI C136.41 standards and Zhaga Book 18 standard. CQC is proud of providing multiple selections of photo control and accessories to support various outdoor lighting projects for customers in a global scale.
