综合介绍或申报理由：
一体化电源是针对智慧路灯、综合设备箱等需要多种工作电压的场景设计的一款电源，该电源支持交流电/直流电输入工作，输出具有多种电压类型，如AC220V（DC240V）、DC5V~54V等，从而满足不同设备对不同电压的需求。一台电源解决传统方案需要多台电源处理的问题，极大的简化了电气设计。 该电源具备通讯和采用控制功能，可对每一路输出进行电量计量及开关控制，具备RS485通讯接口，可连接网关控制器，为供配电的远程监控提供便利。 未来，在智慧城市的建设中，智慧路灯的建设将是不可或缺的一部分，而一体化电源作为智慧路灯的供电单元，一方面提供简单可靠的供电保障，另一方面为设备运营提供基础数据。 Integrated power supply is for the wisdom of street lights, integrated equipment box and other scenarios that require a variety of working voltage design of a power supply, the power supply supports AC / DC input work, the output has a variety of voltage types, such as AC220V (DC240V), DC5V ~ 54V, etc., so as to meet the needs of different devices for different voltages. One power supply solves the problem that traditional solutions require multiple power supplies to handle, greatly simplifying electrical design. The power supply has communication and control functions, can be used for each output for fuel metering and switch control, with RS485 communication interface, can be connected to the gateway controller, for the power supply and distribution of remote monitoring to provide convenience. In the future, in the construction of smart cities, the construction of smart street lights will be an indispensable part, and the integrated power supply as a power supply unit for smart street lights will provide simple and reliable power supply guarantee on the one hand, and provide basic data for equipment operation on the other hand.

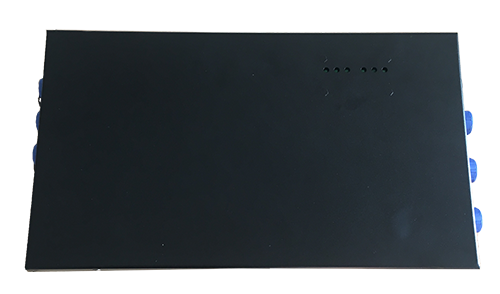

项目缩略图：

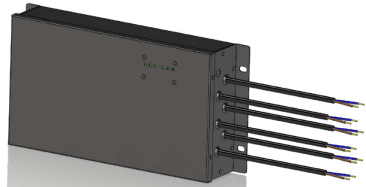

相关项目图片：

项目宣传视频：

主要技术参数：
窄电压输入：176~305Vac APFC有源功率因数校正(PF典型值0.99) 全方位保护：OCP/OTP/SHORT/OVP IP65防护等级 长寿命及器件低应力设计 5年质保 防雷等级:6kV/10kV 各路输出均带远程开关功能 AC输出带AC计量功能 DC输出带DC计量功能 程序自升级，方便产品迭代 Narrow voltage input: 176~305Vac APFC Active Power Factor Correction (PF Typical 0.99) All-round protection: OCP/OTP/SHORT/OVP IP65 protection class Long life and low stress design of the device 5-year warranty Lightning protection class: 6kV/10kV Each output is equipped with a remote switching function The AC output is equipped with AC metering function The DC output is equipped with DC metering function The program is self-upgrading, which is convenient for product iteration.

技术及工艺创新要点：
模块式电源 一体化电源的应用场景复杂多变，对输出电压要求不同的特点，一体化电源的低压输出单元采用模块式电源的方案，对不同的设备组合，更换不同的电源模块，电压范围在5V~54V之间，可任意调整更换，例如监控摄像头使用24V、环境监测使用12V，采用不同的组合方式，灵活可控。 回路监控 为了方便为各个回路的用电设备的监控，该一体化电源配置回路监控功能，不仅可以控制回路的开关，而且可以对回路的用电量进行计量。智慧路灯在后期运维时，对杆件上挂载设备的监控更加细致，例如需要统计显示屏的用电量，以作计费使用，定时开启或关闭手机充电服务等。 软件设定保护阈值 自我保护功能是一台电源必不可少的功能，改一体化电源不仅具有完善的保护功能，如输入过压、输入欠压、输出过压、输出欠压、短路保护、过温保护等，这些功能可以通过软件设定告警的阈值，更加灵活可控，根据实际应用场景设定相应的参数，保证其运行的稳定可靠。 Modular power supply The application scenario of integrated power supply is complex and changeable, with different characteristics of output voltage requirements. The low voltage output unit of integrated power supply adopts modular power scheme, replace different equipment combinations, different power modules, voltage range between 5 V and 54 V, can be adjusted and replaced, such as monitoring camera using 24V, environmental monitoring using 12V, using different combination methods, flexible and controllable. ?Circuit monitoring In order to facilitate the monitoring of the electrical equipment for each circuit, the integrated power supply features the circuit monitoring function, which can not only control the switch of the circuit, but also measure the power consumption of the circuit.In the later operation and maintenance of smart street lamps, the monitoring of the mounted equipment on the pole is more detailed. For example, the electricity consumption of the display screen should be counted to be used for billing, mobile phone charging service regularly on or off, etc. ?The software sets the protection threshold value Self-protection function is an essential function of a power supply, change integrated power not only has perfect protection function, such as input overpressure, input pressure, output pressure, output pressure, short circuit protection, overtemperature protection, etc., these functions can set the threshold of alarm, more flexible and controllable, according to the actual application scene set the corresponding parameters, to ensure its stable and reliable operation.

实际运用案例和用户评价意见：
杭州星河路项目

获奖、专利情况：

申报单位介绍：
杭州中恒派威电源有限公司于2012年成立，致力于智慧城市的照明领域，是一家集研发、制造、销售及服务为一体的综合型企业，拥有雄厚的技术力量，先进的技术设备，高效的管理团队和完善的管理体系。 公司秉承着“为人类创造更安全更智慧的环境”的愿景，为用户提供可靠的LED驱动电源以及完善的系统解决方案，业务范围涵盖直流供电系统、智慧杆系统、综合智能配电、网络安全、电源及控制系统。且已广泛应用于道路、隧道、高架桥、机场、楼宇、桥梁等场所。 Hangzhou Zhongheng Paiwei Power Supply Co., Ltd. was established in 2012, is committed to the field of smart city lighting, is a collection of R & D, manufacturing, sales and service as one of the integrated enterprises, with strong technical force, advanced technical equipment, efficient management team and perfect management system. Adhering to the vision of "creating a safer and smarter environment for mankind", the company provides users with reliable LED drive power supply and perfect system solutions, covering DC power supply system, smart pole system, integrated intelligent power distribution, network security, power supply and control system. And has been widely used in roads, tunnels, viaducts, airports, buildings, bridges and other places.
