综合介绍或申报理由: SR-GW-TDA是行业内全球首个DALI网关,支持DT6、DT8、XY、DT8 RGWAF设备类型,无需DALI主控,可支持自动对最多64个DALI control gear的寻址、分组和场景进行配置。内置250毫安DALI总线电源输出,无需额外布线。通过以太网轻松连接到网络,可通过APP轻松进行配置。内置电池,RTC,支持定时器任务配置,支持周期计划配置。

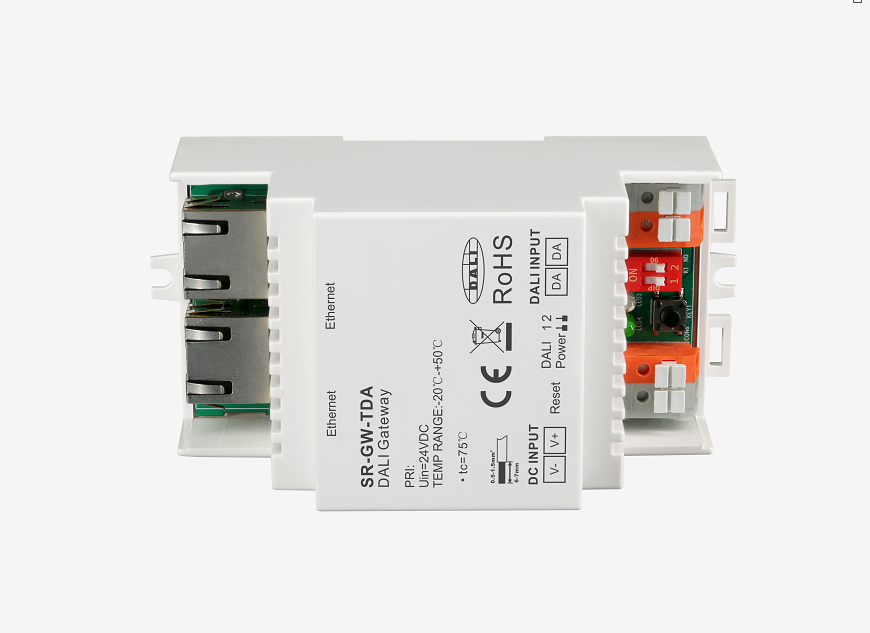

SR-GW-TDA is the world-first DALI gateway in the industry, supporting DT6、DT8、XY、DT8 RGWAF device types. No need for DALI master controller, supports up to 64 DALI control gears’ addressing, grouping, and scene setting. Built-in 250mA DALI PS, no extra wiring required. Easy connect to a network through Ethernet connection and easy & quick configuration through the mobile application. Built-in battery, and RTC, supporting timer task configuration. and cycle schedule configuration.

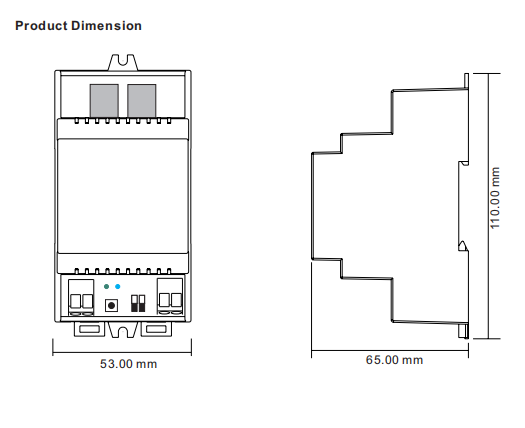

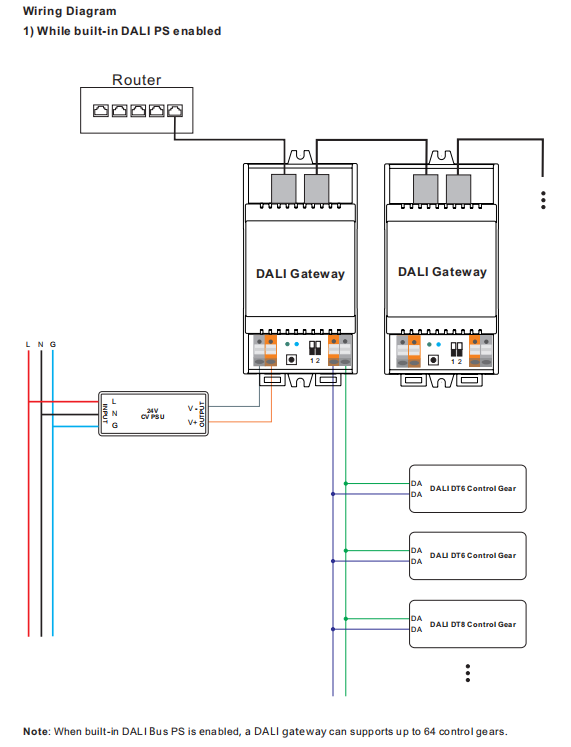

1.While built-in DALI PS enabled: Input Voltage: 24VDC Number of DALI Channel: 1 Output Voltage: 12-22.5VDC Output Current: 250mA max Size(LxWxH): 110x53x65mm Ambient Temperature: -20℃-+50℃ 2.While built-in DALI PS disabled: DALI Current Consumption: Max.2mA
技术及工艺创新要点: 1.SR-GW-TDA可通过APP来对后面的DALI电源/控制器来进行调光、色温、色彩控制。支持多样化的设定和联动功能,功能十分强大。 SR-GW-TDA can control the dimming, color temperature and color of DALI driver/controller on DALI bus through APP. Support diversified settings and linkage functions, which are very powerful. 2.支持最多250mA的DALI信号电源输出;最多64个Control gear的接入。 Support up to 250mA of DALI signal power output and up to 64 control gears. 3.可自由选择DALI电源开启或关闭(通过拨码开关选择)。 Freely selectable DALI power on or off (selectable via DIP switch) 4.支持广播控制,单灯单控,组控等多种不同方式的控制;且支持定时,场景等多种联动控制方式。 supports broadcast control, single lamp single control, group control and other different ways of control; and supports timing, scene and other linkage control methods. 5.通过以太网(RJ45网线)进行连接,手机与网关之间的链接不受距离/信号的影响;只要手机与网关处于同一个网络下,即可进行控制 SR-GW-TDA is connected via Ethernet (RJ45 network cable), and the link between the phone and the gateway is not affected by the distance/signal; as long as the phone and the gateway are on the same network, it can be controlled 6.可安装至配电箱中,信号不受距离及屏蔽物遮挡的影响. Can be installed in a distribution box, and the signal is not affected by distance and shielding.
