综合介绍或申报理由：
随着“人因”照明概念的普及，健康、智能、舒适的智能照明也越来越多的被应用在日常生活中。在大规模市场需求下，如何从技术上提高产品安装效率、电流的精准度以及后期设备调试的便捷性是关键。 As the concept of Human Centric Lighting has been popularized, the healthy and comfortable smart lighting becomes more and more common in our lives. Facing such a big market demand, improving product installation efficiency, current accuracy and the convenience of latter equipment commissioning holds the key. 雷特研发的NFC可编程智能电源，采用独创T-PWM超深度调光技术，调光深度达0.01%，无频闪达高频豁免考级别，产品具有调光细腻光滑、可满足全景化的照明灯具需求；并支持NFC或软件设置电流，可实现一键切换电流的全智能数字化控制，打破了传统电源拨码调档受限、耗时、人工成本高的弊端；NFC可编程智能电源电流可精确到1mA,兼容性更高更精细，且电源无需通电，即可快速、批量设置电流与参数。 LTECH NFC Programmable LED Driver use the pioneering T-PWM super depth dimming technology that can dim lights down to 0.01%. The drivers can deliver smooth and flicker-free lighting that reaches the high frequency exemption level and meet the demands of LED lights used in all scenarios. The NFC Programmable LED Driver allow NFC or software programming to set the output current. Users can change the current level of NFC Programmable LED Driver with just one tap, which replaces the labor-intensive current setting method of traditional LED drivers, and reduces time and costs. The output current of NFC Programmable LED Driver can be set down to 1mA. Without powering on the drivers, quick current and parameter settings can be completed.

项目缩略图：

相关项目图片：

项目宣传视频：

主要技术参数：

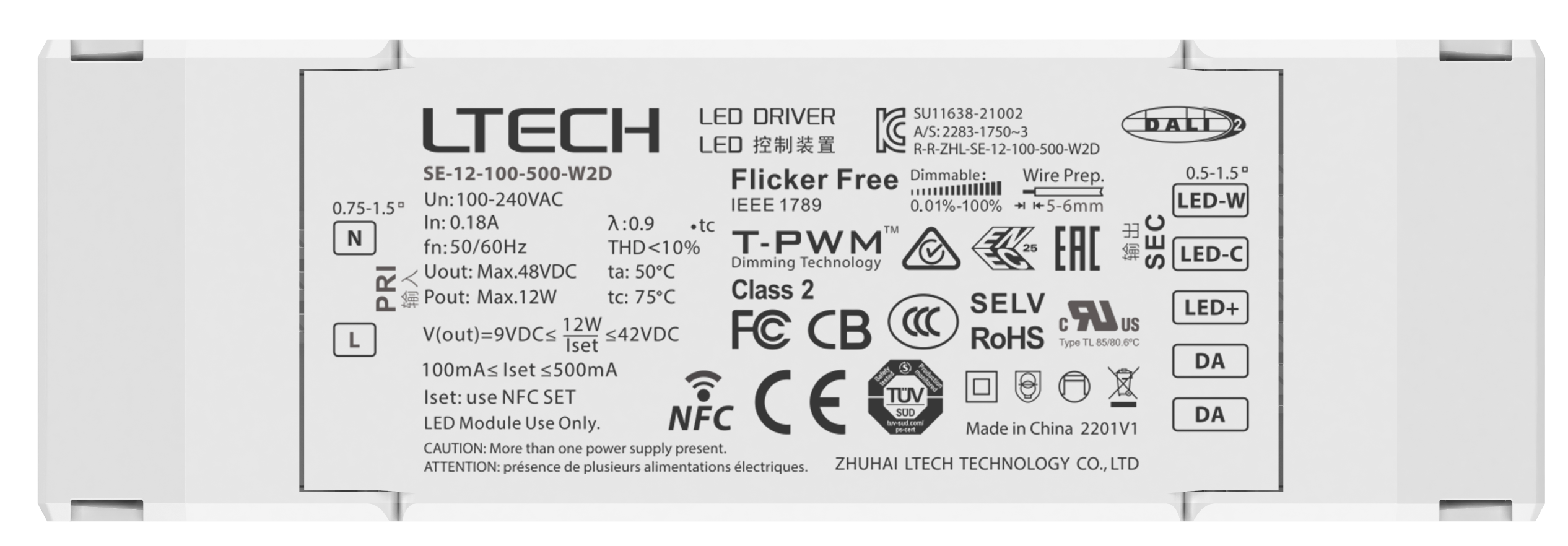

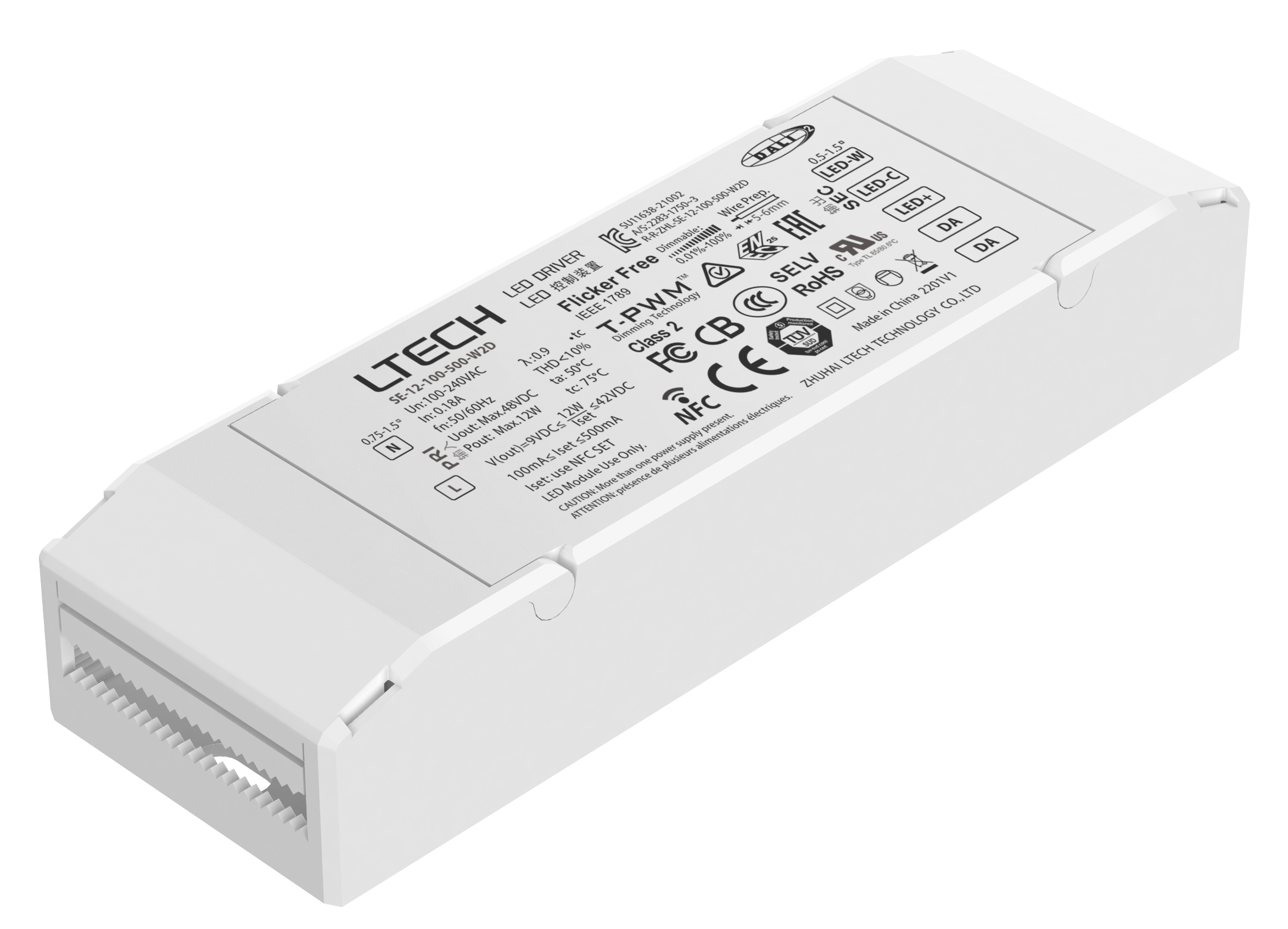

以NFC可编程智能电源SE-12-100-500-W2D型号为例
Take the NFC Programmable LED Driver (model: SE-12-100-500-W2D) an example
输入电压 Input voltage：100-240VAC
功率因数Power factor：≥0.92
效率 Efficiency（typ）：82%
谐波(THD)：<10%
输出电压Output voltage：9-42VDC
输出电流Output current：100-500mA
NFC最小电流设置值 NFC minimum current：1mA
输出功率Output power：0-12W
产品尺寸Dimensions：111mm*35mm*20mm
质保Warranty：五年（红宝石电容） 5 years (Rubycon capacitor)

技术及工艺创新要点：
1，以科技为媒，打造行业“标杆”。雷特NFC系列，可实现一键切换电流的全智能数字化控制。
Users can change the output of LTECH NFC series LED series drivers with just one tap and let you have complete digital control.
2，以数字为媒，打造全数字化智能空间。雷特NFC全数字化驱动，打破了传统电源的拨码调档受限、耗时、人工成本高的弊端。
The current setting of LTECH NFC LED drivers replaces the labor-intensive current setting method of traditional LED drivers, and reduces time and costs.
3，以精准为媒，打造“超精准”电流设置，NFC电流精准至1/mA，兼容性更高更精细。
Enable ultra precise current settings. The output current of NFC drivers can be set down to 1mA , and the drivers have greater compatibility as well.
4，以人本为媒，模拟自然光环境，遵循生理节律，让健康智能光环境成为常态。
The lighting can imitate natural light to support human circadian rhythms. Make healthy and intelligent lighting environments become normal.
5，可APP或软件更改电流，日常调试更便捷。
Change the current via the app or the software that facilitates the daily commissioning.
6，T-PWM?超深度调光技术，0.01调光深度，舒适柔光，无频闪达高频豁免考核级别
Use the T-PWM super depth dimming technology that can dim lights down to 0.01%. The drivers can deliver smooth and flicker-free lighting that reaches the high frequency exemption level.
7，超小，超博，超轻便，2cm超薄厚度，0.077kg超轻便重量
Ultra small, ultra thin, ultra lightweight. 2cm thickness and 0.077kg in weight.
8，电源无需通电，可快速、批量设置电流与参数。
No need to power on the drivers, quick current and parameter settings can be completed.
9，超强兼容，灯具适配无烦恼，适用于多种功率的LED，适合室内多类灯具应用。
Have ultra strong compatibility that allows a wide variety of luminaires to be connected. Suitable for different types of indoor LEDs
10，多协议（DALI、0-10V/1-10V、DMX、TD、蓝牙5.0）类别可选，满足不同场景的应用需求。
Multiple protocols are optional, including DALI, 0-10V/1-10V, DMX, TD and Bluetooth 5.0, which meet the requirements of different applications.
11，超硬核硬件匹配，科思创/三星PC阻燃V0级外壳原料
Use high quality components made from COVESTRO/SAMSUNG V0 flame retardant PC materials
12，更节能，助力双碳目标，符合欧盟ERP能耗标准，待机功耗、空载功耗<0.5W
Be energy-efficient during use to help achieve China’s Double Carbon Goal. Standby power consumption and no-load power consumption < 0.5W, comply with the EU’s ErP Directive
13，全球多重认证，品质有保障：UL、FCC、CE、CCC、TUV、CB、RCM、ENEC、EAC、KC、BIS、UKCA、ROHS、BIE 5.0、DALI-2
Have multiple global certification to guarantee the product quality. The drivers are UL, FCC, CE, CCC, TUV, CB, RCM, ENEC, EAC, KC, BIS, UKCA, ROHS, BIE 5.0, DALI-2 certified.
14，多重保护，使用更安心。（过温保护、过载保护、过压保护、空载保护、短路保护）
Provide multiple protection and make you feel more assured (including overheat, overload , overvoltage , no-load and short circuit protection )
15，5年长效质保，采用红宝石电容，创新热管理技术，高达50,000小时的额定寿命。
5 year warranty and Rated life of more than 50,000h. Use rubycon capacitor and innovative thermal management technology.

与国内外同类产品或同类技术的比较情况：
1，可批量操作，耗时更短；
Operate in batch with less time needed;
2，可一键切换电流，实现全数字化控制；
Change current with one tap and let you have complete digital control
3，电流可精确到1mA，兼容性更高更精细；
Current can be set down to 1mA and have greater compatibility as well.
4，无需通电，即可设置电流与参数。
Set the current and parameters without powering on them

经济评价分析：
1，从人工施工成本上，NFC可编程智能电源支持批量操作，可极大解约人工成本。
On the labor cost. The current changing of theNFC Programmable LED Driver can be operated in batch, which can greatly reduce labor costs.
2，从后期维护上，NFC可编程智能电源无需通电，即可设置电流与参数，并可通过手机APP设置，后期维护更便利。
On the post maintenance. NFC Programmable LED Driver support current and parameter settings via the app without powering on them. It is more convenient for post maintenance.
3，从对人体健康上，NFC可编程智能电源结合人本照明理念，可模拟自然光环境，遵循生理节律，不同场景，时间，都能设定对应相对更经济效益的灯光使用策略，让健康智能光环境成为常态。
On the human health. Based on the concept of Human Centric Lighting, NFC Programmable LED Driver can be used to deliver the lighting that imitates natural light to support human circadian rhythms. Set a relatively more economic and ideal lighting pattern in different scenes and at different times of days that makes healthy and smart lighting environments become normal.
4，从环保上，远程查看灯光状态，可以时刻了解灯光，出门前是否有关灯，避免浪费。
On efficiency. Remotely check the light status to reduce energy waste. Whether the light is turned on when you’re away.
5，从满足用户需求来看，电流可精确到1mA，可极大满足不同用户的灯具搭配需求。
On user needs. The current can be down to 1mA, which can greatly meet the needs for different users.

获奖、专利情况：

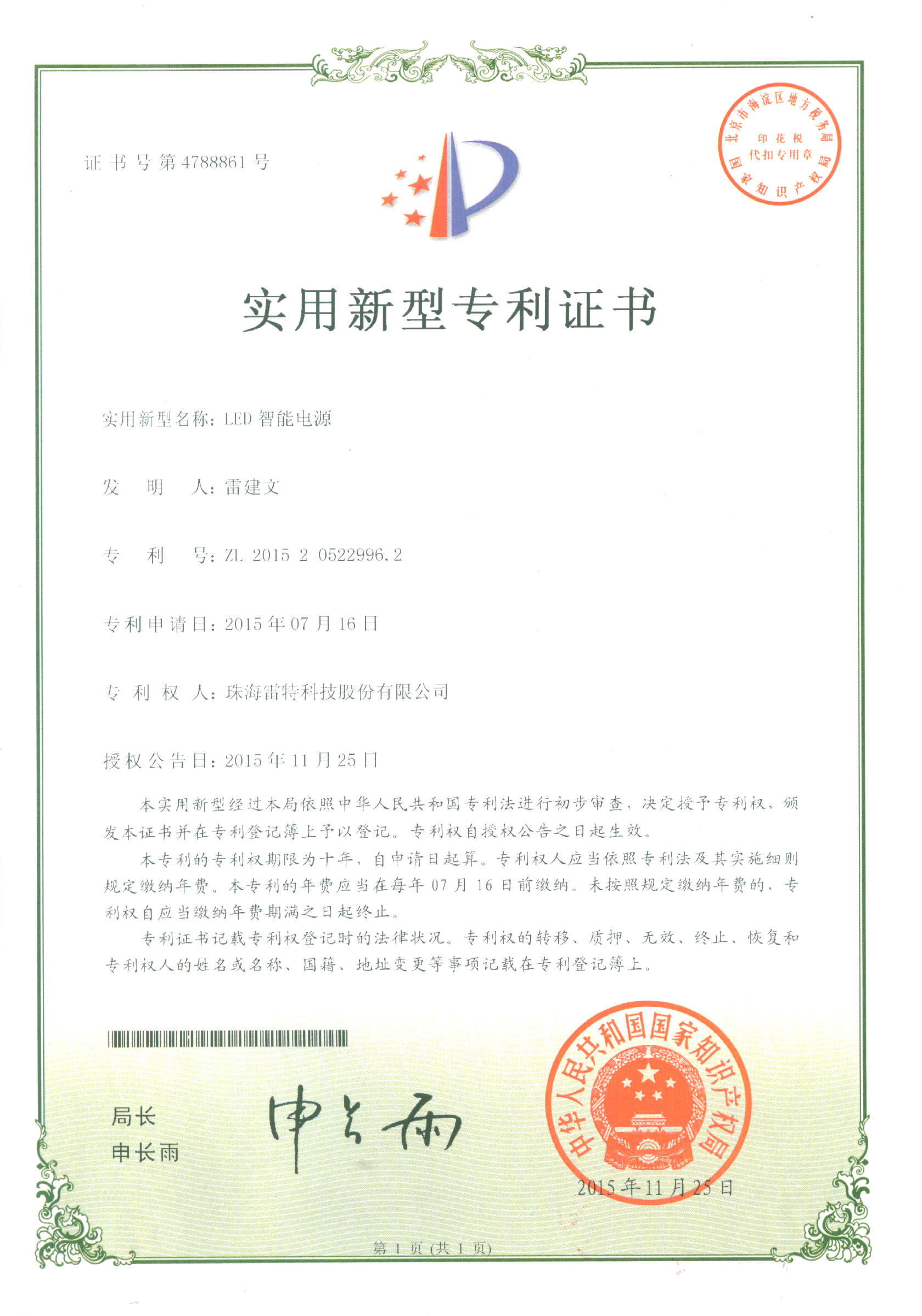

1，201520522996.2LED智能电源 201520522996.2Intelligent LED driver
2，201620733175.8可控硅兼容多段调光LED智能电源
201620733175.8.Compatible with Phase cut dimming and available in several dimming levels

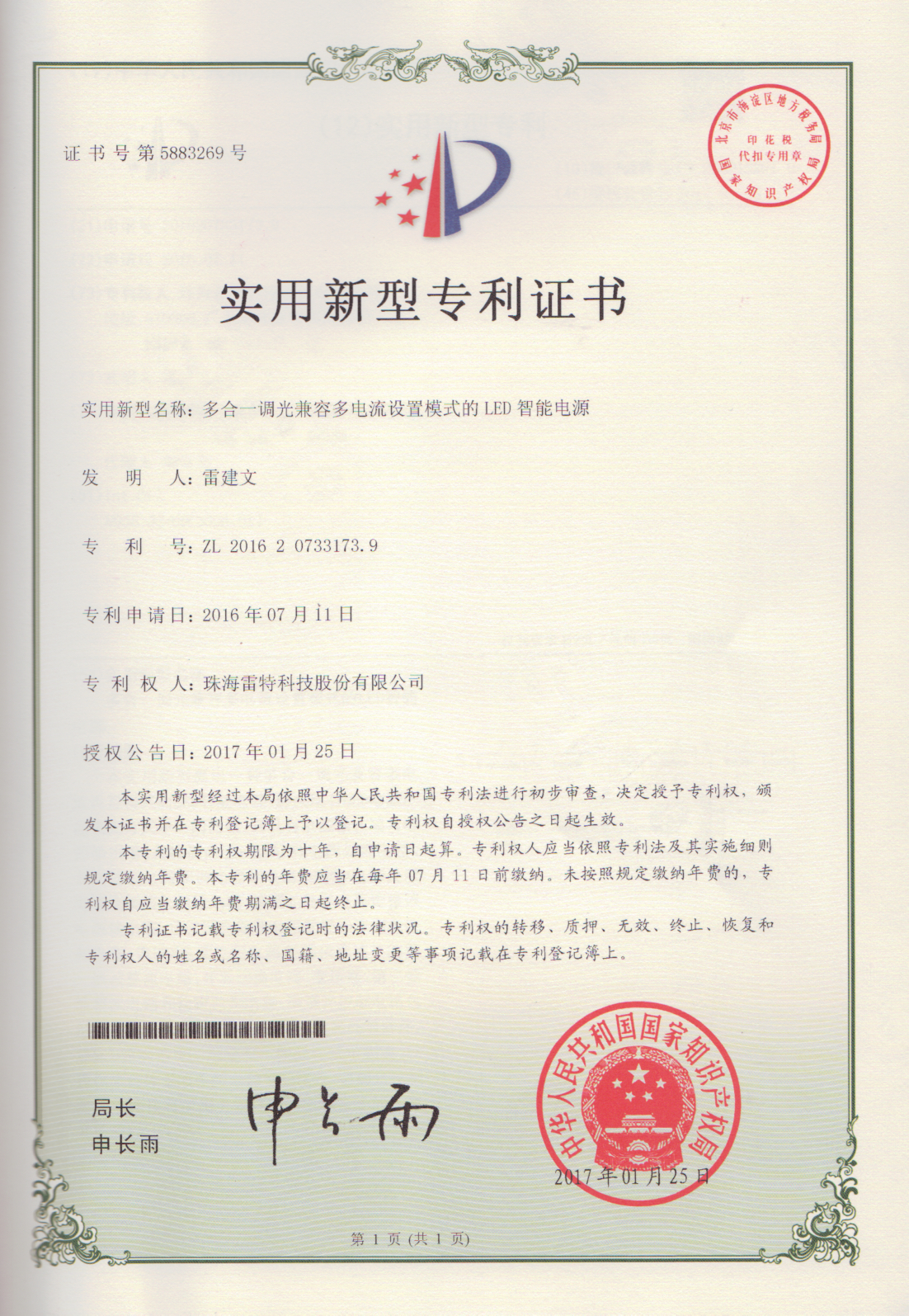

3，201620733173.9多合一调光兼容多电流设置模式的LED智能电源
201620733173.9.All in one dimming and allow various current level setting

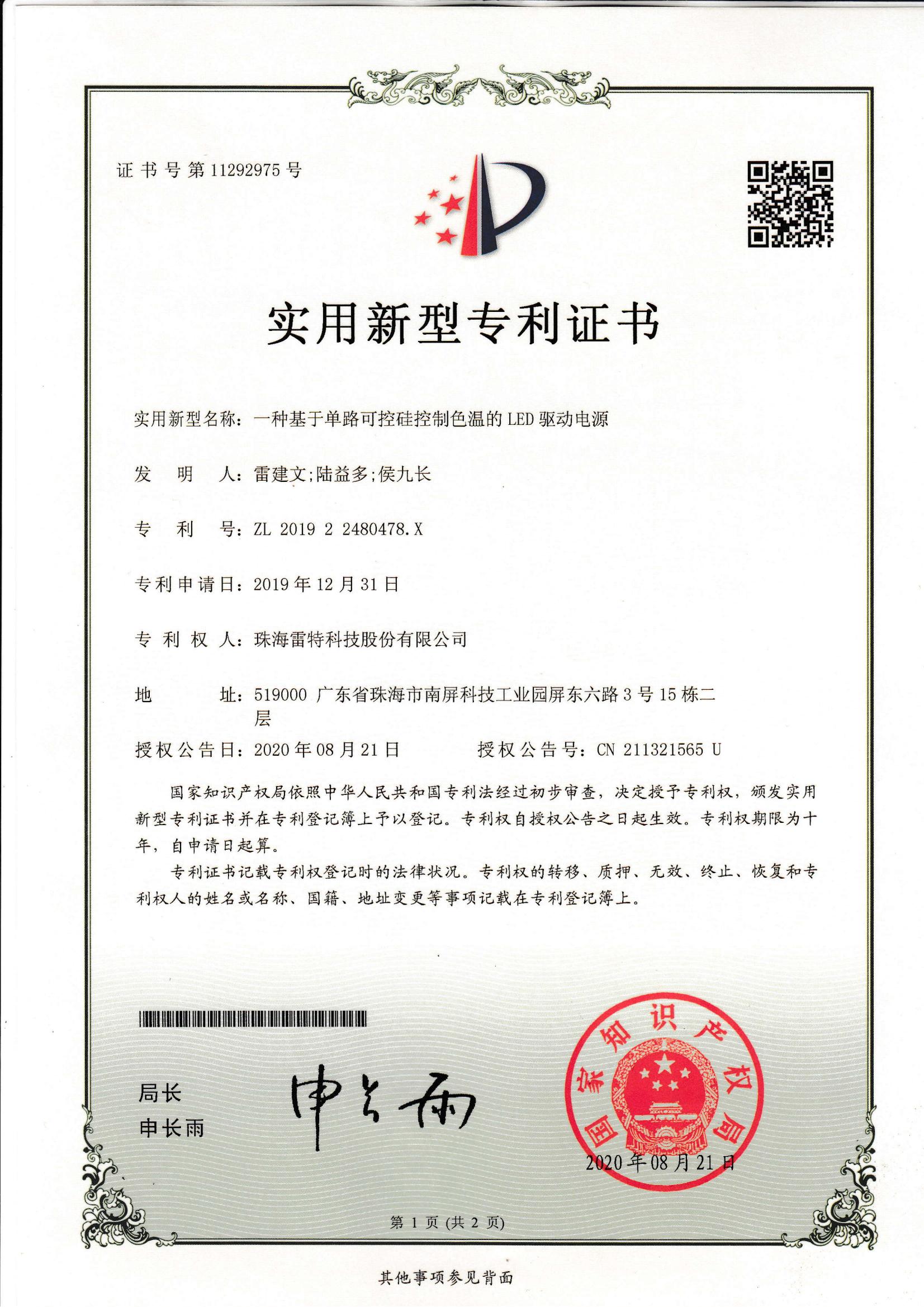

4，201922480478.X一种基于单路可控硅控制色温的LED驱动电源
201922480478.X.Single-channel Phase cut driver, control color temperature

是否有“智能设计”：
1，无需通电，即可设置电流与参数，并可通过手机APP进行设置，且电流可精准至1mA。 No need to power on drivers. NFC Programmable LED Driver support current and parameter settings via the app without powering on them. And the current can be set down to 1mA. 2，打破传统电源的拨码调档方式，支持参数批量设置。 Replace the traditional current settings via dip switches. Batch parameter settings are supported. 3，以人为本可模拟自然光环境，遵循生理节律，不同场景，时间，都能设定对应相对更经济效益的灯光使用策略，让健康智能光环境成为常态。 Lighting imitates natural light to support human circadian rhythms. Set a relatively more economic and ideal lighting pattern in different scenes and at different times of days that makes healthy and smart lighting environments become normal.

申报单位介绍：
雷特科技（股票代码：832110），自2003年创立，衍生推动了中国LED照明智能控制领域的全新篇章。近20年来，雷特一直走在中国LED照明控制技术前沿，是全球LED照明控制系统实力厂商之一。 Zhuhai LTECH Technology Co., LTD. (Stock Code: 832110), founded in 2003, has greatly promoted the development of the field of intelligent LED lighting control in China. Over 20 years, LTECH has been at the forefront of LED lighting control technology in China. It is one of the leading manufacturers of LED lighting control systems in the world. 作为中国LED照明智能控制领域的开创者，雷特科技始终坚持以科技创新为核心，在智能照明领域不断推陈出新，自主发明LED智能控制新技术，拥有完整的AI+IoT+Cloud+Actuator核心竞争力，先后开发了“LED照明控制系统 ”、“智能驱动器”和“智能家居”三大硬件产品线，满足照明企业、商业空间与家居场景的智能化需求。现已实现与阿里、小米、百度、亚马逊、Google等物联网平台云云对接，形成完整的一站式AIoT智能化生态解决方案。 As a pioneer of the field of intelligent lighting in China, LTECH always insists on taking scientific and technological innovation as the core and constantly brings new technology into the field of intelligent lighting, which has already created new intelligent LED lighting control technology. With possessing the core competencies of AI+IoT+Cloud+Actuator, LTECH developed three hardware product lines-"LED Lighting Control System", " Intelligent LED Driver" and "Smart Home", meeting the needs of smart scenes for lighting enterprises, commercial space and residential homes. The cloud platform we developed can combine with Alibaba, Xiaomi, Baidu, Amazon and Google IoT platform through cloud connections to provide users with one-stop AIoT ecosystem solutions. 雷特已为世界各地著名的地标建筑、主题乐园、星级酒店、办公大楼、高级商场等数万个中大型照明工程及众多智慧家庭，智慧办公，智慧酒店提供了大量有竞争力、安全可信赖的产品与解决方案，并在全球各个国家和地区成立办事处，展开全球化营销网络布局，为全球成千上万个行业用户提供智能照明解决方案。在未来，雷特将致力成为全球智能照明解决方案的领军品牌，为中国乃至全球智能照明发展奉献力量。 LTECH has provided a large number of competitive, safe and reliable products and solutions for tens of thousands of medium and large size lighting project across the globe, including landmark buildings, theme parks, star hotels, office buildings, shopping malls, smart homes, smart offices, and smart hotels. Meanwhile, LTECH set up offices in each country and region around the world and has established a global sales and service network to provide tens of thousands of industry users with intelligent lighting solutions. LTECH will strive to become the global leading brand of intelligent lighting solutions, making contributions to the development of intelligent lighting in China and around the world. 经典案例：Classic project cases 北京冬奥村运动员公寓 Athlete’s Apartments at the Beijing Winter Olympic Village 冬奥会开幕式 The Beijing Winter Olympics Opening Ceremony 华为全球最大旗舰店 Huawei’s Largest Global Flagship Store 台北保时捷中心 Porsche Center Taipei 中国国际进口博览会China?International?Import Expo 北京大兴国际机场Beijing Daxing International Airport 九棵树（上海）未来艺术中心Nine Trees (Shanghai) Future Art?Center 湖南省博物馆Hunan?Provincial Museum 北京华润未来城智慧展厅Smart Showroom of Beijing CR Future City 成都蔚来汽车Chengdu NextEV Car 英国罗丁公园酒店Rudding Park Hotel (UK) 澳门摩珀斯酒店Macao Morpeth Hotel 上海外滩W酒店Shanghai Bund W?Hotel 盒马鲜生UFULL Supermarket Smartass运动俱乐部 Smartass Sports Club 历年获得荣誉及奖项：Honors and awards received over the years: 广东省“专精特新”中小企业 A Guangdong Superior Small and Medium-sized Enterprise in Terms of Professionalism, Specialization and Innovation 2021年度中国照明灯饰行业十大新锐智能照明品牌 Top 10 Intelligent Lighting Brand Awards of China Lighting Industry 2021 国家高新技术企业National High-tech Enterprises 知识产权优势企业Intellectual Property Advantage Enterprise 省级LED智能照明控制器技术研究中心Provincial LED Intelligent Lighting Controller Technology Research Center 广东省名牌产品 The Famous Brand in Guangdong Province 行业十大配件品牌奖 Industry Top 10 Accessories Brands 智能照明产品跨界成果奖 Intelligent Lighting Product Cross-Industry Award 十大智能照明品牌奖（2018-2020）Top 10 Smart Lighting Brand Awards (2018-2020) 跨界优秀企业奖 Cross-Industry Outstanding Enterprise Award “智光杯”会长提名奖（2019)“The Chairman’s Nomination Award(2019)” 阿拉丁神灯奖优秀技术奖（2016-2019）Alighting Award “ Technology Excellence Awards” (2016-2019) 阿拉丁神灯奖“十大技术奖”（2018）2018 Alighting Award“Top Ten Technology Awards” 最具投资价值新三板企业奖 NEEQ-listed Enterprise with the Most Investment Value 新三板百强榜 NEEQ Top 100 Innovators
