综合介绍或申报理由：
1.设计双色温发光，分别为正白光的主发光区和暖白光的待机灯发光区，当感应亮灯时，待机灯是灭灯的，只有主发光区亮灯，待机灯是夜间自动开始亮灯的，白天自动灭灯。 2.整个灯体是全塑料结构，外壳采用耐高温、抗老化的优质ABS原材料。 3.壳子防水部位采用耐高温，抗老化的硅胶包胶注塑创新工艺，整机防水防尘等级达到IP64 4.创新设计的3个灯头，通过结构调节实现最佳左右上下多角度旋转，达到最佳的广角照射范围 5.灯体设计了可拆卸安装的电池仓，方便客户更换电池。 6.每套灯接一个太阳能板供电使用。太阳能板：196 * 176MM的非晶硅太阳能板，5V / 2.1W 1. Design dual-color temperature lighting, which are the main light-emitting area with white light and the standby light-emitting area with warm white light. When the lamp is on due to induction, the standby light is off, only the main light-emitting area lights up. The standby light automatically lights up at night, and it will be automatically turned off during the day. 2. The entire lamp body is with a full plastic structure, and the outer shell is made of high-quality ABS raw materials with high temperature resistance and anti-aging. 3. The waterproof part of the shell adopts the innovative technology of high temperature resistant and anti-aging silicone overmolding, and the waterproof and dustproof level of the whole lamp reaches IP64. 4. Innovatively designed 3 lamp heads, through structural adjustment to achieve the best left, right, up and down multi-angle rotation to achieve the best wide-angle illumination range 5. The lamp body is designed with a detachable battery compartment, which is convenient for customers to replace the battery. 6.Each set of lamps is connected to a solar panel for power supply. Solar panels: 196 * 176MM amorphous silicon , 5V / 2.1W

项目缩略图：

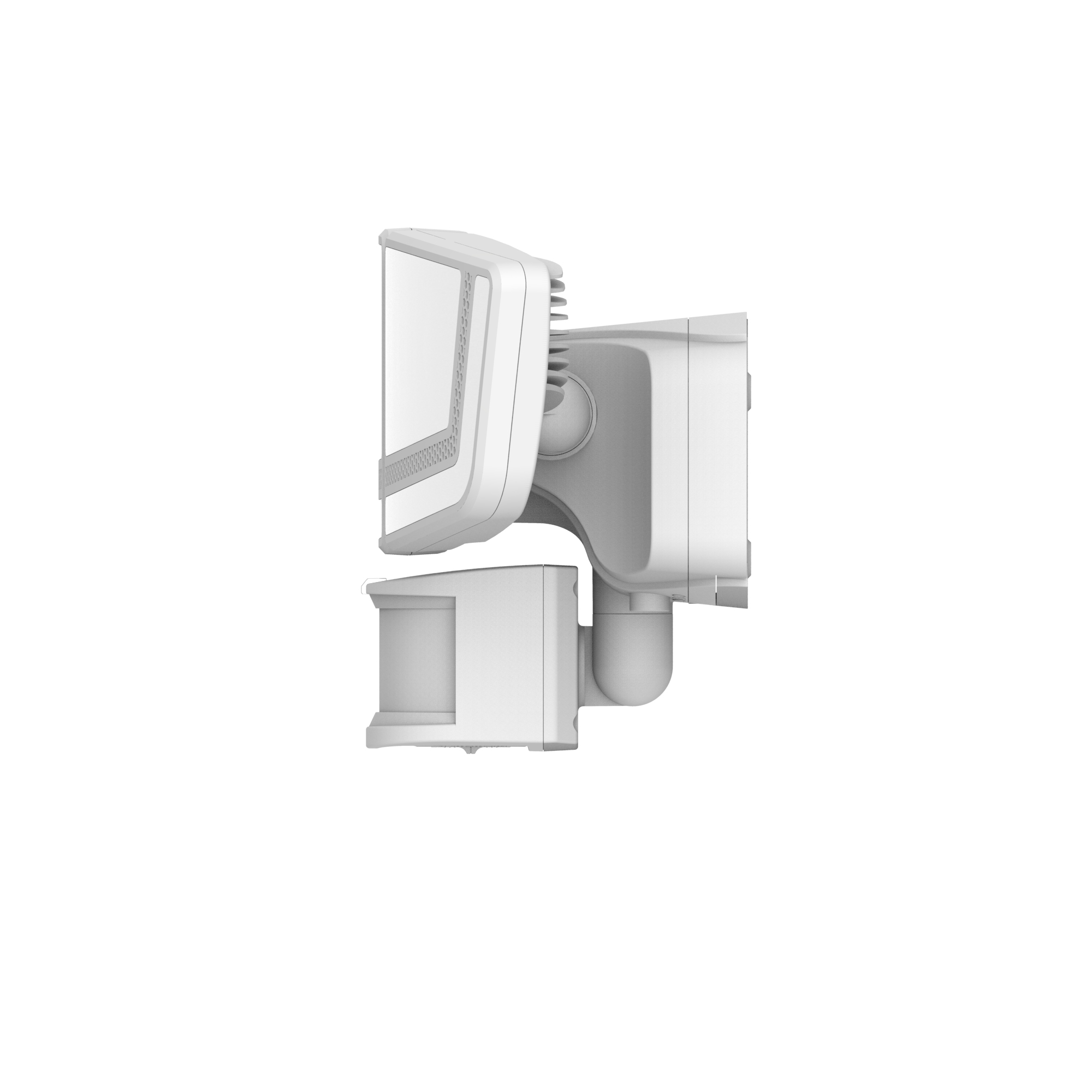

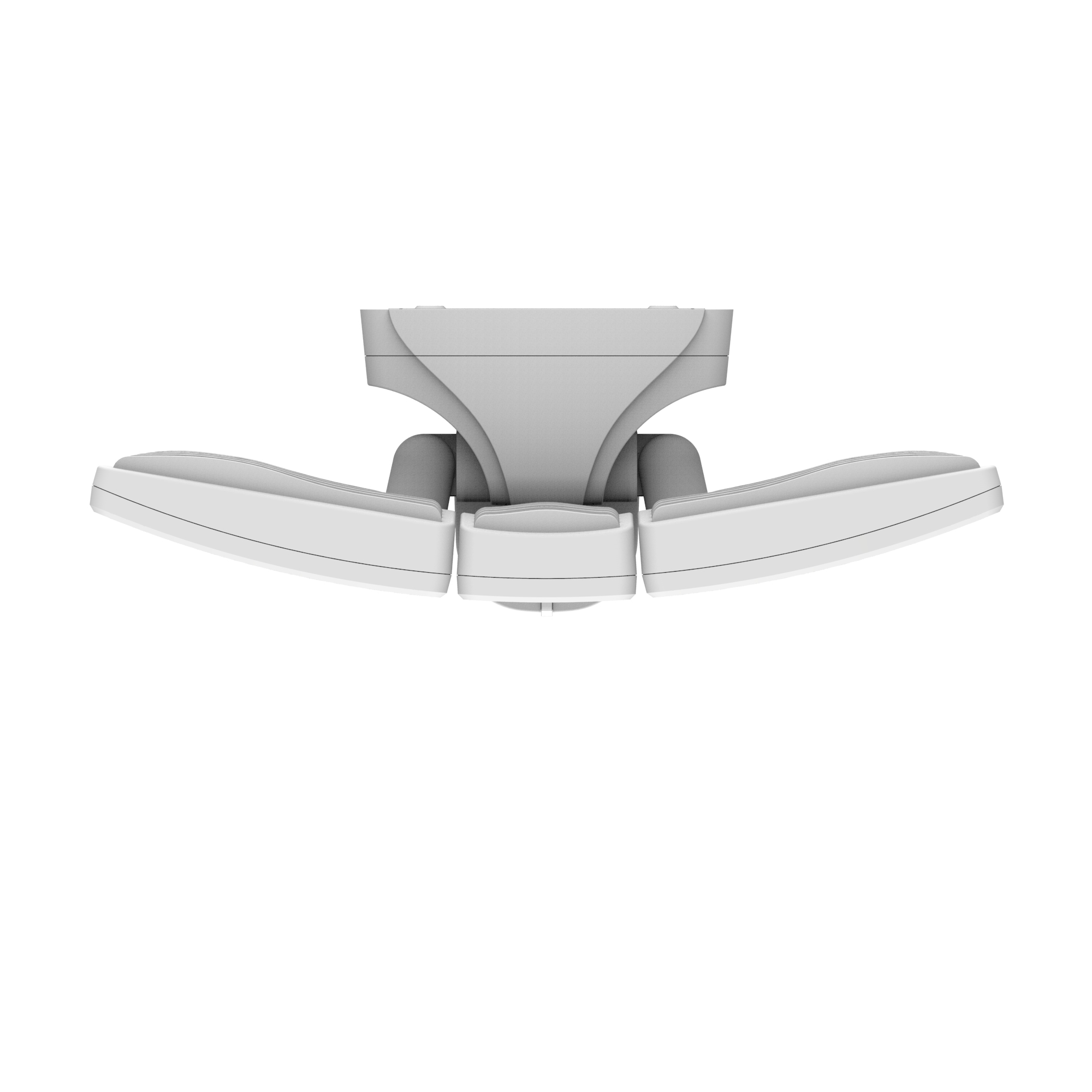

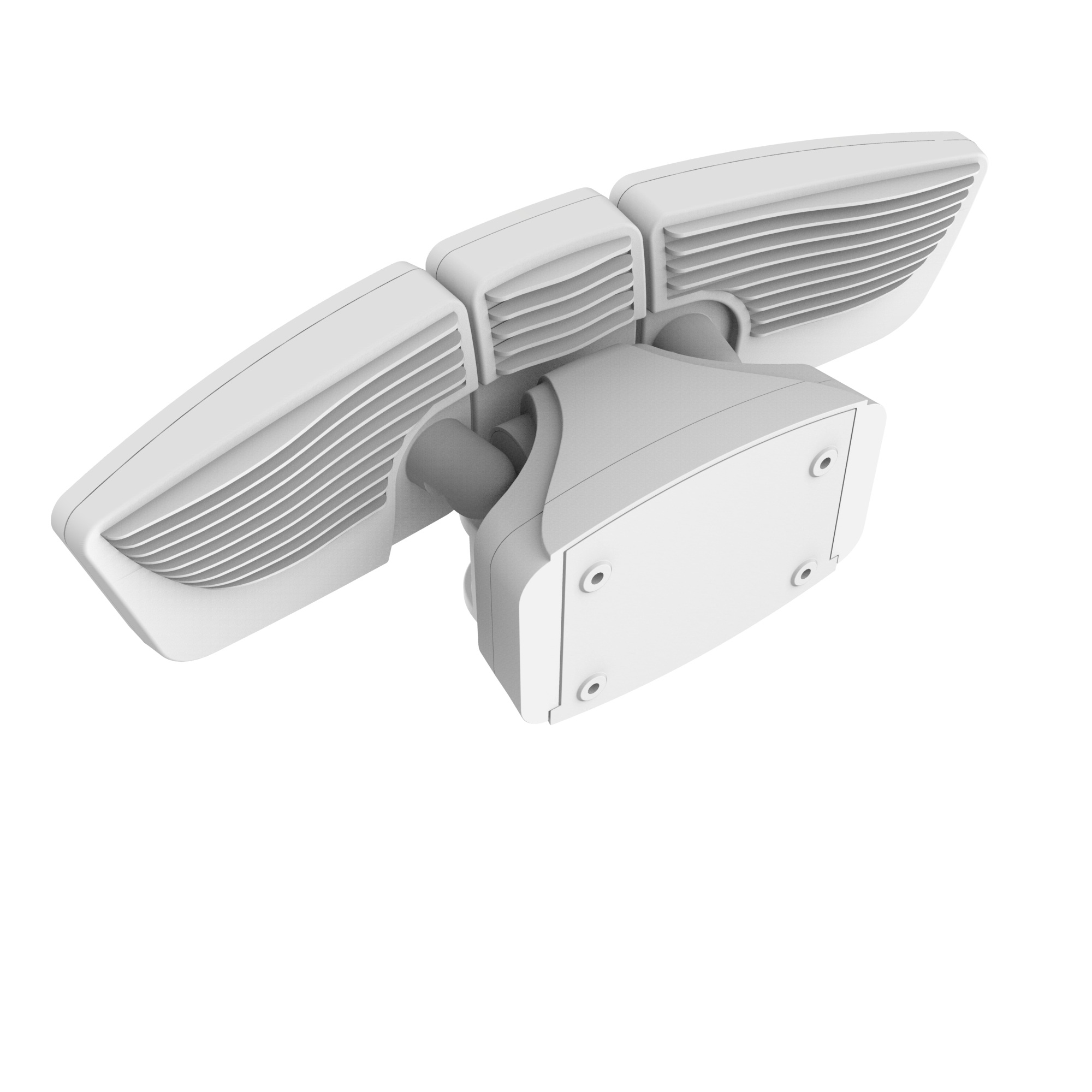

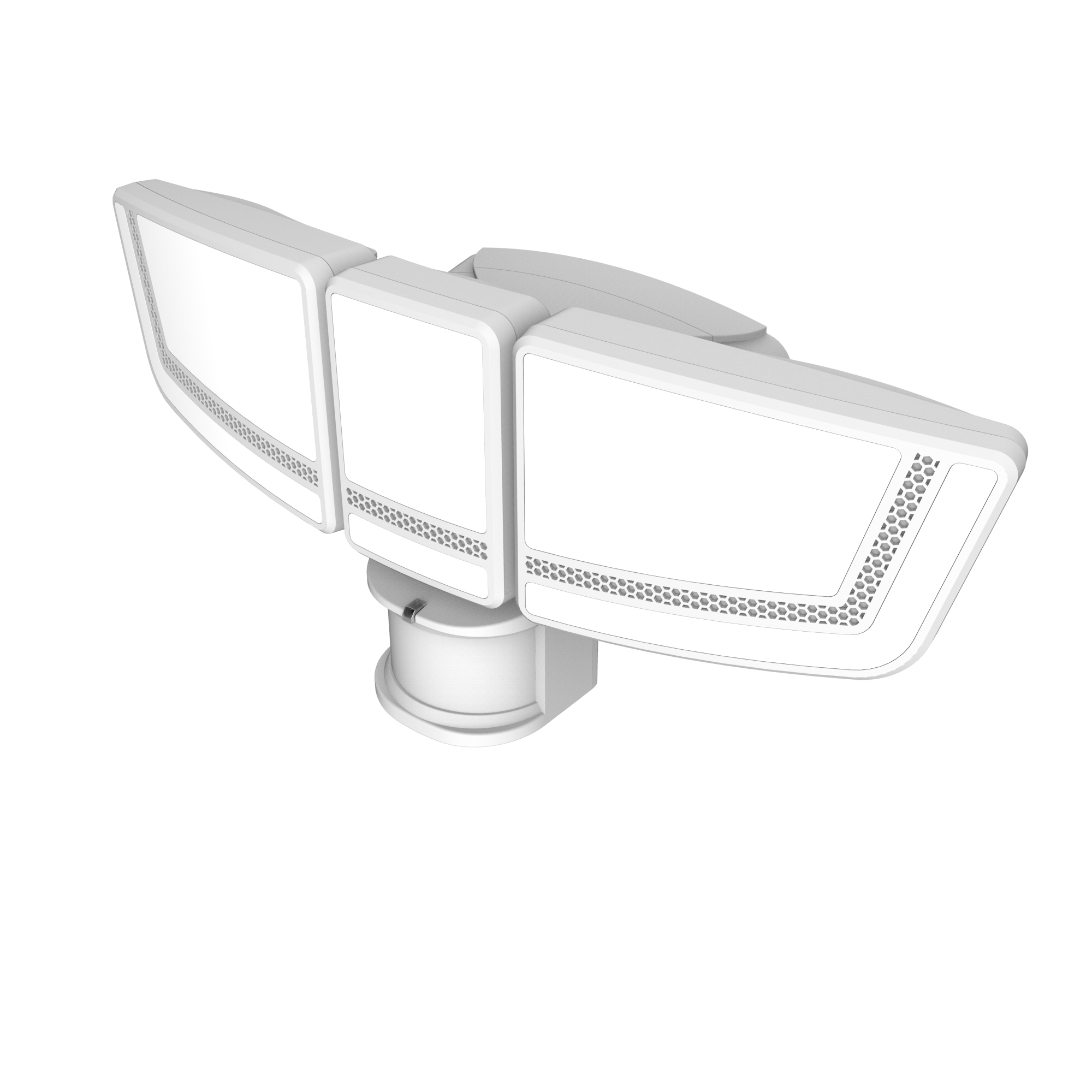

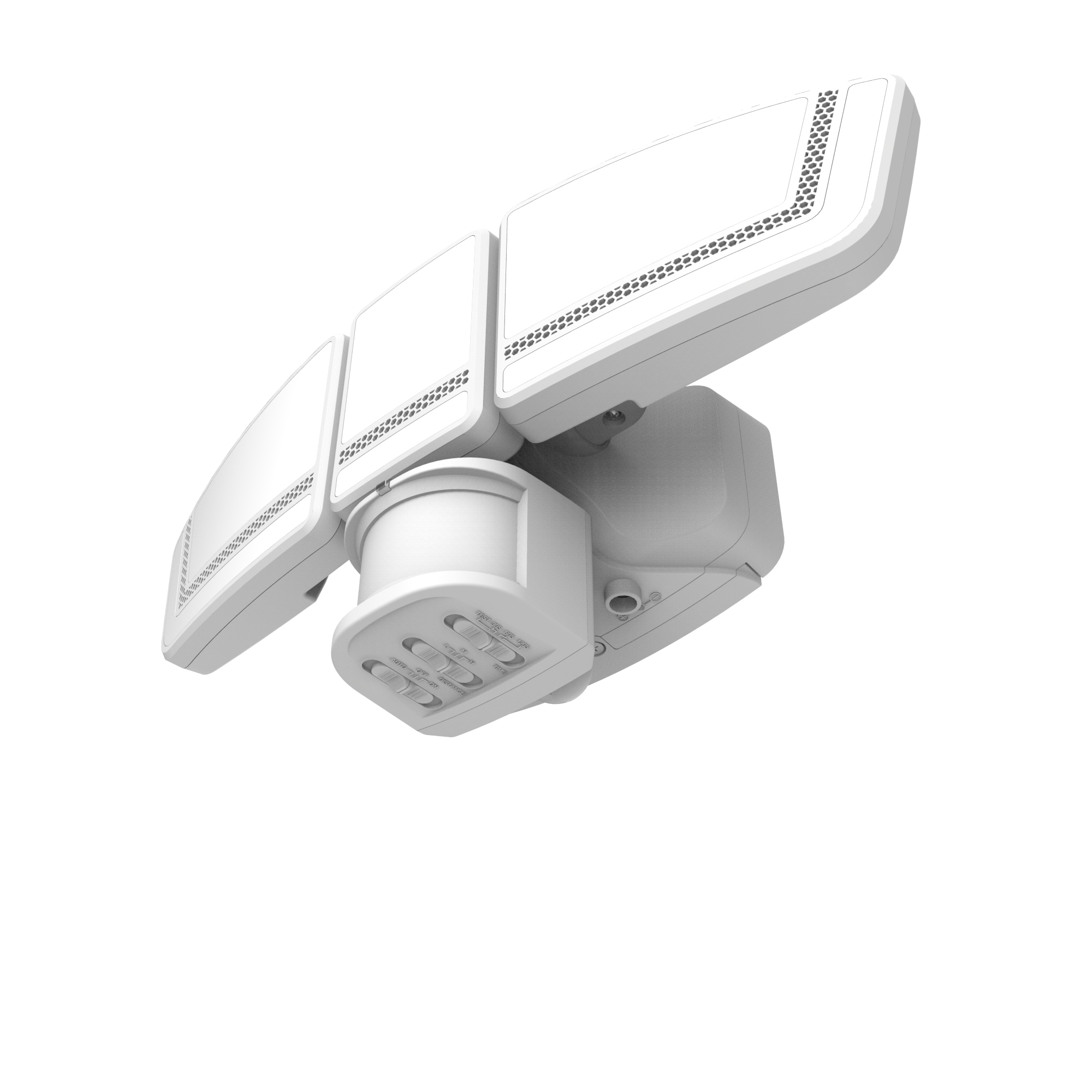

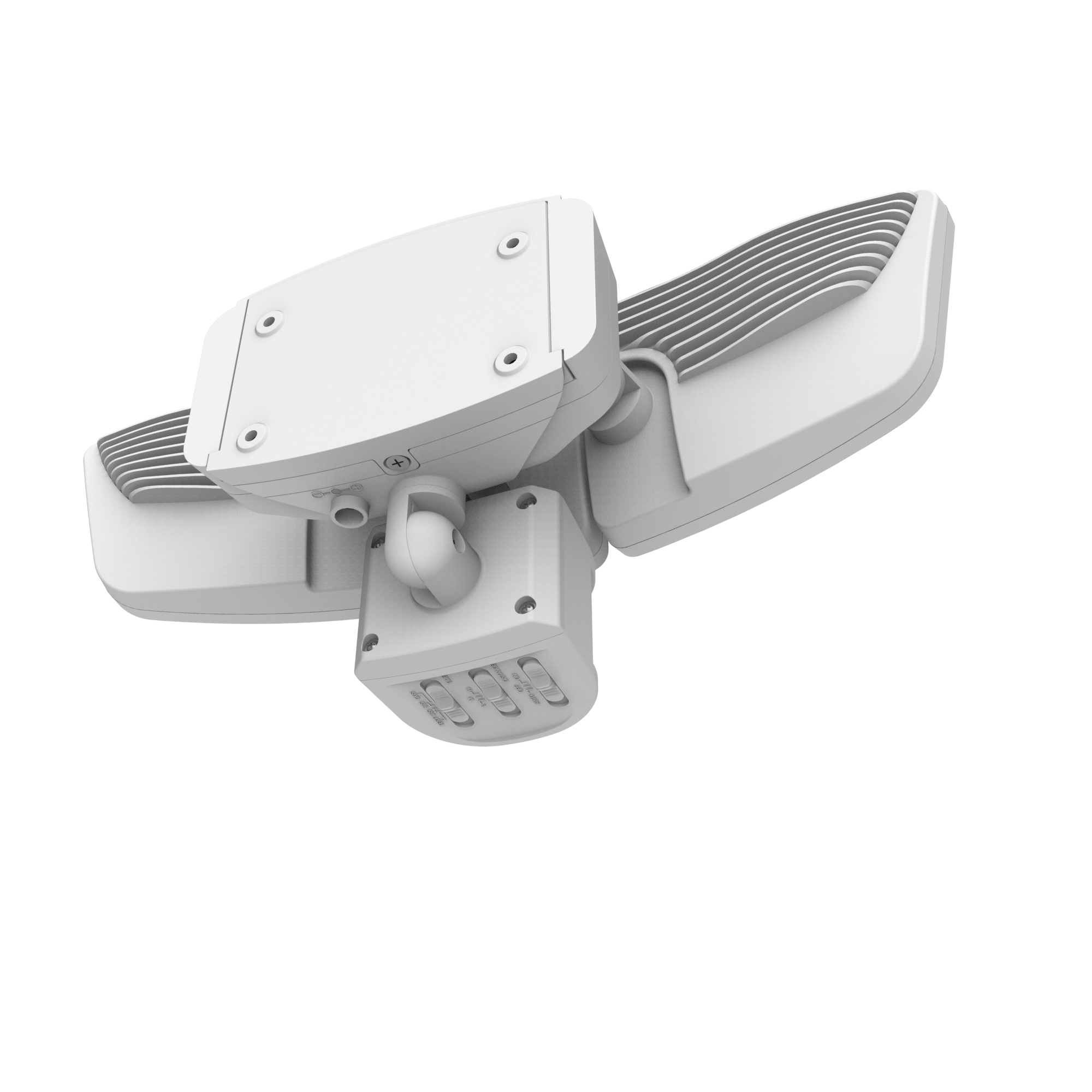

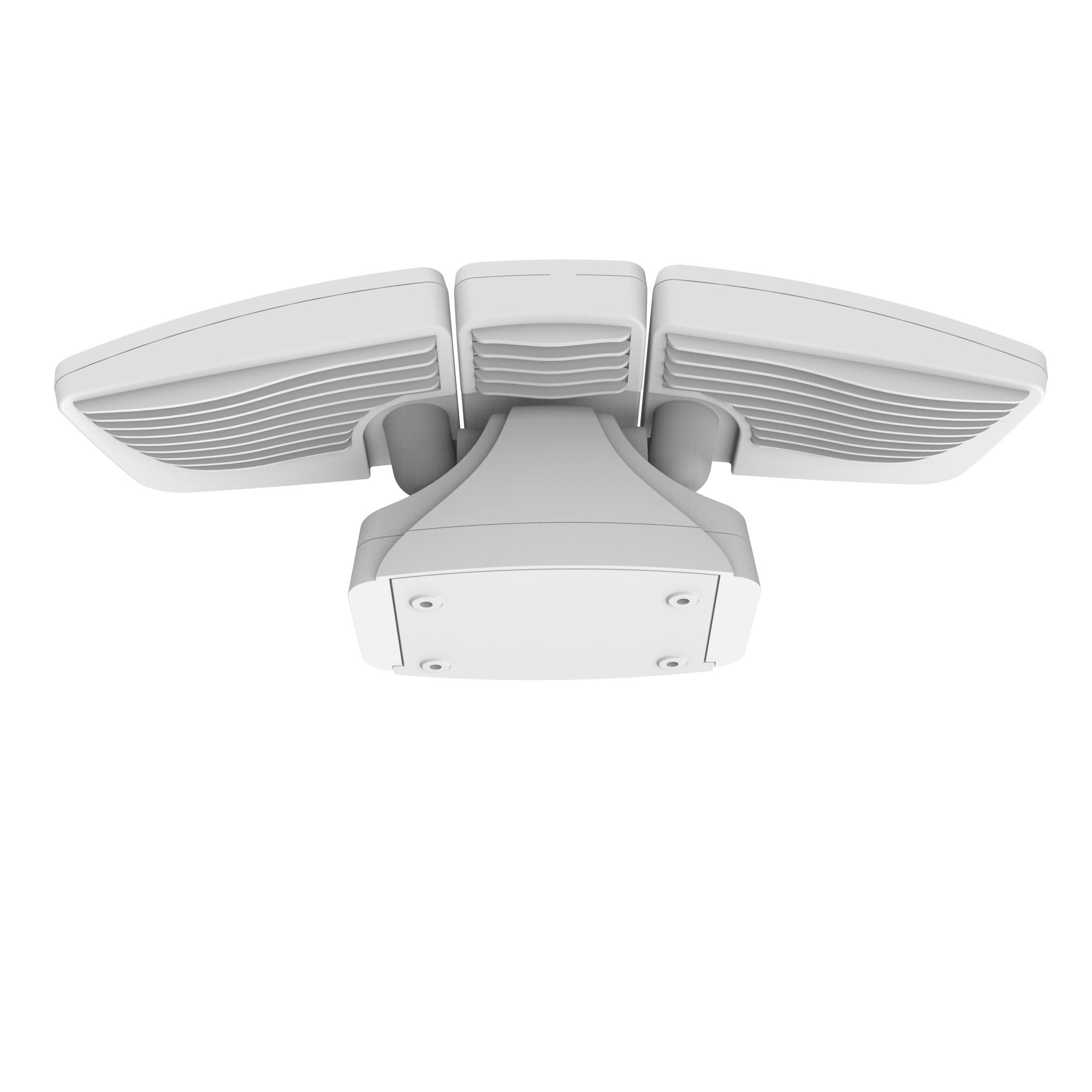

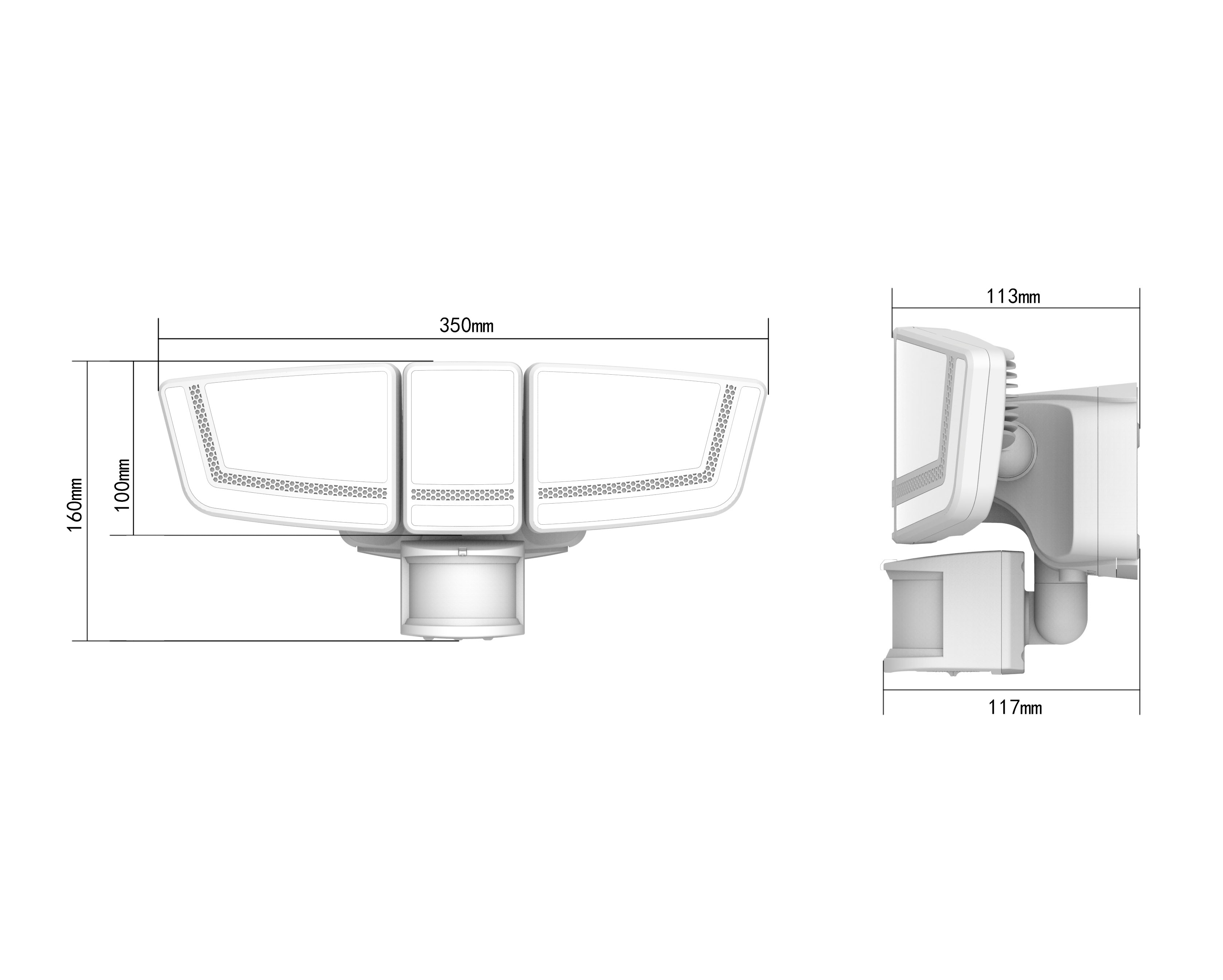

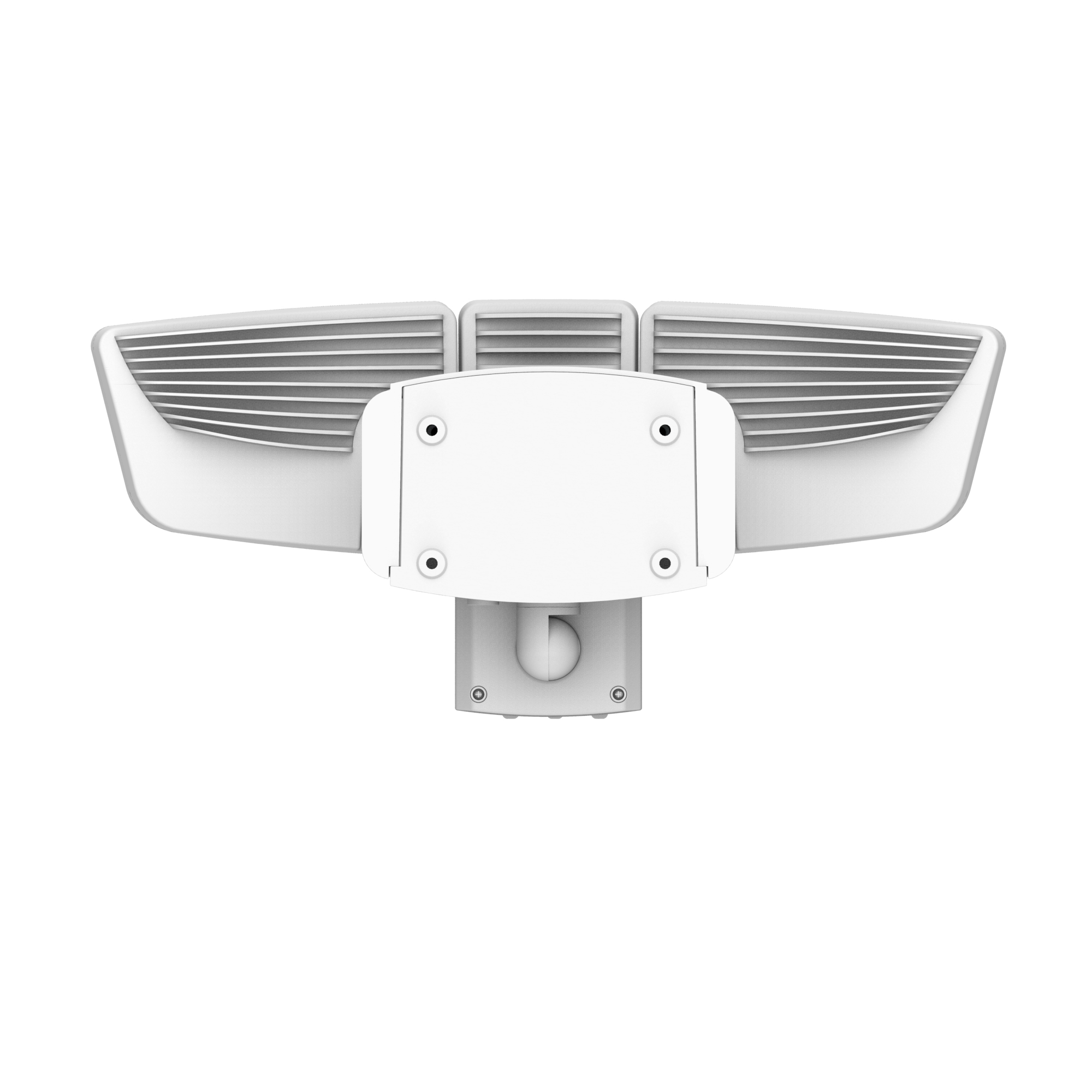

相关项目图片：

项目宣传视频：

主要技术参数：
1.电压：3.7V
2.功率：30W
3.色温范围：6000~7000K
4.LED灯珠数量：主发光区左右灯头各65颗、中灯头30颗、每颗灯珠是0.2W正白光。待机灯区（就是每个灯头下部的窄发光条）左右灯头各16颗。中间灯头8颗、每颗灯珠是0.2W暖白光。
5.流明：2000LM；
6.电锂电池：2节18650的3.7V / 1800mAh
7.感应头：底部是三个推档开关的（TIME / DISTANCE / ON-OFF-AUTO）；最大感应角度：180°
8.感应距离：L档是0~8米，M档是0~13米，H档是0~18米（25°C ~ 30°C环境温度下）
9.感应亮灯时长（延时时长分为4档）：TEST档6秒，感应延时30S / 60S / 120S；
10.IP等级：IP64防水
1. Voltage: 3.7V
2. Power: 30W
3. Color temperature range: 6000~7000K
4. Light source:
Main light-emitting area: 65pcs LEDs on the left and right respectively, 30pcs LEDs in the middle, and each LED is 0.2W white light.
Standby light area(the narrow light-emitting strip at the bottom of each light head): 16pcs LEDs on the left and right lights respectively, 8pcs LEDs in the middle, and each LED is 0.2W warm white light.
5. Lumens: 2000LM
6. Battery: 2pcs of 18650 3.7V 1800mAh lithium battery
7. Sensor head: 3 push switches at the bottom (TIME / DISTANCE / ON-OFF-AUTO); maximum sensing angle: 180°
8. Sensing distance: L is 0~8 meters, M is 0~13 meters, H is 0~18 meters (at 25°C ~ 30°C ambient temperature)
9. Time delay (4 levels): TEST 6 seconds / 30S / 60S / 120S
10. IP rating: IP64 waterproof

技术及工艺创新要点：
技术创新要点：
1.设计双色温发光，分别为正白光的主发光区和暖白光的待机灯发光区，当感应亮灯时，待机灯是灭灯的，只有主发光区亮灯，待机灯是夜间自动开始亮灯的，白天自动灭灯
2.左中右三个灯头的主发光区里总共是160颗2835的0.2W正白光贴片LED，色温6000~7000K。灯珠具体分布为：左灯头65颗LED、中灯头30颗LED、右灯头65颗LED；
3.待机灯（就是每个灯头下部的窄发光条）是暖白光LED。左右灯头里面各有16颗2835的0.2W暖白光贴片LED，中间灯头里面有8颗2835的0.2W暖白光贴片LED，三个灯头总共是40颗待机灯珠。当感应亮灯时，待机灯是灭灯的，只有主发光区亮灯；
4.所以整灯三个灯头，主发光区的灯珠加上待机灯珠，总共是200颗灯珠；
5.整灯最高流明：当电池充满电时，持续亮灯5分钟以后不低于2000LM；
6.灯头里面不需要反光片，直接是LED灯板就够了；
7.2节18650的3.7V / 1800mAh（足容量）的可充电锂电池，并联；

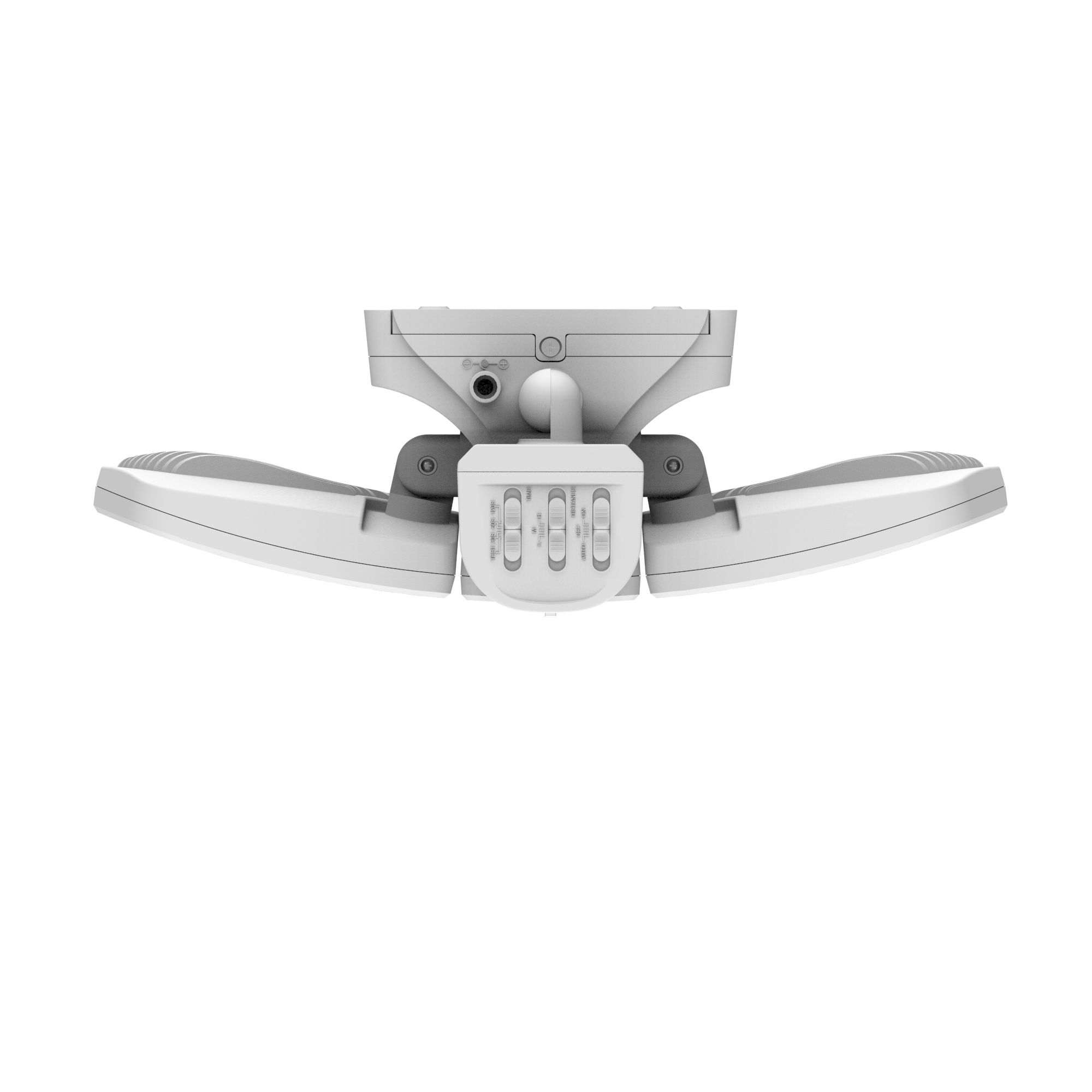

8.新设计外形的感应头，底部是三个推档开关的（TIME / DISTANCE / ON-OFF-AUTO）；
9.最大感应角度：180°
10.最远感应距离：L档是0~8米，M档是0~13米，H档是0~18米（25°C ~ 30°C环境温度下）
11.功能模式：待机亮灯（下面窄灯条）+ 感应亮灯。待机灯是夜间自动开始亮灯的，白天自动灭灯，受感应头里的光敏三极管控制；
12.当电池满电的时候，在ON档的持续亮灯时长等于或大于60分钟；
13.感应亮灯时长（延时时长分为4档）：TEST档6秒，感应延时30S / 60S / 120S；

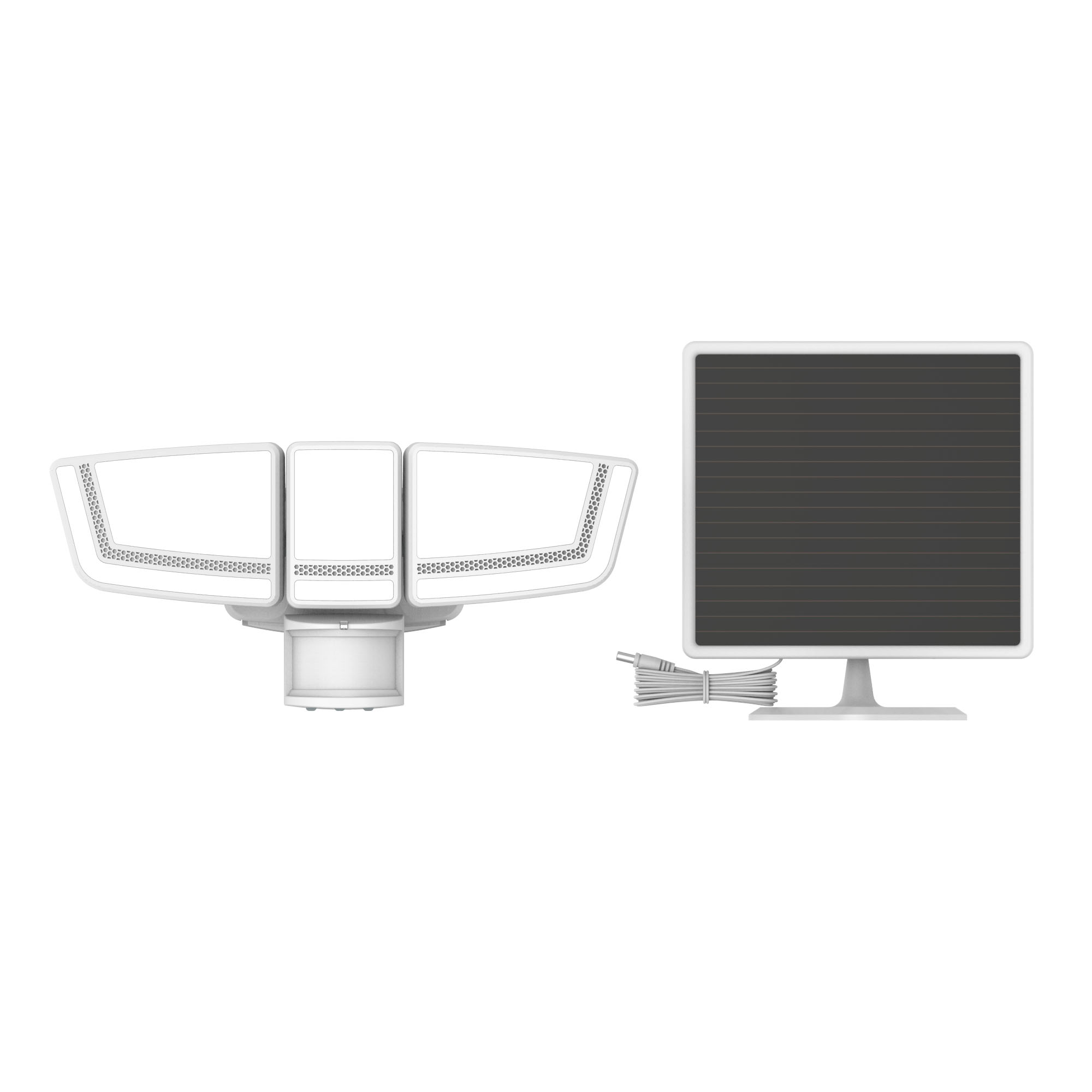

14.每套灯接一个太阳能板供电使用。太阳能板：196 * 176MM的非晶硅太阳能板，5V / 2.1W

工艺创新要点：
1.整个灯体是全塑料结构，外壳采用耐高温、抗老化的优质ABS原材料。
2.壳子防水部位采用耐高温，抗老化的硅胶包胶注塑创新工艺，整机防水防尘等级达到IP64
3.创新设计的3个灯头，通过结构调节实现最佳左右上下多角度旋转，达到最佳的广角照射范围
4.灯体设计了可拆卸安装的电池仓，方便客户更换电池。
Key points of technological innovation:
1. Design dual-color temperature lighting, which are the main light-emitting area with white light and the standby light-emitting area with warm white light. When the lamp is on due to induction, the standby light is off, only the main light-emitting area lights up. The standby light automatically lights up at night, and it will be automatically turned off during the day.
2. Total 160pcs 2835 0.2W white light SMD LEDs in the main light-emitting area, with a color temperature of 6000~7000K. The specific distribution on the 3 lamp heads: 65pcs LEDs on the left, 30pcs LEDs in the middle, 65pcs LEDs on the right.
3. Standby light area(the narrow light-emitting strip at the bottom of each light head) is with warm white LEDs. The specific distribution on the 3 lamp heads: 16pcs LEDs on the left and right respectively, 8pcs LEDs in the middle, total 40pcs 2835 0.2W warm white LEDs. When the lamp is on due to induction, the standby light is off, only the main light-emitting area lights up.
4. So total 3 lamp heads in this item, main light-emitting area LEDs plus the standby light area LEDs, total 200pcs LEDs.
5. The highest lumen of the whole lamp: when the battery is fully charged, it will not be less than 2000LM after 5 minutes of continuous lighting.
6. No reflector inside the lamp head
7. 2pcs 18650 3.7V / 1800mAh (full capacity) rechargeable lithium batteries, connected in parallel;
8. Newly designed sensor head, with three push switches at the bottom (TIME / DISTANCE / ON-OFF-AUTO);
9. Maximum sensing angle: 180°
10. The farthest sensing distance: L is 0~8 meters, M is 0~13 meters, H is 0~18 meters (at 25°C ~ 30°C ambient temperature)
11. Function mode: standby light + induction light. The standby light is automatically turned on at night, and automatically turned off during the day, controlled by the photosensitive triode in the sensor head;
12. When the battery is fully charged, the duration of continuous lighting in the ON position is equal to or greater than 60 minutes;
13. Time delay(4 levels): TEST 6 seconds / 30S / 60S / 120S;
14.Each set of lamps is connected to a solar panel for power supply. Solar panels: 196 * 176MM amorphous silicon , 5V / 2.1W

Key points of process innovation:
1. The entire lamp body is with a full plastic structure, and the outer shell is made of high-quality ABS raw materials with high temperature resistance and anti-aging.
2. The waterproof part of the shell adopts the innovative technology of high temperature resistant and anti-aging silicone overmolding, and the waterproof and dustproof level of the whole lamp reaches IP64.
3. Innovatively designed 3 lamp heads, through structural adjustment to achieve the best left, right, up and down multi-angle rotation to achieve the best wide-angle illumination range
4. The lamp body is designed with a detachable battery compartment, which is convenient for customers to replace the battery.

获奖、专利情况：
已经申请外观专利，专利号：202130679667.X

是否有“智能设计”：
否

申报单位介绍：
广东耀邦新能源股份有限公司是全球领先的太阳能智能照明产品制造商之一，是全球智能家居领域的重要参与者，在太阳能行业具有新兴影响力。15年来，我们一直致力于为全球36个国家和地区提供优质的产品，特别是在欧洲、北美和南美。 Guangdong Yaobang New Energy Co., Ltd. is one of the world's leading manufacturers of solar smart lighting products, and an important participant in the global smart home field, with emerging influence in the solar industry. For 15 years, we have been committed to providing high-quality products to 36 countries and regions around the world, especially in Europe, North America and South America.
