综合介绍或申报理由：

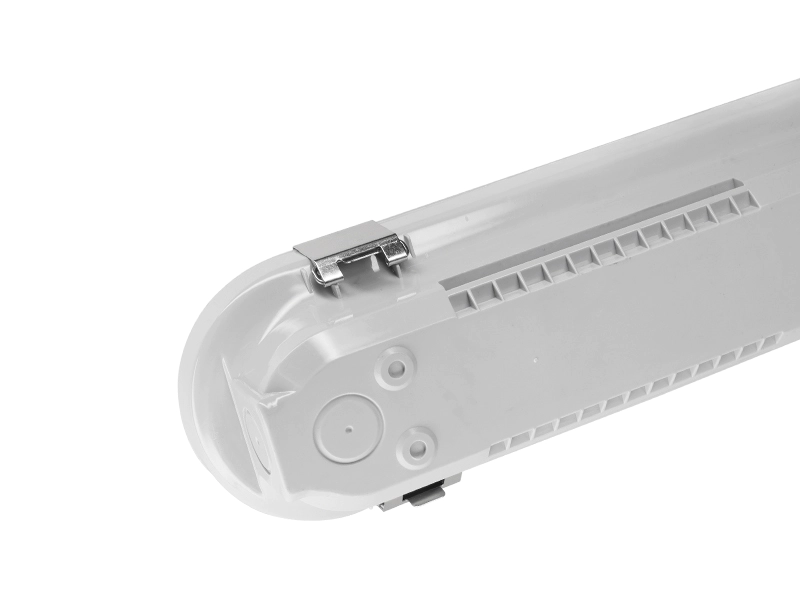

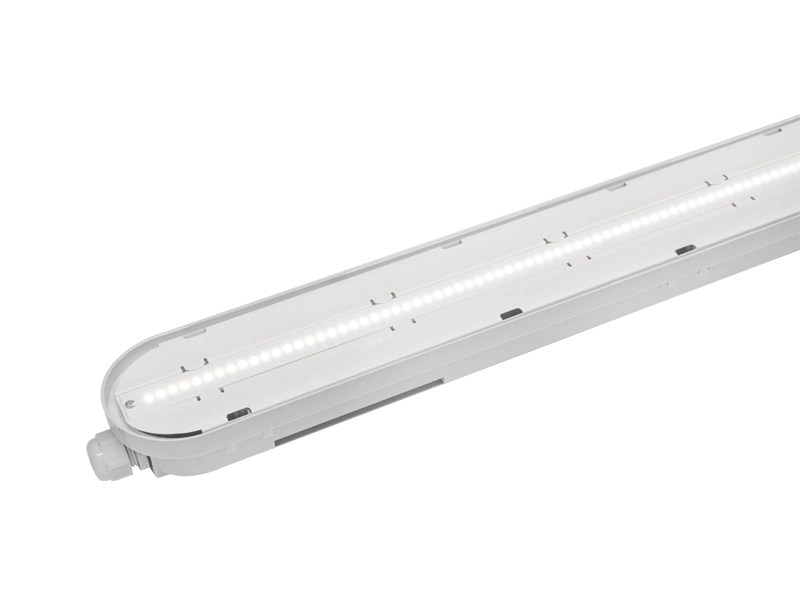

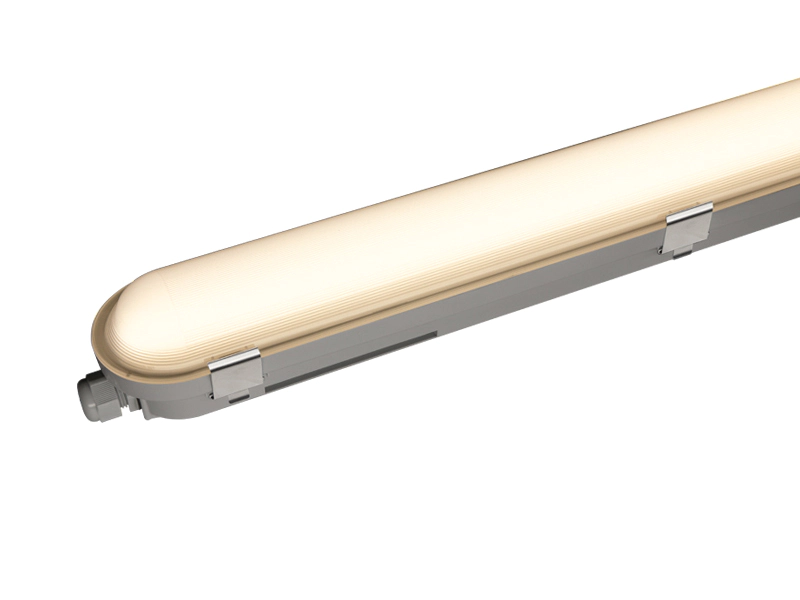

一种带旋转灯脚的三防灯，包括灯座、设于灯座内的灯脚、安装于灯脚上的灯管、与灯座扣合连接的灯罩；灯脚通过定位座与灯座可拆卸连接，定位座成对设置于灯座靠近两端的内壁上，定位座包括与灯座长度方向平行的定位板，定位板靠近灯座端部的一侧设有限位板，定位板上加工定位孔；灯脚包括安装板，安装板底部两侧沿宽度方向延伸形成定位轴，定位轴伸入定位孔内形成转动连接，安装板两侧向限位板方向翻折90°形成压块，压块内侧设有卡扣，安装板以定位轴为中心翻转后、压块端面抵靠在限位板上，卡扣端部的倒钩与限位板侧部扣合连接。该三防灯结构中通过定位座将灯脚可旋转安装在灯脚上，灯脚在进行旋转后可隐藏于灯座内，使用时转动灯脚与定位座扣合定位即可，在运输过程中灯脚不容易丢失或者损坏。 A three-proof lamp with rotating lamp feet, comprising a lamp holder, a lamp foot arranged in the lamp holder, a lamp tube mounted on the lamp foot, and a lamp shade connected with the lamp holder; Removable connection, the positioning seats are arranged in pairs on the inner walls of the lamp holder near both ends, the positioning seat includes a positioning plate parallel to the length direction of the lamp holder, and the side of the positioning plate close to the end of the lamp holder is provided with a limit plate, and the positioning plate is processed Positioning hole; the lamp foot includes a mounting plate. Both sides of the bottom of the mounting plate extend along the width direction to form a positioning shaft. The positioning shaft extends into the positioning hole to form a rotating connection. The inner side of the pressing block is provided with a buckle. After the mounting plate is turned over with the positioning shaft as the center, the end face of the pressing block abuts on the limit plate, and the barb at the end of the buckle is connected with the side of the limit plate. In the structure of the three-proof lamp, the lamp feet are rotatably installed on the lamp feet through the positioning seat, and the lamp feet can be hidden in the lamp seat after being rotated. The middle lamp pin is not easy to lose or damage.

项目缩略图：

相关项目图片：

项目宣传视频：
https://b2b.alighting.com/exh/cixiyuanhui/videodetail-9017.html

主要技术参数：

技术及工艺创新要点：
产品描述：
输入电压/频率： AC220-240V 50/60Hz
安装： 安装在天花板下或表面上简单快捷
外壳/扩散器： PC 材料，可满足 IK08 和 850℃ GWT 要求
驱动器： PHILIPS CERTA/ OSRAM ELEMENT
LED品牌： SMD2835
显色指数： >80
光效： 130lm/W 可选
功率因数： PF>0.95
光束角： 120°
防护等级： IP65
质保： 5年
工作温度范围： -25℃~35℃
认证： ROHS/ CE/ CB/ SAA/ ENEC/ RCM/ SWT850℃
Product description:
Input Voltage/Frequency: AC220-240V 50/60Hz
Installation: Easy and quick to install under ceiling or on surface
Housing/Diffuser: PC material, could meet IK08 and 850℃ GWT requirement
Driver: PHILIPS CERTA/ OSRAM ELEMENT
LED Brand: SMD2835
CRI:>80
Light Efficiency: 130lm/W for option
Power Factor: PF>0.95
Beam Angle: 120°
IP Rating: IP65
Warranty: 5 years
Operating Temp Range: -25℃~35℃
Certificated: ROHS/ CE/ CB/ SAA/ ENEC/ RCM/ SWT850℃

获奖、专利情况：
CN202120792901.4

申报单位介绍：
慈溪市远辉照明电器有限公司成立于2008年，专业生产LED灯，如工矿灯、led三防灯、led隔板灯等。公司位于宁波市慈溪市三北镇三北工业区。占地面积16000平方米，交通便利。 源辉新工区配备注塑、齿盘冲压涂装、灯饰元件、装配线等，具备生产300万套灯具的能力。源辉已通过多项认证，并严格按照ISO9001和CE、GS标准提供产品和服务。 以成为最专业的IP65荧光灯灯具制造商之一为目标，源辉视创新为动力源泉，并继续为之努力。 Cixi Yuanhui Lighting Electric Co., Ltd. was established in 2008, specializing in the production of LED lights, such as high bay lights, led tri-proof lights, led clapboard lights, etc. The company is located in Sanbei Industrial Zone, Sanbei Town, Cixi City, Ningbo City. It covers an area of 16,000 square meters and has convenient transportation. Yuanhui new factory area is equipped with injection molding, gear plate stamping and coating, lighting components, assembly lines, etc., and has the capacity to produce 3 million sets of lamps. Yuanhui has passed a number of certifications and provides products and services in strict accordance with ISO9001 and CE and GS standards. Aiming to become one of the most professional manufacturers of IP65 fluorescent lamps, Yuanhui regards innovation as the source of power and continues to work hard for it.
