综合介绍或申报理由：
可实现智能数据管理的小路灯电源，该产品通过专利电路简化电路，降低损耗、减小电源体积，可适配不同灯具安装，减少灯具厂家备货种类，降低仓储与运输成本，并实现高可靠性能，降低损耗，保证灯具品质，从源头上减少资源浪费。同时能为灯具提供传感器接口，进一步实现节能减排需求。 This built-in outdoor LED driver with intelligent data management function, has a patented simplified circuit to reduce energy loss and to decrease in volume for the adaption of different luminaires. For lighting manufacturers, it can reduce the types of drivers in stock, reduce warehousing and transportation costs, achieve highly reliable quality, reduce the energy loss, ensure the quality of luminaire so as to reduce the waste of resources from the source. At the same time, it can provide sensor interfaces for luminaires to further realize the needs of energy saving and emission reduction.

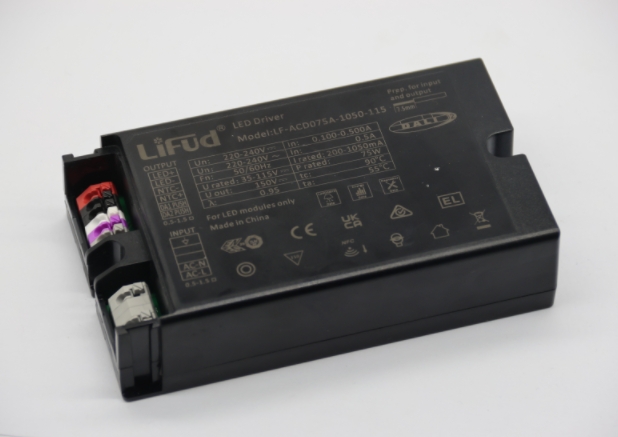

产品缩略图：

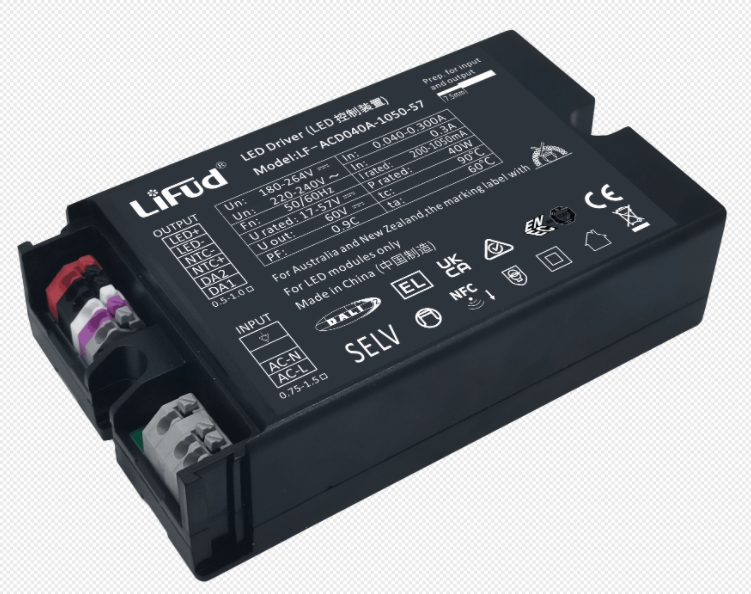

相关产品图片：

主要技术参数：
基本参数
输入：220-240Vac； 输出电流：250-1050mA；输出功率：10-165W
效率：94.8%；PF：＞0.97
质保：8年
Basic parameters:
Input voltage: 220-240Vac; output current: 250-1050mA; output power: 10-165W; efficiency: 94.8%; PF: >0.97; warranty: 8 years
性能特点：
1、支持DALI调光、按压(PUSH)调光、分时调光
2、可通过DALI参数盒、NFC编程方式调节输出电流及参数配置
3、支持DALI Part 251（灯具数据查询功能）、252（能源报告读取）、253 （诊断与维护数据读取）
4、全方位保护：输入过压保护，输入欠压保护，开路保护，过温保护，短路保护
5、支持外接NTC电阻，监测灯具温度
6、防雷保护：L-N 6KV，L/N-PE 10KV
7、符合Zhaga Book 13标准
8、IP20 防护设计，适用于户外IP >54 Class I 和 Class II灯具应用


Features:
1.Support DALI DT6 & PUSH dimming and time dimming
2.Support DALI-2 ext. Part 251, 252, 253
3.Output current and parameters set via NFC or Lifud Programmer
4.Protective features: input over voltage, input under voltage, open-circuit, over temperature, short circuit
5.Intelligent temperature guard via external NTC resistor
6.Input Surge Protection: L-N 6kV, L/N-PE 10kV
7.Comply with ZHAGA Book 13 standard
For luminaires of protection class I and protection class II

技术及工艺创新要点：
1、采用发明专利检测电路，可以检测、区分多种电气参数信号。让电源电路更简洁，提高性能参数，相比市场同类产品具有较大的优势。
2、通过对电路结构中的信号检测，可获得照明灯具的出厂信息、能耗统计数据、诊断维护数据，有利于照明灯具智能化系统应用，实现灯具的再节能。
1. Use the patented circuit to detect and distinguish various electrical parameter signals, which makes the driver circuit more concise and improves the performance with greater advantages than competitive products on the market.
2. By detecting signals in the circuit structure, factory information, energy consumption statistics, and diagnostic and maintenance data of lighting fixtures can be obtained, which is conducive to the application of intelligent lighting system and the realization of energy-saving lighting fixtures.

实际运用案例和用户评价意见：
新品上市，热销中
This new product is just launched and on hot sell.

获奖、专利情况：

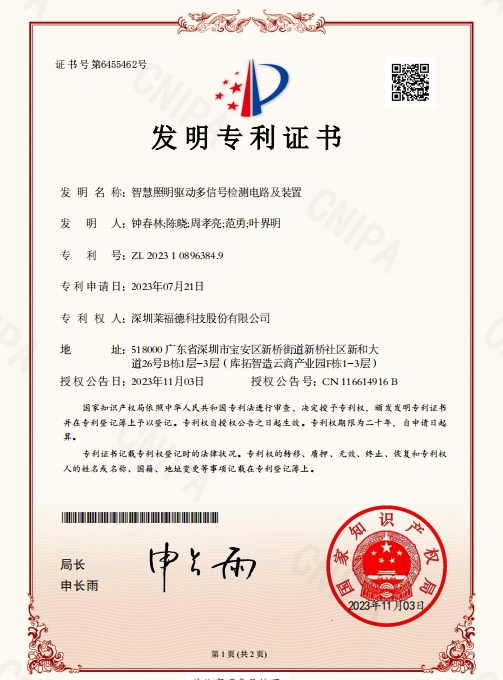

发明专利（CN116614916A）：智慧照明驱动多信号检测电路及装置

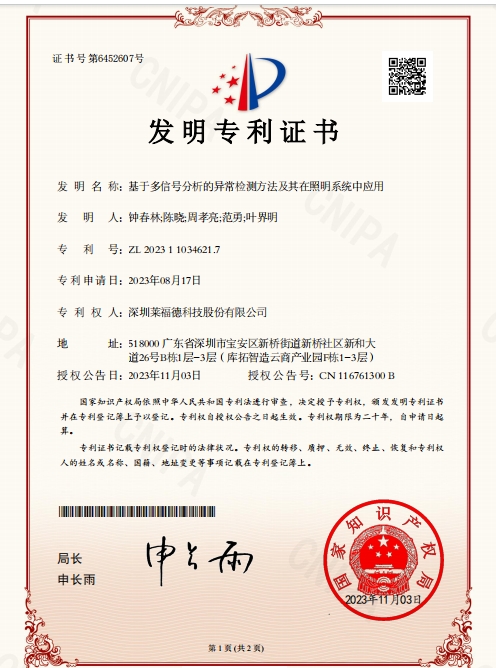

发明专利（CN116990714A）：一种照明灯具运行数据检测电路及检测装置
Invention patent (CN116614916A): Multi-signal detection circuit and device of intelligent lighting driver
Invention patent (CN116990714A): an operation data detection circuit and detection device for lighting fixtures

申报单位介绍：
莱福德创立于2007年，秉承“踏踏实实做人、踏踏实实做事、踏踏实实做产品”的价值理念，立志成长为全球领先的LED驱动与智能系统服务商。致力于把性能卓越和高可靠性的LED驱动电源与智能照明系统带入商业、家居、工业、道路等各个需要照明的环境，为世界的绿色照明和人本照明贡献莱福德人的力量。 总部位于深圳，拥有中山、四川两大产业园，并设立深圳、成都、中山3大研发中心，建有UL、DALI认证实验室，并与大学高校保持产学研合作交流，可为企业自身产品开发和客户配套提供超值服务。“莱福德LIFUD”品牌先后荣膺“国家专精特新小巨人企业”“深圳知名品牌”“广东省著名商标”“广东省工程技术中心”“四川省著名商标”“四川省技术中心”“欧洲LED专业研讨会（LpS）最佳产品奖”、“智能电源品牌TOP 10”、“中国LED电源企业国际竞争力TOP10”“备受雇员尊敬企业”等众多肯定。 创业16年来，莱福德坚持围绕客户需求持续创新，通过引领的技术、优质的产品和贴近的服务，为欧洲、美洲、东南亚、中东等全球70多个国家和地区，全球10000多家客户持续创造价值。时至今日，世界范围内每0.6秒就有一个LIFUD电源被安装使用。在持续成长的道路上，我们期望且相信，时代的年轮会将我们推向更远的地方，与更多的客户共同探索作为一家科技企业的终极使命——使能源更高效、更清洁。 Since the establishment of Lifud in 2007, it has been aspiring to become Leading Provider for LED Driver and Intelligent System and adhering to the core value of “customer-first with integrity, responsibility and dedication”and put them into practice. Moreover, it is committed to bringing LED drivers with excellent performance and high reliability into various lighting scenarios, such as commercial, residential, industrial, and street lighting, contributing to the world's green lighting and human-centric lighting. Headquartered in Shenzhen, China, Lifud has 2 industrial parks in Zhongshan, Guangdong Province and in Sichuan Province, 3 R&D centers in Shenzhen and Chengdu and Zhongshan, UL&DALI certified laboratories and CNAS Laboratory. Lifud has been maintaining the cooperation and exchanges with scientific research institutions and institutions of higher education, which can provide value service for its own LED driver development and customer supporting service. Lifud has attained multiple certificates, including “National ‘Specialized, Fine, Unique and Innovative’ Small Giant Enterprise”, “Shenzhen Famous Brand”, “Guangdong Famous Brand”, "Guangdong Provincial Engineering Technology Center", "Sichuan Provincial Technology Center", “Sichuan Famous Brand”, “LpS Digital Award Best Product”, “Top 10 Intelligent Driver Brands”, “TOP10 Global Competitiveness of China’s LED Driver Enterprises", “Guangdong Annual Best Employer” and so on. Over the past 16 years, all Lifud staff have been forging ahead with determination and hard work. Through leading technology, high-quality LED drivers and intimate service, Lifud has been continuously creating value for over 10000 clients around the world. Up to now, every 0.6s, there is a light being lightened by Lifud. In the future, Lifud will adhere to its brand core value of “technology, quality and service”. Lifud puts strivers oriented for their richer life, stronger abilities and more success and insists customer-first to create value for them with excellent quality, continuous innovation and perfect service. We will build a win-win ecosystem with customers, customers’ customers, supplier partners, universities, research institutions, etc. to promote technological progress and industrial development. As a science-and-technology enterprise, it is Lifud’s supreme pursuit to make energy more efficient and cleaner with its clients. And Lifud anticipates and believes that through their mutual efforts Lifud and its clients will have a more brilliant future!
