申报项目名称(中文):节能型高光效恒流明高天棚灯
申报项目名称(英文):Energy saving high luminous efficiency constant lumen high ceiling lamp
申报单位名称(中文):杭州萧科节能科技有限公司
申报单位名称(英文):HangZhou XiaoKe Energy Saving Technology Co., Ltd.
完成时间:2024-09-06
进入市场时间:2024-10-08
综合介绍或申报理由:
此灯整体光效可达到214lm/w以上,通过预置光衰补偿模块,对驱动电源的输出电流进行自动调节,可弥补LED灯具在一定工作年限后的光通亮衰减,使整灯输出光通亮相对稳定的工作效果。
The overall luminous efficiency of this lamp can reach more than 214lm/w. By setting a preset light attenuation compensation module, the output current of the driving power supply is automatically adjusted to compensate for the light attenuation of LED lamps after a certain working age, making the overall output light brightness of the lamp relatively stable.

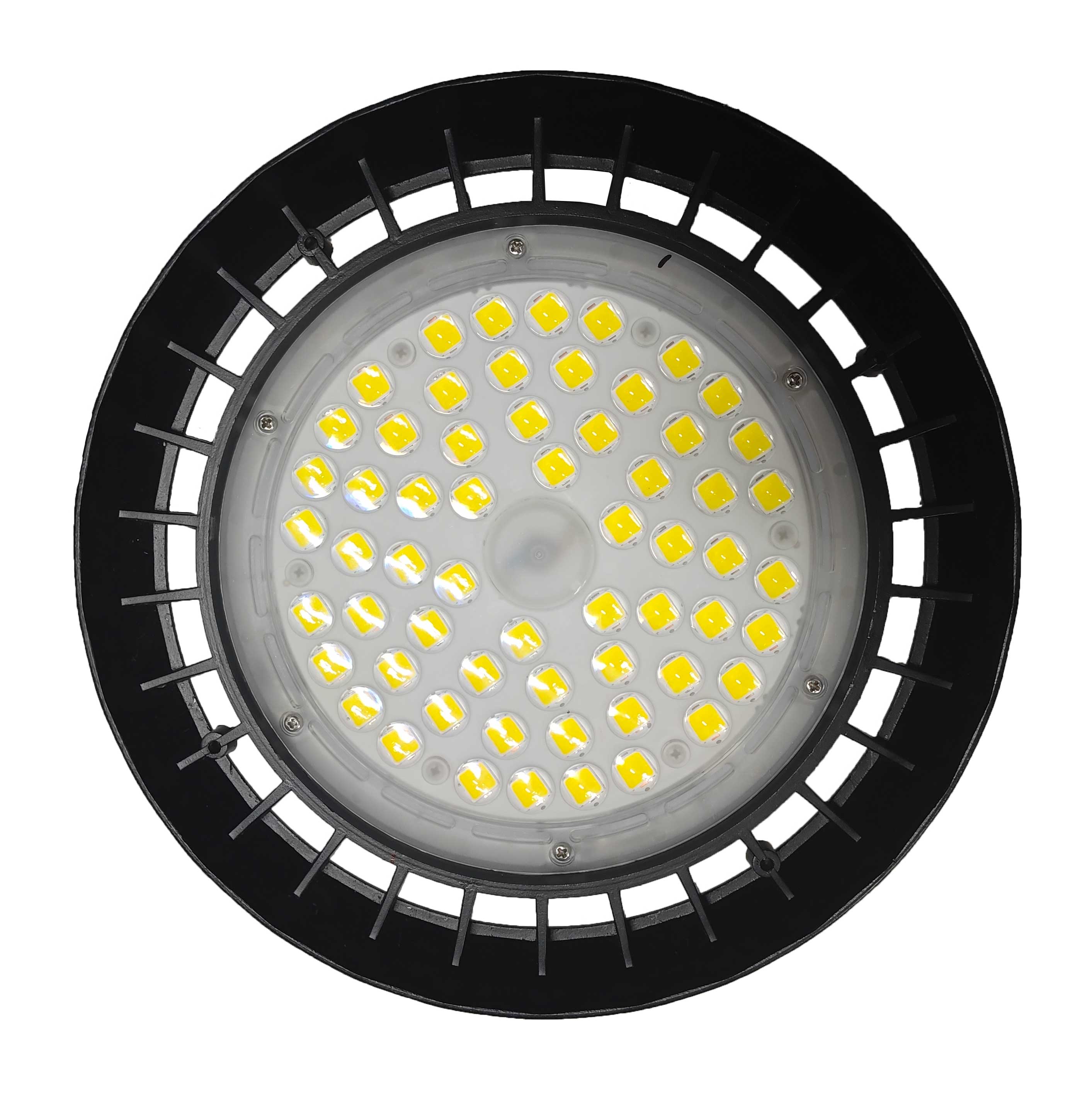

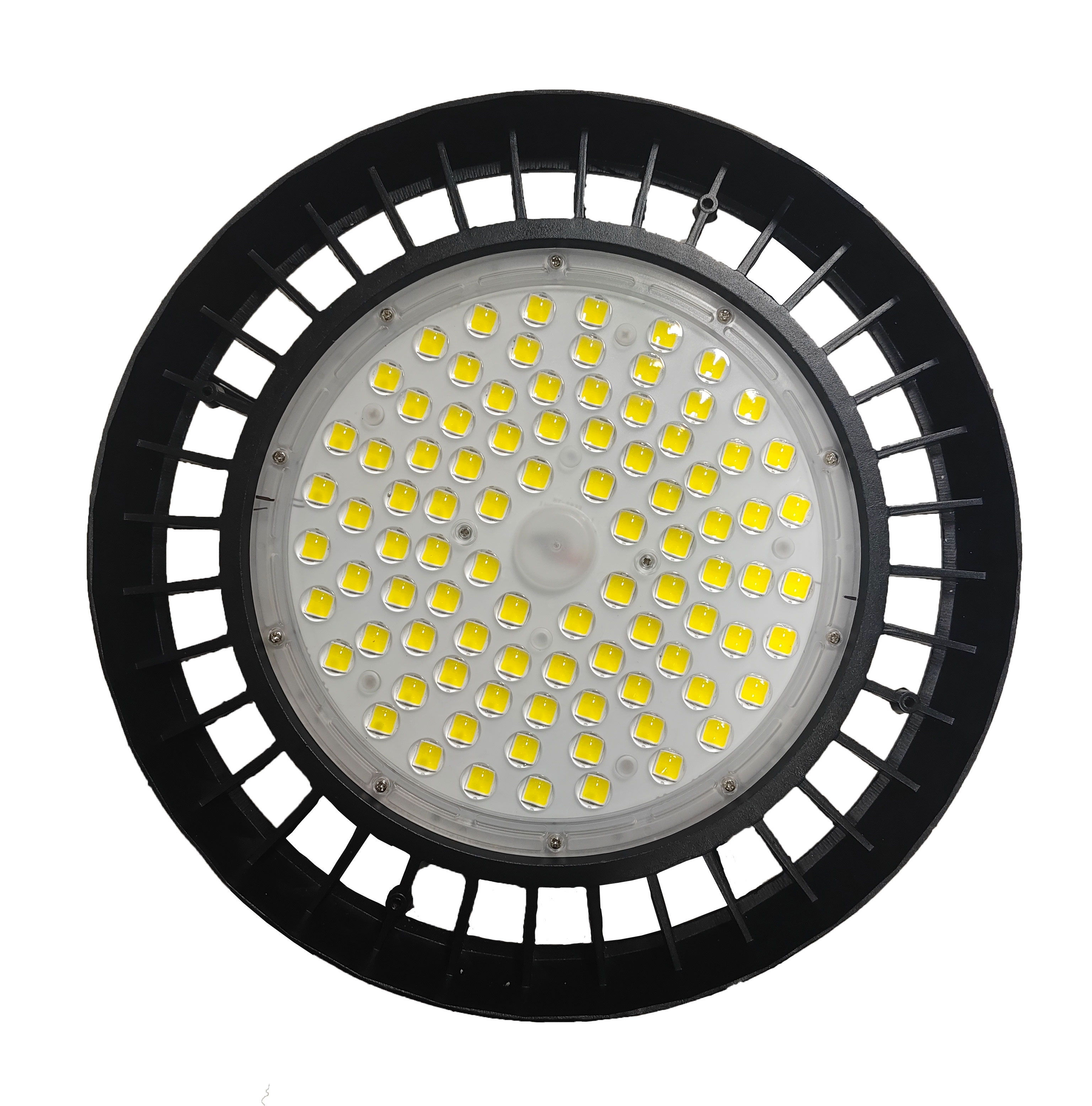

产品缩略图:

项目宣传视频:
无
not have
主要技术参数:

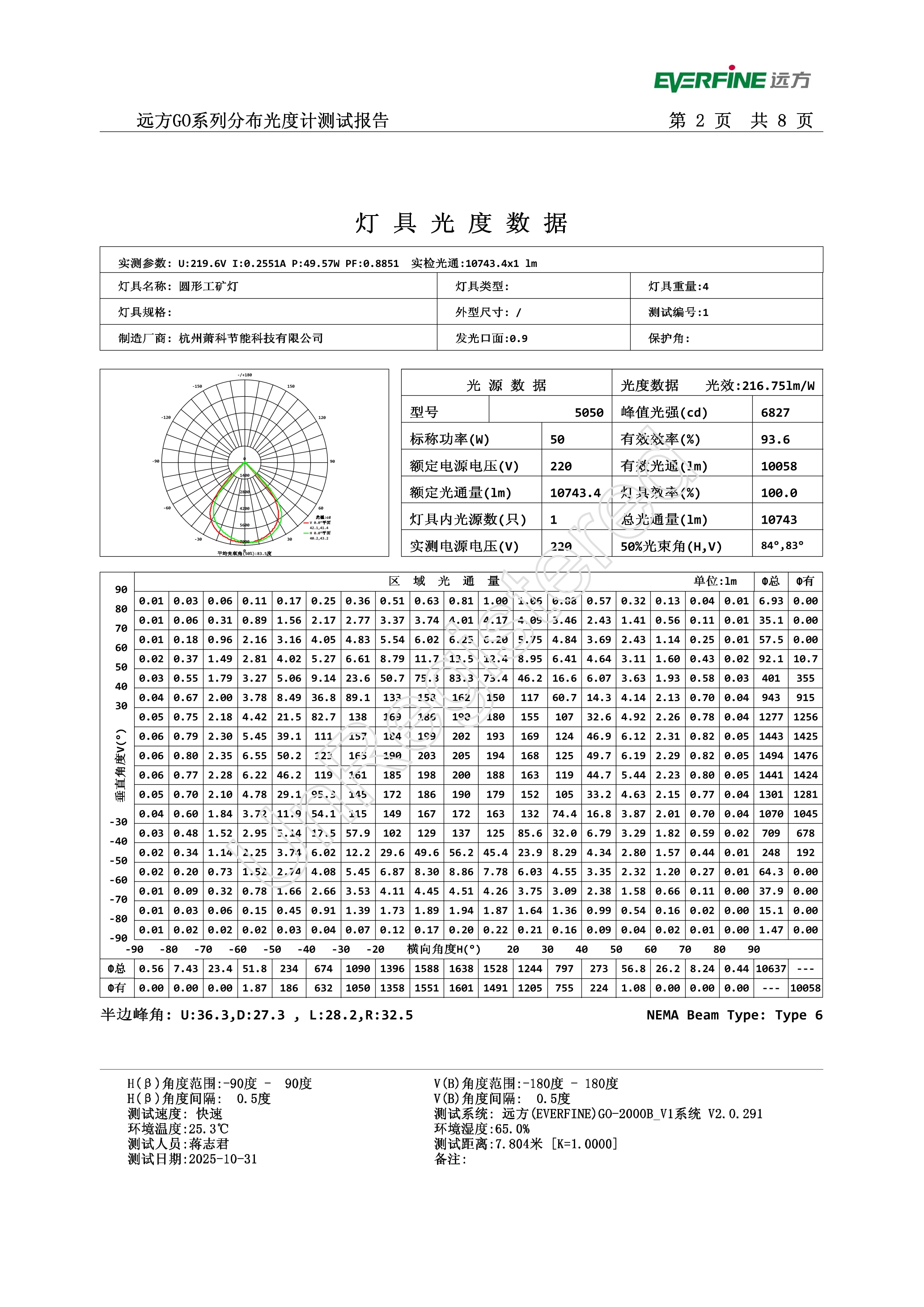

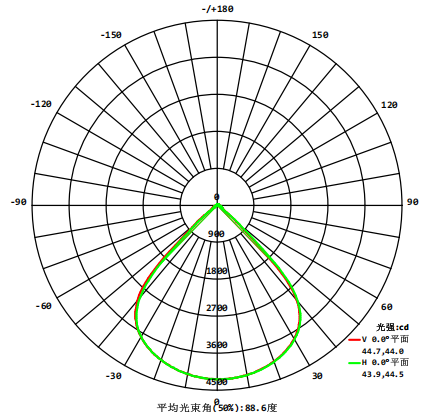

产品1,型号:XK-GKD-35W-60P-A220,功率:34W,光通量:7343lm,光效:215.66lm/W,发光角度:88.6°,色温:5000K,防护等级:IP65

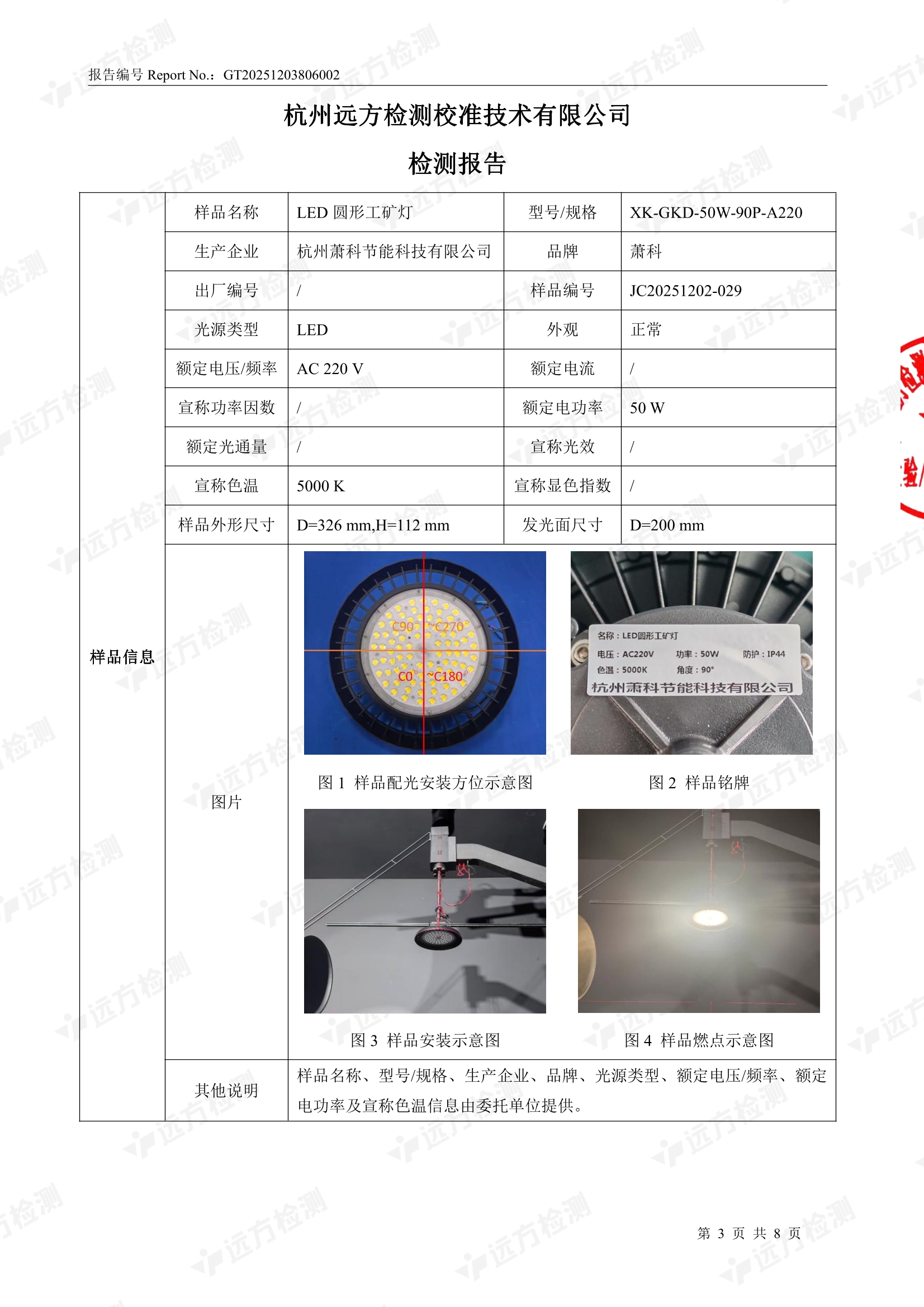

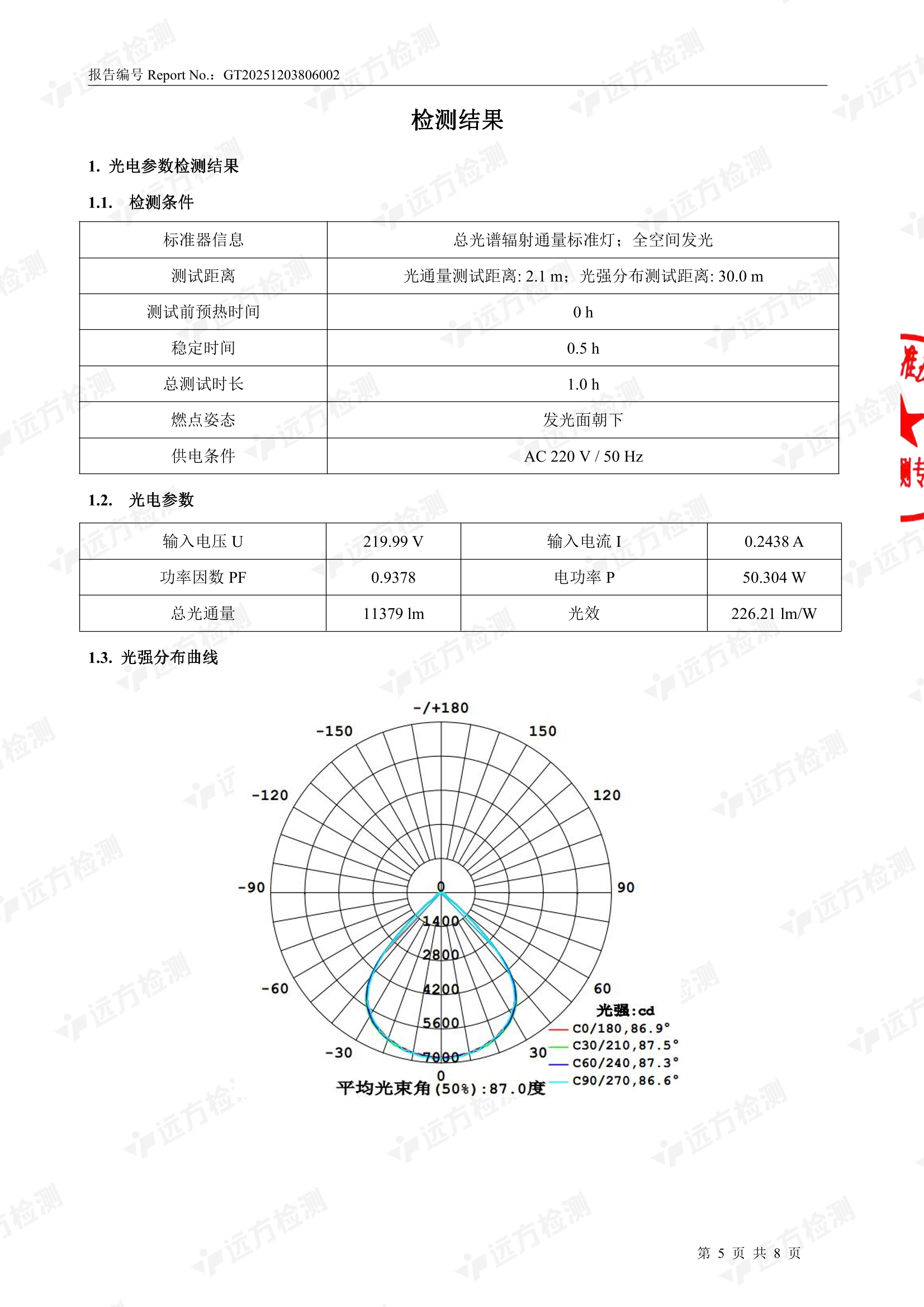

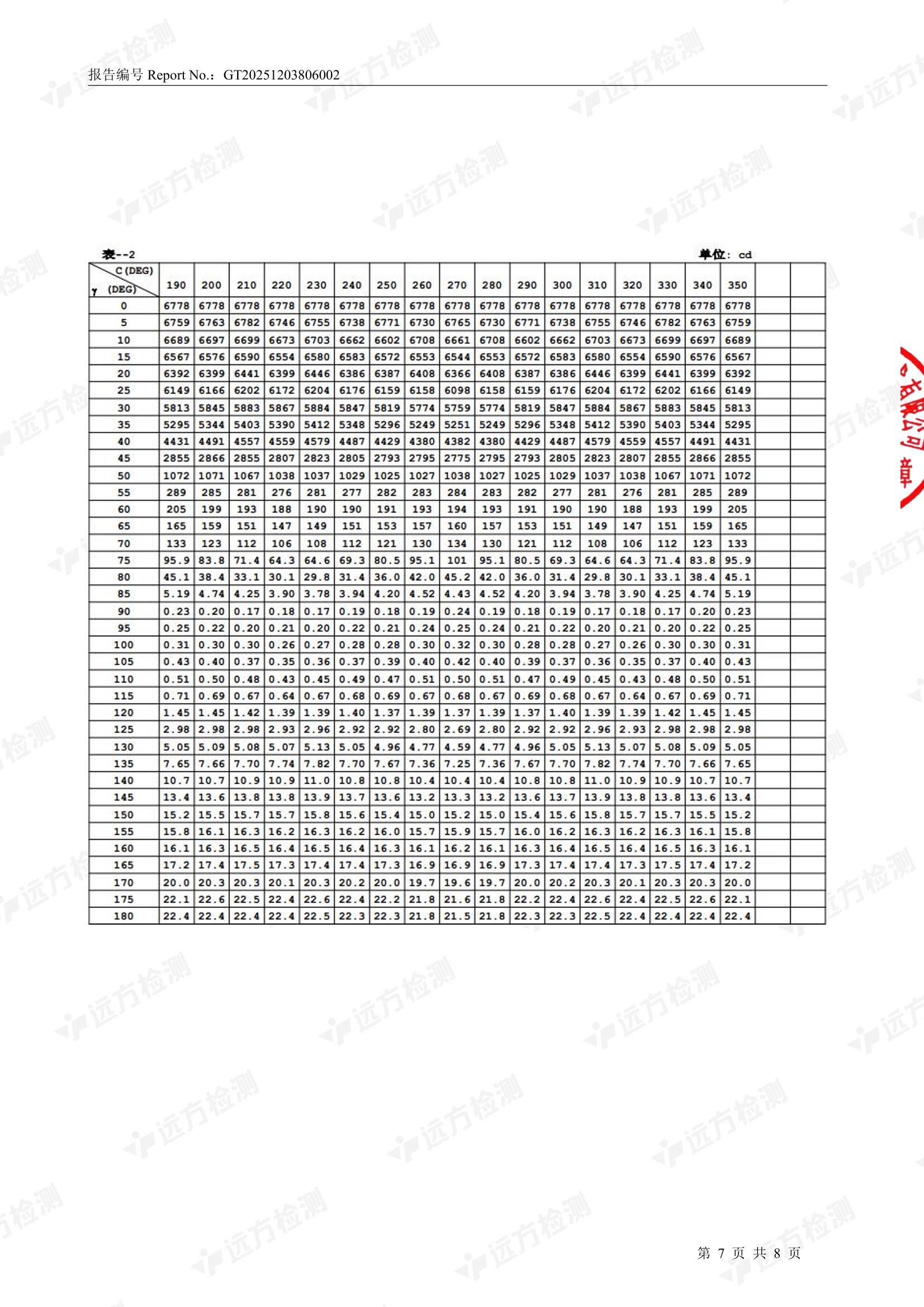

产品2,型号:XK-GKD-50W-90P-A220,功率:50W,光通量:11379lm,光效:226.21lm/W,发光角度:87°,色温:5000K,防护等级:IP65
产品3,型号:XK-GKD-100W-90P-A220,功率:100W,光通量:21700lm,光效:217lm/W,发光角度:90°,色温:5000K,防护等级:IP65
Product 1, Model: XK-GKD-35W-60P-A220, Power: 34W, Luminous flux: 7343lm, Light efficiency: 215.66lm/W, Light emission angle: 88.6 °, Color temperature: 5000K, Protection level: IP65
Product 2, Model: XK-GKD-50W-90P-A220, Power: 50W, Luminous flux: 11379lm, Light efficiency: 226.21m/W, Light emission angle: 87 °, Color temperature: 5000K, Protection level: IP65
Product 3, Model: XK-GKD-100W-90P-A220, Power: 100W, Luminous flux: 21700lm, Light efficiency: 217lm/W, Light emission angle: 90 °, Color temperature: 5000K, Protection level: IP65




技术及工艺创新要点:
光效可达到215lm/W以上,驱动电源具备光衰补偿模块,可使灯具一直输出稳定的光通量,寿命与之前对比提升30%以上。
The light efficiency can reach over 215lm/W, and the driving power supply is equipped with a light attenuation compensation module, which can continuously output stable light flux, and the lifespan is increased by more than 30% compared to before.
与国内外同类产品或同类技术的比较情况:
在光效方面优于国际一线品牌的主流产品(通常在180-200lm/W);国内多数LED灯具缺乏动态补偿功能,依赖固定电流设计,后期光衰明显,通过预置光衰补偿模块,弥补LED光衰,实现光通量恒定输出。
In terms of light efficiency, it is superior to mainstream products of international first-line brands (usually between 180-200lm/W); Most domestic LED lighting fixtures lack dynamic compensation function and rely on fixed current design, resulting in significant light attenuation in the later stage. By pre setting light attenuation compensation modules, LED light attenuation can be compensated for to achieve constant output of luminous flux.
经济评价分析:
无
not have
实际运用案例和用户评价意见:

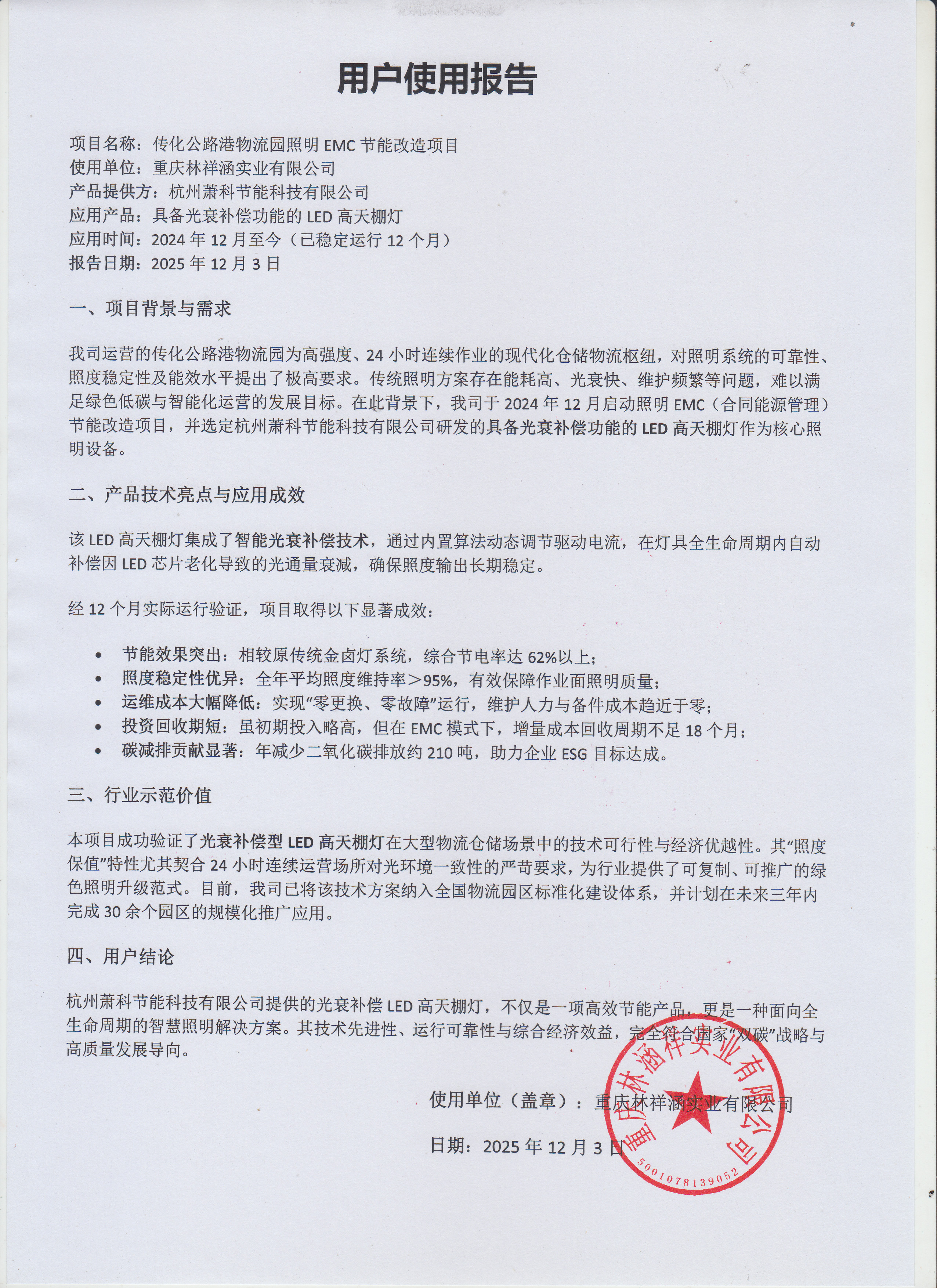

案例:传化物流园仓库面积达3万平方米,需24小时不间断作业。原金卤灯照明系统存在能耗高、照度不均、频闪严重、维护频繁等问题,直接影响分拣效率与员工工作环境。采用本公司的超高光效且具备光衰补偿功能的LED高天棚灯后,能耗降低 70% 以上,年节省电费超50万元。
用户评价:本项目成功验证了光衰补偿型 LED 高天棚灯在大型物流仓储场景中的技术可行性与经济优越性。其“照度保值"特性尤其契合 24 小时连续运营场所对光环境一致性的严苛要求,为行业提供了可复制、可推广的绿色照明升级范式。目前,我司已将该技术方案纳入全国物流园区标准化建设体系,并计划在未来三年内完成 30 余个园区的规模化推广应用。
Case: The warehouse area of Chuanhua Logistics Park reaches 30000 square meters and requires 24-hour uninterrupted operation. The original metal halide lighting system has problems such as high energy consumption, uneven illumination, severe flicker, and frequent maintenance, which directly affect sorting efficiency and employee working environment. After adopting our company's highly efficient LED ceiling lights with light attenuation compensation function, energy consumption has been reduced by more than 70%, and annual electricity costs have been saved by over 500000 yuan.
User evaluation: This project has successfully verified the technical feasibility and economic superiority of the light attenuation compensation type LED high ceiling light in large-scale logistics and warehousing scenarios. Its "illumination preservation" feature is particularly suitable for the strict requirements of 24-hour continuous operation sites for consistent lighting environment, providing the industry with a replicable and promotable green lighting upgrade paradigm. Currently, our company has incorporated this technology solution into the national logistics park standardization construction system and plans to complete the large-scale promotion and application of more than 30 parks in the next three years.

获奖、专利情况:
无
not have
是否有“智能设计”:
恒流明
Constant lumen
申报单位介绍:
杭州萧科节能科技有限公司是一家集研发、设计及市场运营于一体的高新技 术企业,专注于储能照明产品及物联网技术解决方案的开发与创新。公司拥有一 支强大的技术研发团队,致力于构建先进的智慧型储能照明系统,强化城市道路 照明在紧急情况下的快速反应能力,优化资源调配和决策制定精度,推动城市从 传统的安全风险被动响应模式向主动防控与管理转变。 我们的产品和服务为城市道路及商业照明提供了节能减排的有效方案,同时 增进了新能源电力的合理消费和利用,有效削减了企业运营成本,并助力城市实 现经济与环保的双赢目标。
杭州萧科节能科技有限公司坚持以创新驱动产业升级,不断推广低碳节能的 技术,引领照明产业向着更加节约能源、环保生态并且高度智能化的发展趋势前 进,携手合作伙伴共同打造绿色智慧城市的未来。
