综合介绍或申报理由：

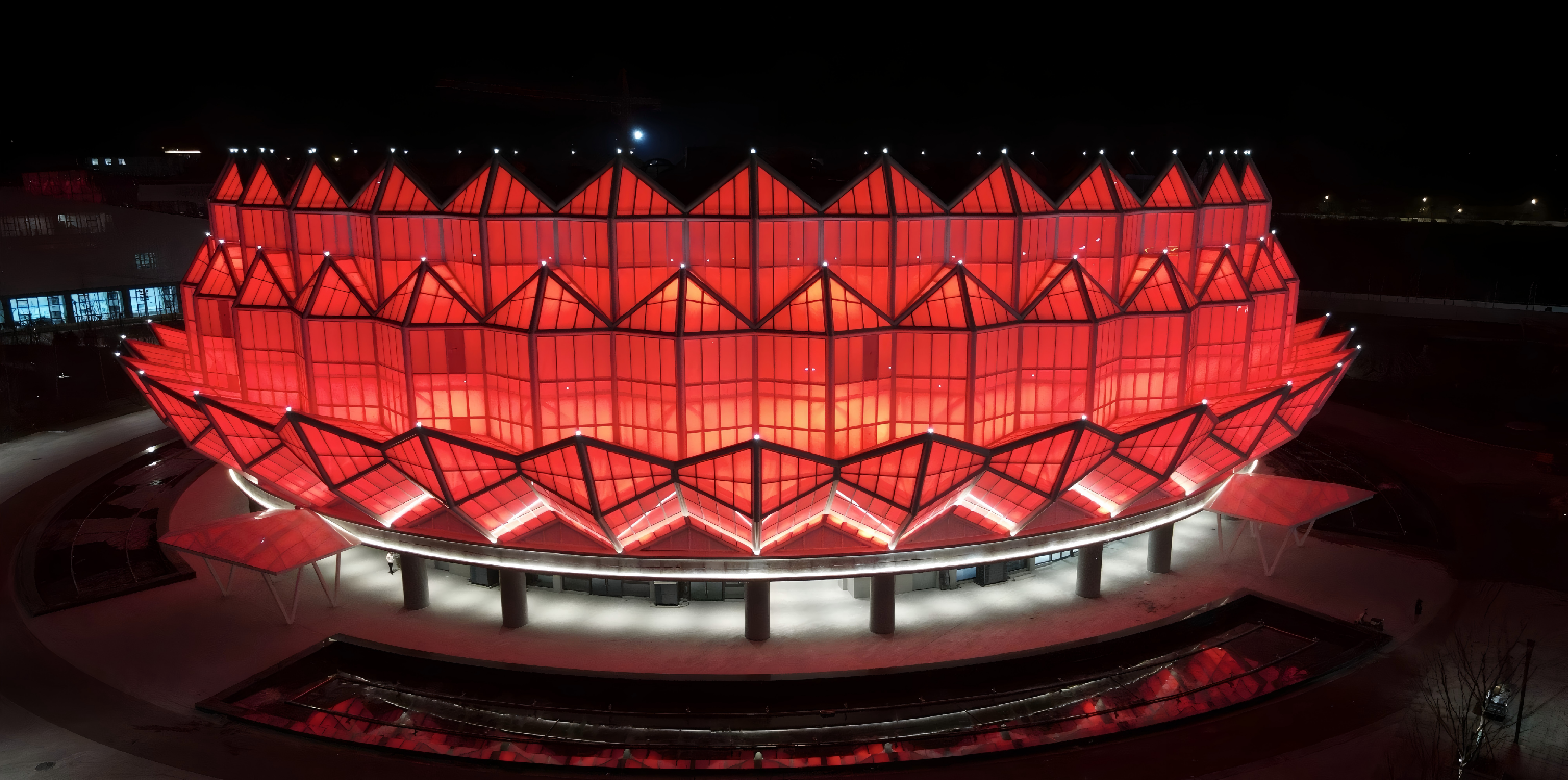

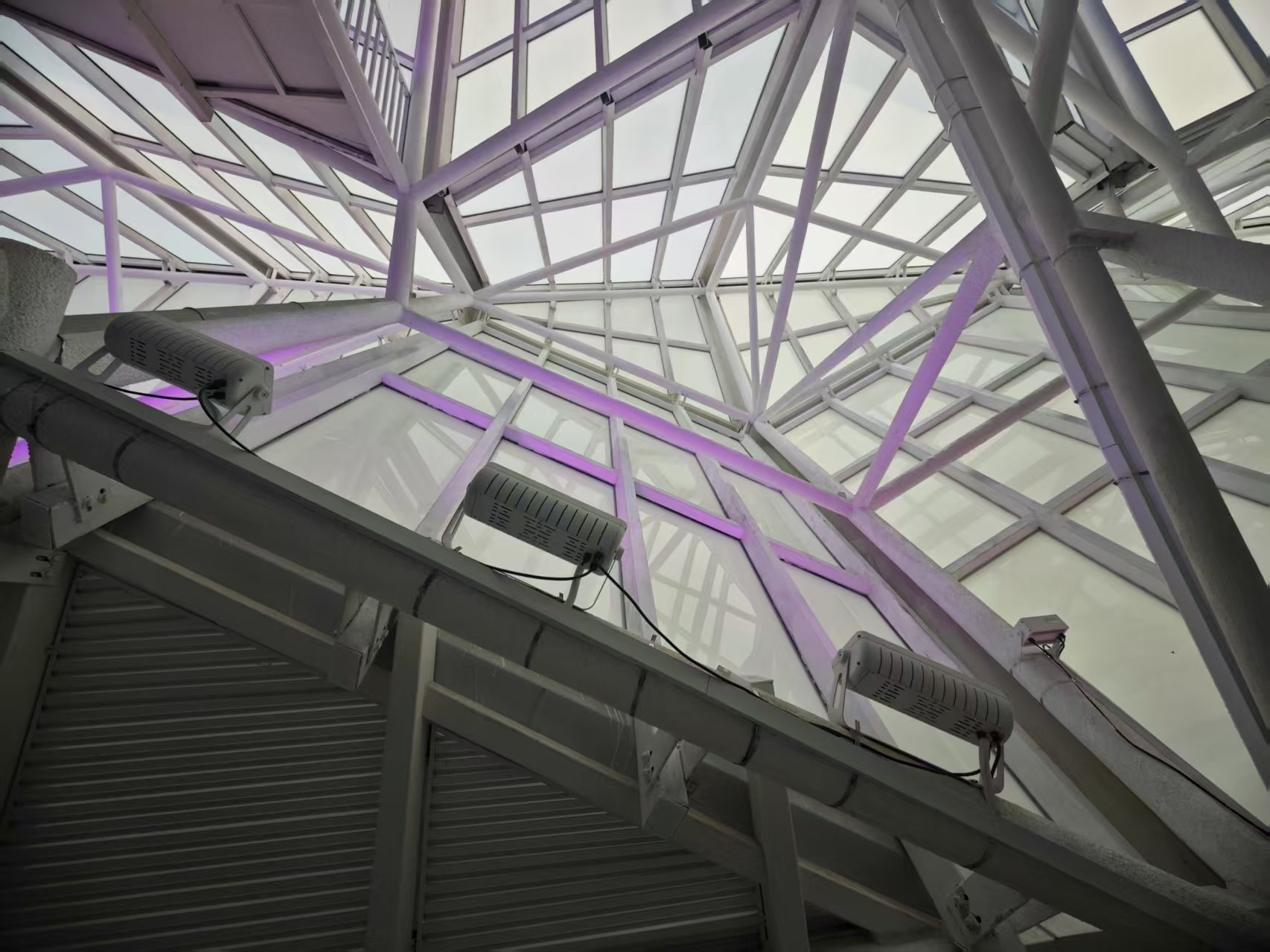

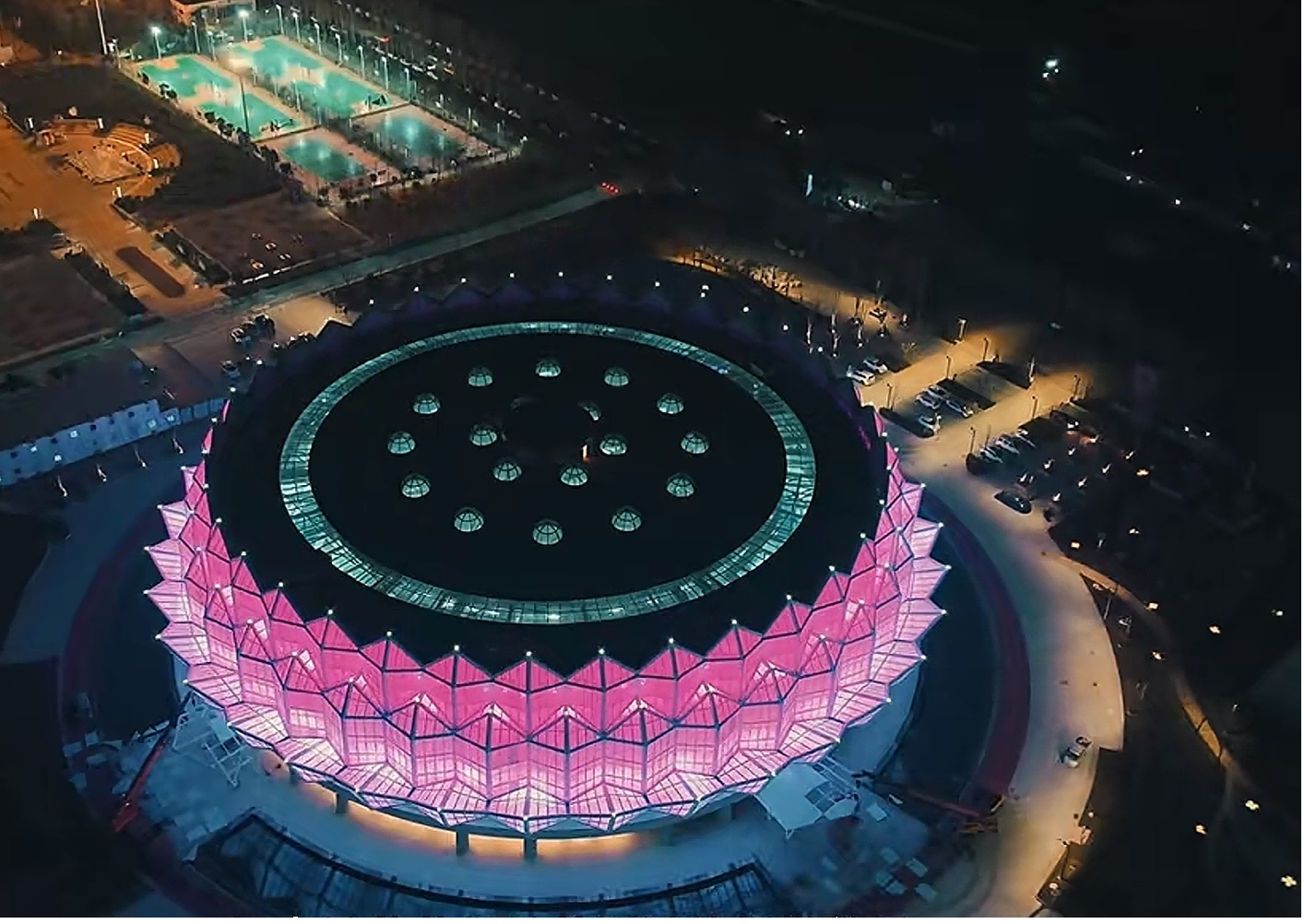

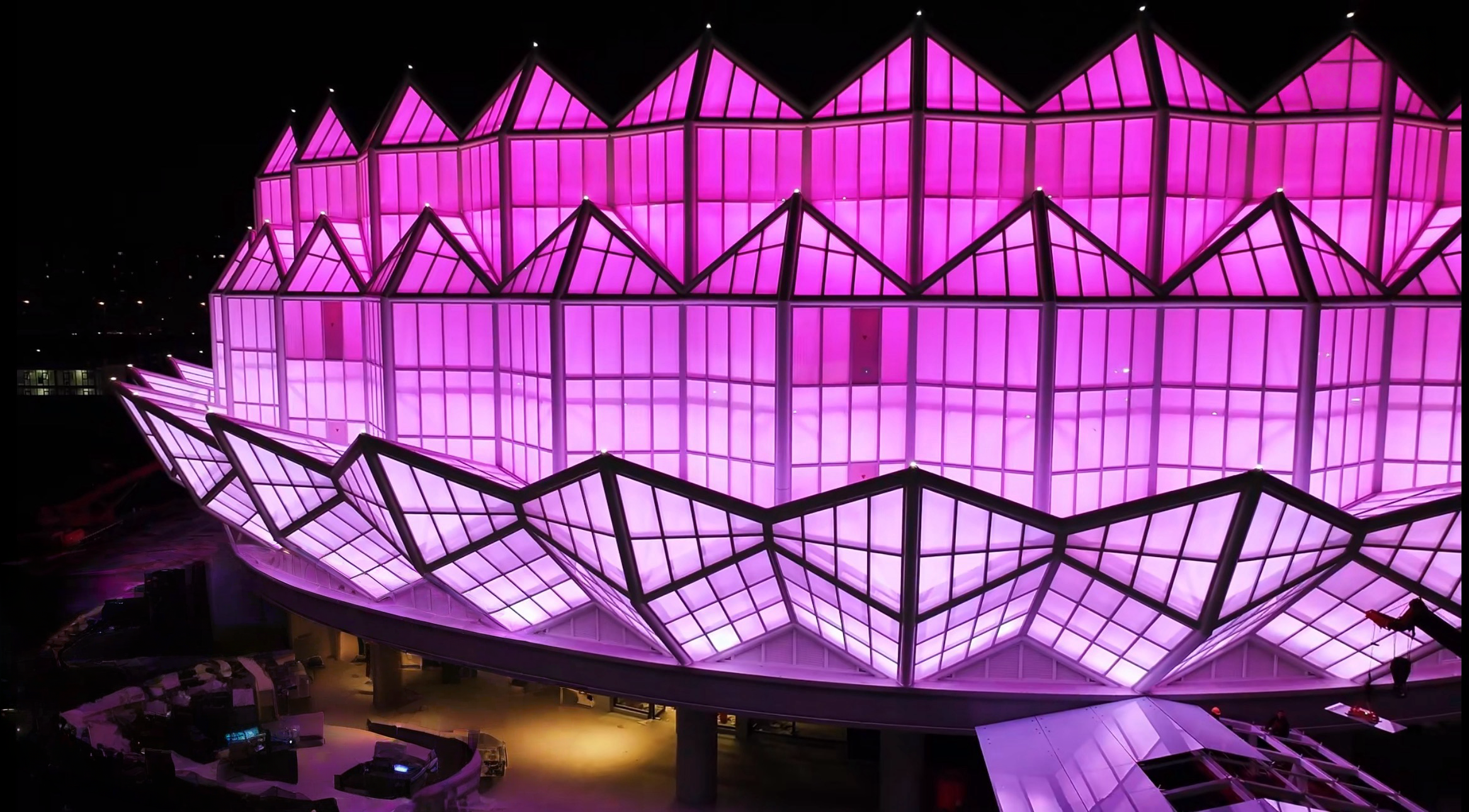

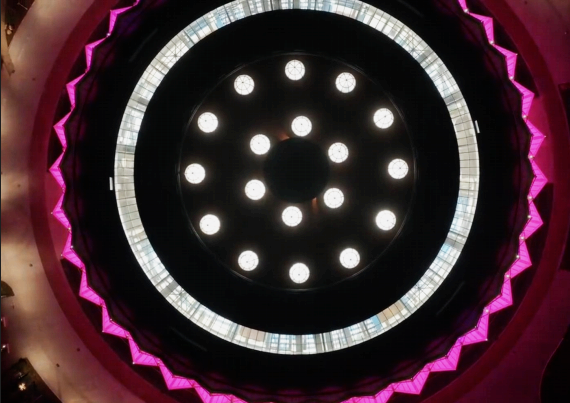

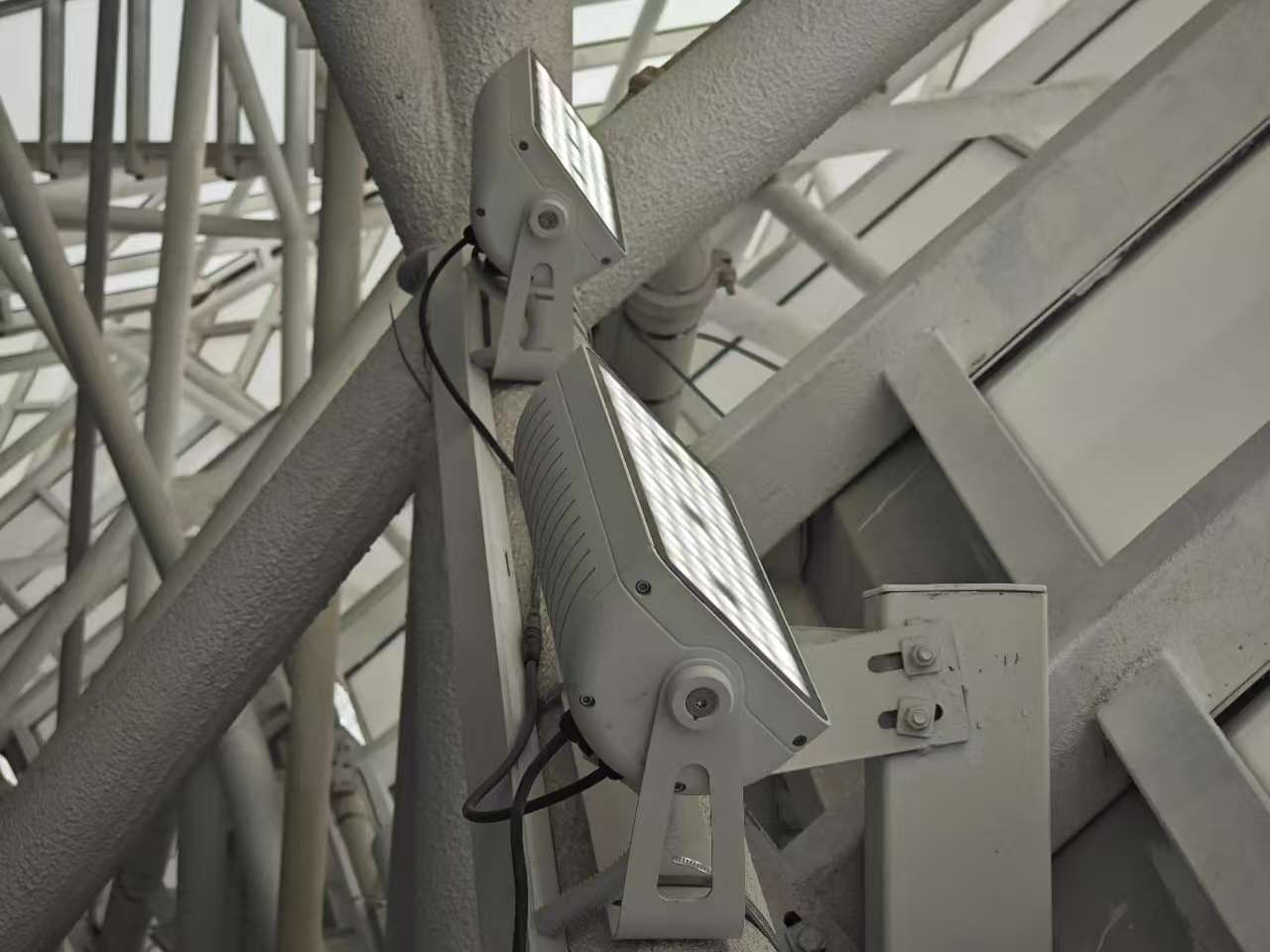

连云港海州体育馆二期主馆以“莲花”为设计灵感，泛光项目践行“技术赋能文化”理念，核心采用我司ZP-QL-TG165RGBW5000K系列LED投光灯，依托IP66双重防水、高效散热等技术优势，结合多光束精准配光与内光外透创新应用，打造“水晶荷花”标杆夜景。项目实现技术、文化、城市价值三重突破，适配大型场馆需求，激活地域文化、提升夜间文旅品质，契合阿拉丁神灯奖评审要求，示范引领价值显著。 The main venue of Phase II of Lianyungang Haizhou Gymnasium draws inspiration from the lotus flower. Its floodlighting project embodies the philosophy of "technology empowering culture", with the core adoption of our company's ZP-QL-TG165RGBW5000K series LED flood lights. Leveraging technical advantages including IP66 dual waterproofing and high-efficiency heat dissipation, combined with precise multi-beam light distribution and the innovative application of internal illumination with external transmission, it creates a benchmark night view of a "crystal lotus". The project achieves triple breakthroughs in technology, culture and urban value, meets the needs of large-scale venues, activates regional culture and enhances the quality of nighttime cultural tourism. It fully complies with the evaluation criteria of the Aladdin Lighting Award and boasts remarkable demonstration and leading value.

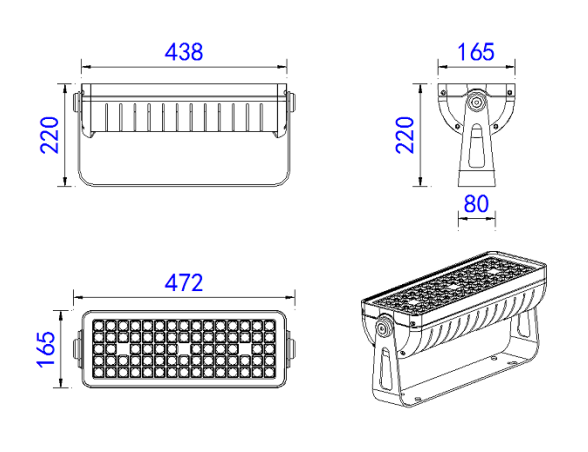

产品缩略图：

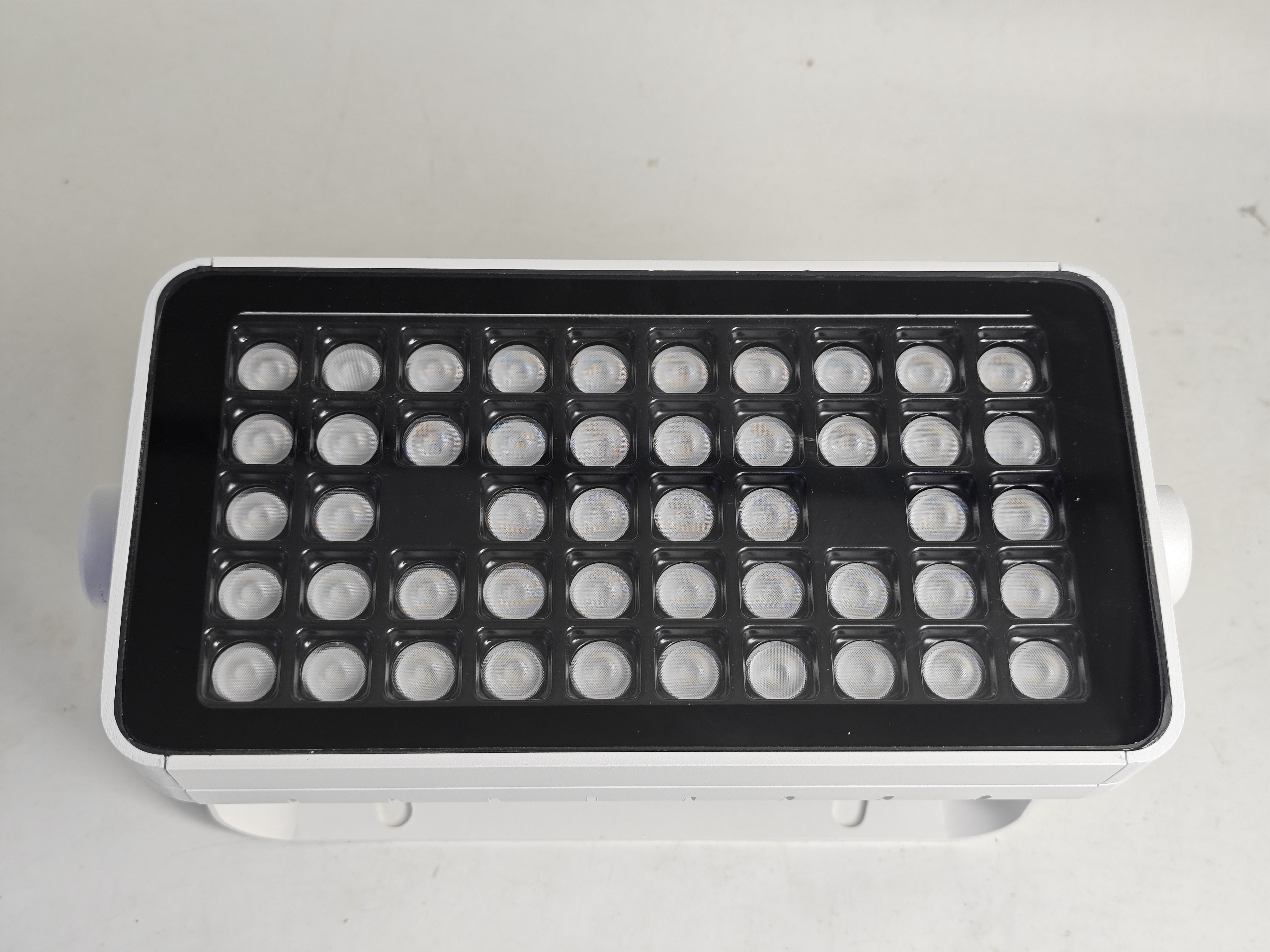

相关产品图片：

项目宣传视频：

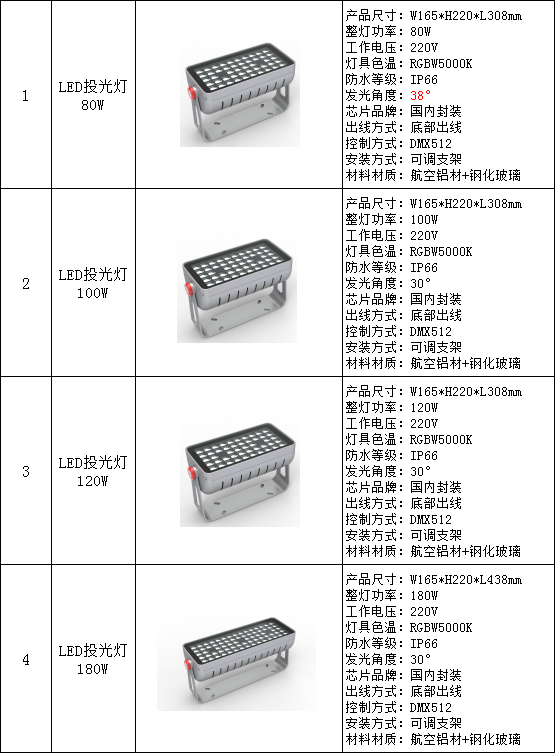

主要技术参数：
本系列LED投光灯核心技术要求聚焦光学适配、防护安全、安装适配及耐用性，适配户外大型场馆等复杂场景，具体如下：

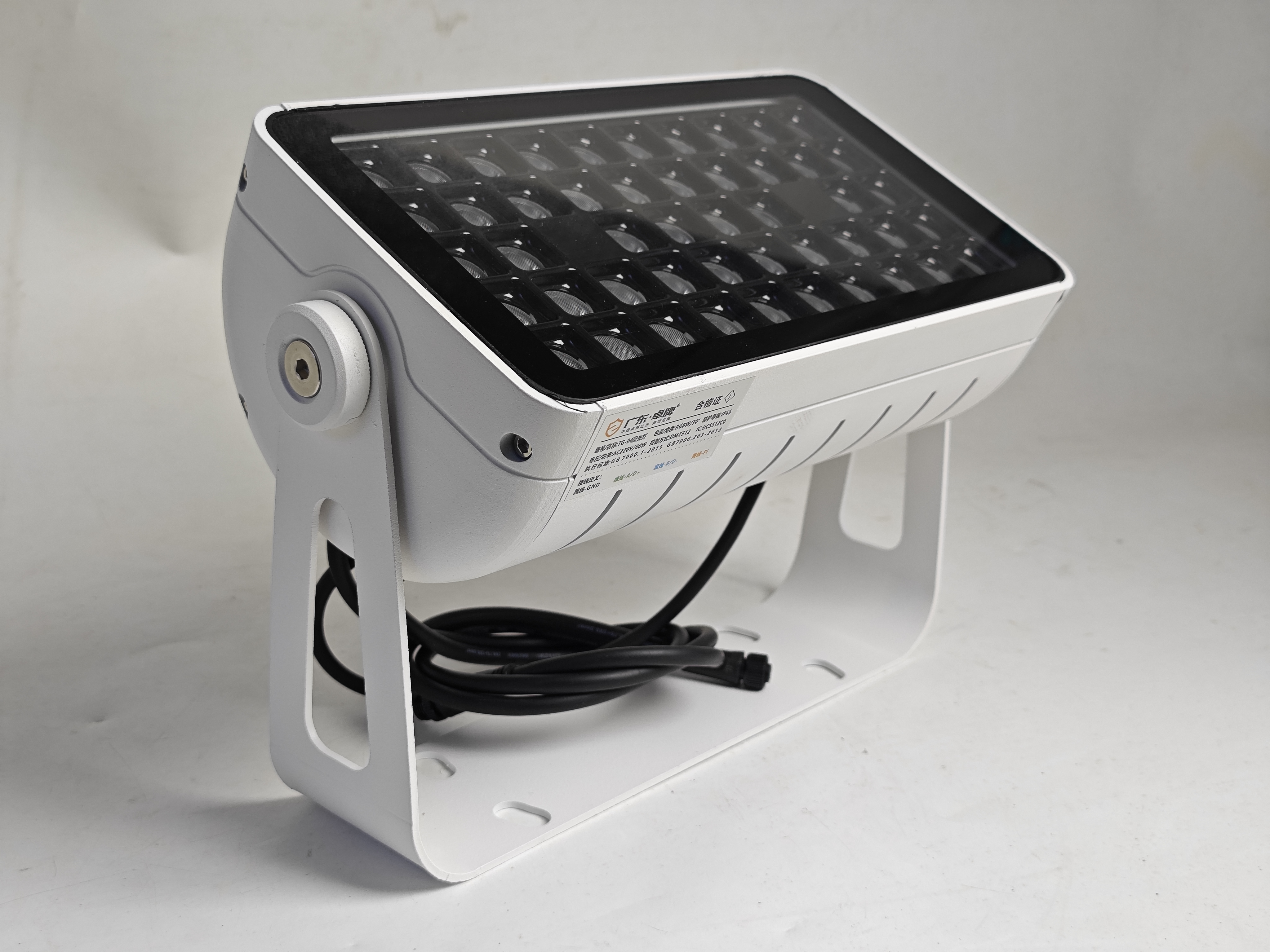

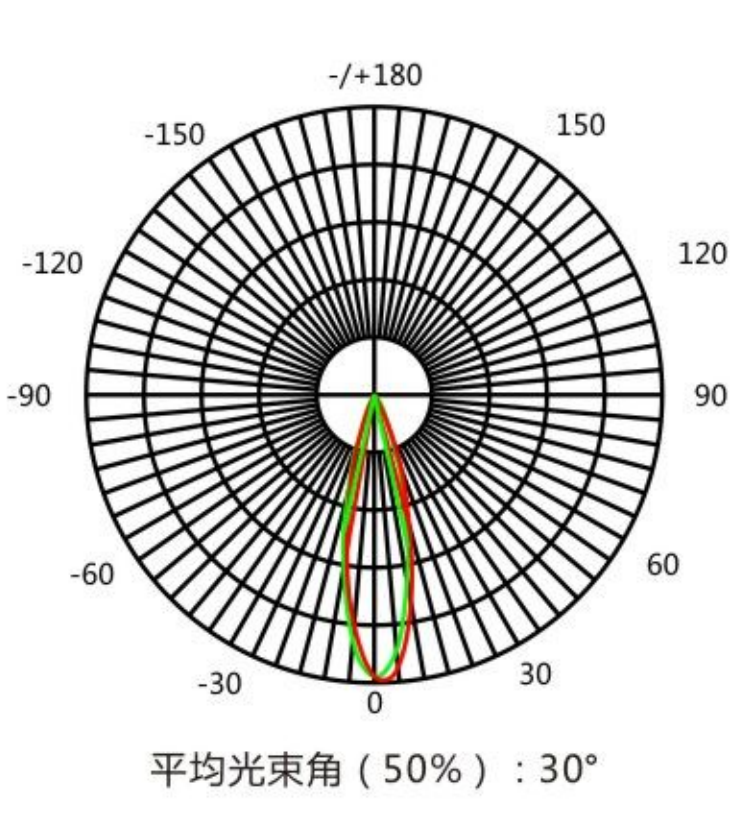

光学性能：功率覆盖24W、80W、100W、120W、180W多规格，可精准匹配不同照明需求；采用RGBW5000K双色温设计，兼顾5000K正白光基础照明与RGB动态彩光效果，30°窄光束角保障光线聚焦精准，搭配国内成熟封装芯片，光效稳定且性价比优异。
防护安全：防水等级达IP66，完全防尘且抗强烈喷水，适配户外雨天、扬尘环境；采用220V通用市电，无需额外变压器，简化接线，适配市政及场馆供电系统。

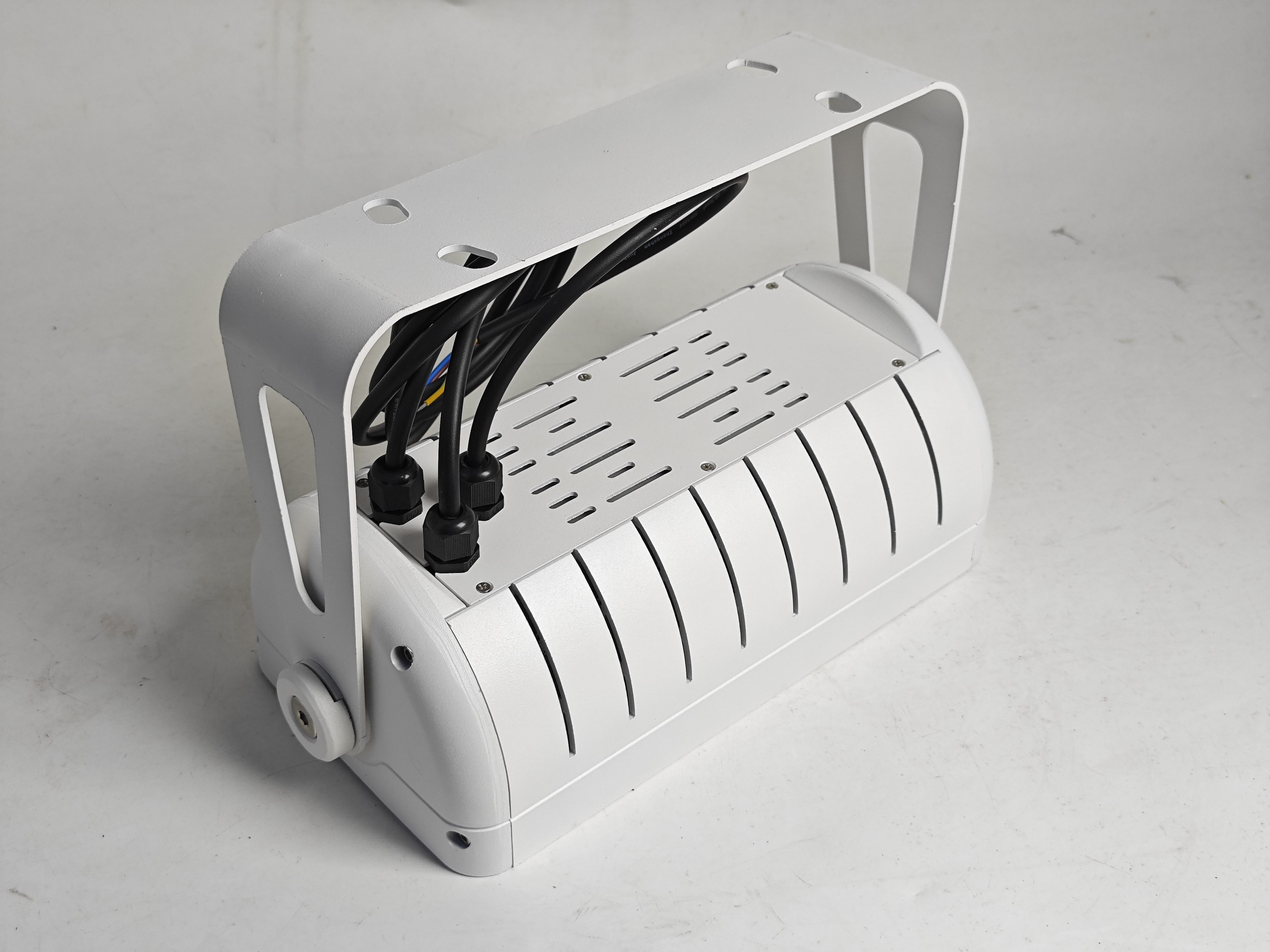

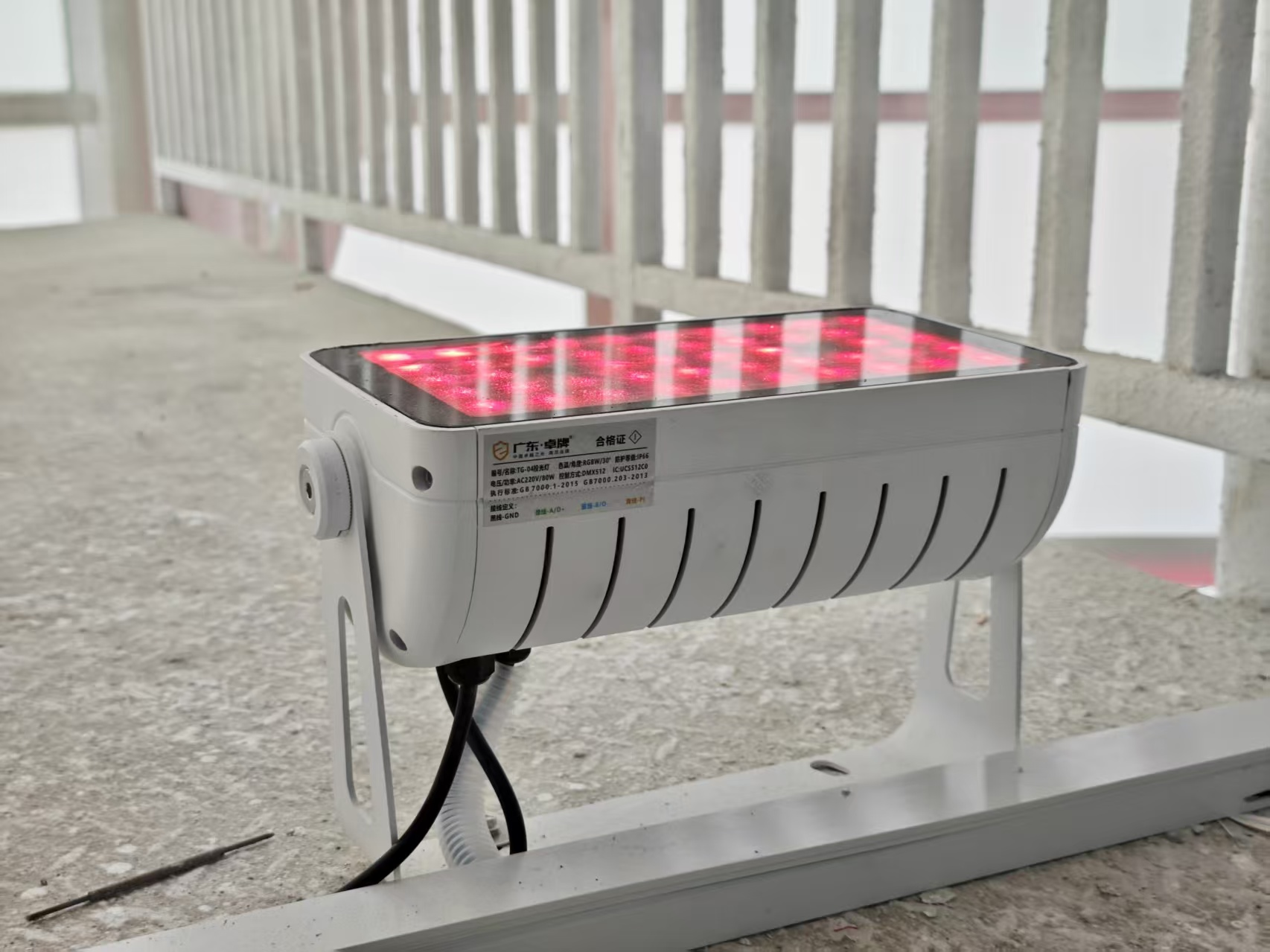

安装与控制：支持DMX512专业控制，可实现多灯同步联动调光调色；配备可调支架，底部出线设计，便于调整照射角度及隐藏布线，适配复杂建筑结构安装；紧凑设计节省安装空间。
材质工艺：采用航空铝材+钢化玻璃，航空铝材导热性优异，保障高效散热、减少光衰，钢化玻璃透光率高且抗冲击，确保户外长期稳定耐用。

The core technical requirements of this series of LED floodlights focus on optical adaptability, protection & safety, installation compatibility and durability, making them ideal for complex scenarios such as large outdoor venues. Details are as follows:

Optical performance: Available in multiple power ratings of 24W, 80W, 100W, 120W and 180W, which can accurately meet diverse lighting demands. Adopting RGBW 5000K dual-color temperature design, it balances 5000K pure white light for basic illumination and RGB dynamic color effects. The 30° narrow beam angle ensures precise light focusing, and combined with mature domestic packaged chips, it features stable luminous efficacy and excellent cost performance.

Protection & safety: With an IP66 waterproof rating, it is completely dust-tight and resistant to powerful water jets, suitable for outdoor rainy and dusty environments. It adopts 220V universal mains supply, eliminating the need for additional transformers, simplifying wiring and adapting to municipal and venue power supply systems.

Installation & control: Supporting professional DMX512 control, it enables synchronous dimming and color tuning of multiple lamps in linkage. Equipped with an adjustable bracket and bottom cable outlet design, it facilitates angle adjustment and concealed wiring, adapting to the installation on complex building structures. Its compact design saves installation space.

Material & craftsmanship: Made of aviation aluminum alloy and tempered glass. The aviation aluminum alloy boasts excellent thermal conductivity, ensuring efficient heat dissipation and reducing light attenuation. The tempered glass features high light transmittance and impact resistance, guaranteeing long-term stable and durable operation outdoors.

技术及工艺创新要点：
一、技术创新：多功率（24W-180W）全覆盖搭配RGBW5000K双色温集成，30°窄光束角精准控光，适配大型建筑差异化照明；搭载DMX512协议，支持多灯同步联动调光，适配光影秀场景；IP66防护与220V市电结合，简化系统搭建，提升户外适应性
二、工艺创新：可调支架与底部出线一体化设计，紧凑尺寸适配复杂建筑安装；航空铝材+钢化玻璃组合优化散热减光衰；多功率统一核心架构，保障量产稳定，控制成本，提升工程适配效率。

I. Technological Innovation Full coverage of multiple power ratings (24W-180W) integrated with RGBW & 5000K dual color temperature; the 30° narrow beam angle enables precise light control, ideal for differentiated lighting of large-scale buildings. Equipped with DMX512 protocol, it supports synchronous dimming and linkage of multiple lamps, perfectly suited for light show scenarios. Combined with IP66 protection and 220V mains supply, it simplifies system setup and enhances outdoor adaptability.

II. Craftsmanship Innovation
Integrated design of adjustable bracket and bottom wiring outlet with compact dimensions, suitable for installation on complex buildings. The combination of aviation-grade aluminum alloy and tempered glass optimizes heat dissipation and reduces light attenuation. A unified core architecture for all power ratings ensures stable mass production, controls costs and improves engineering adaptation efficiency.

与国内外同类产品或同类技术的比较情况：
光学适配性更优，国内同类多为单一功率或色温，本产品全功率覆盖+双色温集成设计，可精准匹配大型场馆多区域需求；国际高端品牌虽有双色温功能，但功率跨度小且成本高出30%-50%。智能控制兼容性更强，搭载的DMX512协议较国内简易调光方案控制更精准，且适配220V市电无需额外变压器，较国际品牌系统搭建更简便。
工艺层面兼顾航空铝材高效散热与紧凑结构安装灵活性，标准化量产工艺使成本较国际品牌降低40%以上，较国内非标准化产品品质更稳定。防护性能突出，IP66等级达行业高端标准，优于国内部分IP65产品，与国际品牌持平且性价比优势显著。

It boasts superior optical adaptability. Most domestic counterparts are limited to a single power output or color temperature, while this product features full-power coverage combined with dual-color temperature integration, enabling precise matching of the multi-zone lighting requirements of large-scale venues. Although international high-end brands offer dual-color temperature functionality, their power range is narrow and costs are 30%–50% higher.

In terms of intelligent control compatibility, it is equipped with the DMX512 protocol, which delivers far more precise control than the simple dimming solutions adopted by domestic competitors. Compatible with 220V mains supply without the need for additional transformers, it allows for more streamlined system setup compared to international alternatives.

From a manufacturing standpoint, it incorporates aerospace-grade aluminum for efficient heat dissipation, paired with a compact structure to ensure flexible installation. The standardized mass production process not only reduces costs by over 40% relative to international brands but also guarantees more stable product quality than non-standardized domestic alternatives.

It also offers outstanding protective performance, meeting the industry’s high-end IP66 rating. This surpasses the IP65 rating of some domestic products, matches the protection level of international brands, and delivers a significant cost-performance advantage

经济评价分析：
1.市场需求分析：当前国内大型体育场馆、市政景观照明升级需求旺盛，尤其对多场景适配、智能可控的高品质照明产品需求激增；本产品全功率覆盖、双色温集成等特性，精准匹配场馆差异化照明与文旅光影秀等主流需求，市场应用场景广泛，需求潜力可观。
2.初期投入成本优势：标准化量产工艺降低制造成本，较国际同类高端产品成本低40%以上；与国内同类产品相比，虽核心材质成本略高，但多功率统一架构可减少灯具品类采购，降低整体采购与仓储成本。
3. 全生命周期成本可控：航空铝材高效散热设计减少光衰，使用寿命较国内普通铝材产品提升30%以上，降低后期更换维护成本；IP66高防护等级适配复杂户外环境，故障维修率降低25%，进一步节省运维投入。
4. 项目应用经济效益：适配220V市电无需额外变压器，简化系统搭建，减少配套设备采购与施工成本；多功率、多色温集成设计无需混搭多种灯具，提升施工效率、缩短项目周期，间接降低人工与管理成本。
5. 环保性能分析：产品采用高透光率钢化玻璃与航空铝材，均为可回收环保材质，符合绿色建材要求；高效散热设计降低能耗损失，配合LED光源本身节能特性，较传统照明产品节能50%以上，减少碳排放，契合“双碳”政策导向，具备显著环保效益。
6. 市场竞争力与盈利潜力：高性价比优势使其在大型场馆、市政景观等对公项目中投标竞争力突出；全生命周期成本优势与环保属性可提升客户复购意愿，结合标准化生产规模效应，有望进一步摊薄成本，提升市场盈利空间。

1. Market Demand Analysis: At present, there is robust demand for the upgrading of large-scale domestic stadiums and municipal landscape lighting. In particular, the demand for high-quality lighting products featuring multi-scenario adaptability and intelligent control is surging. Boasting full power coverage and dual-color temperature integration, this product accurately meets mainstream demands such as differentiated lighting for stadiums and cultural tourism light shows, with extensive market application scenarios and considerable demand potential.

2. Initial Investment Cost Advantage: Standardized mass production processes reduce manufacturing costs, which are over 40% lower than those of high-end international counterparts. Compared with domestic peer products, although the cost of core materials is slightly higher, the unified architecture for multi-power output reduces the variety of lamps to be procured, thereby cutting down overall procurement and warehousing costs.

3. Whole-life Cycle Cost Controllability: The high-efficiency heat dissipation design with aviation aluminum minimizes light decay, extending the service life by over 30% compared with domestic products made of ordinary aluminum and reducing subsequent replacement and maintenance costs. With an IP66 high protection rating, it is suitable for complex outdoor environments, lowering the failure and repair rate by 25% and further saving operation and maintenance investment.

4. Project Application Economic Benefits: Compatible with 220V mains supply, it eliminates the need for additional transformers, simplifying system construction and reducing the procurement of supporting equipment and construction costs. The integrated design of multi-power and multi-color temperature makes it unnecessary to mix various types of lamps, improving construction efficiency, shortening project cycles, and indirectly reducing labor and management costs.

5. Environmental Performance Analysis: Adopting high-transmittance tempered glass and aviation aluminum, both recyclable and eco-friendly materials, the product complies with green building material requirements. The high-efficiency heat dissipation design reduces energy loss; combined with the inherent energy-saving features of LED light sources, it saves more than 50% energy compared with traditional lighting products, cuts carbon emissions, aligns with the "dual carbon" policy orientation, and delivers remarkable environmental benefits.

6. Market Competitiveness and Profit Potential: Its high cost-performance ratio gives it outstanding competitiveness in bidding for public projects such as large stadiums and municipal landscapes. The whole-life cycle cost advantage and environmental attributes enhance customers' repurchase willingness. Coupled with the economies of scale from standardized production, it is expected to further reduce costs and boost market profit margins.

实际运用案例和用户评价意见：

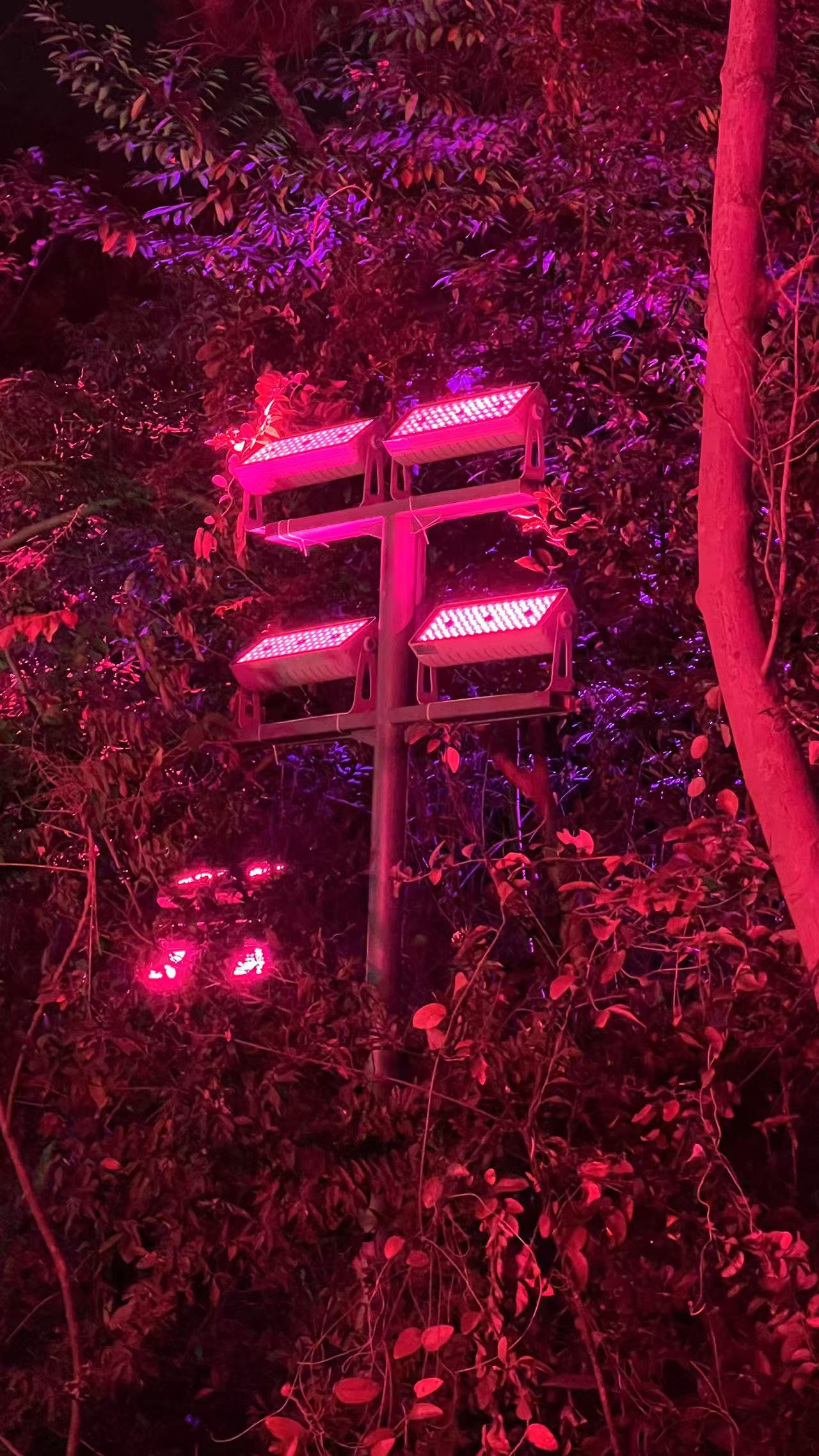

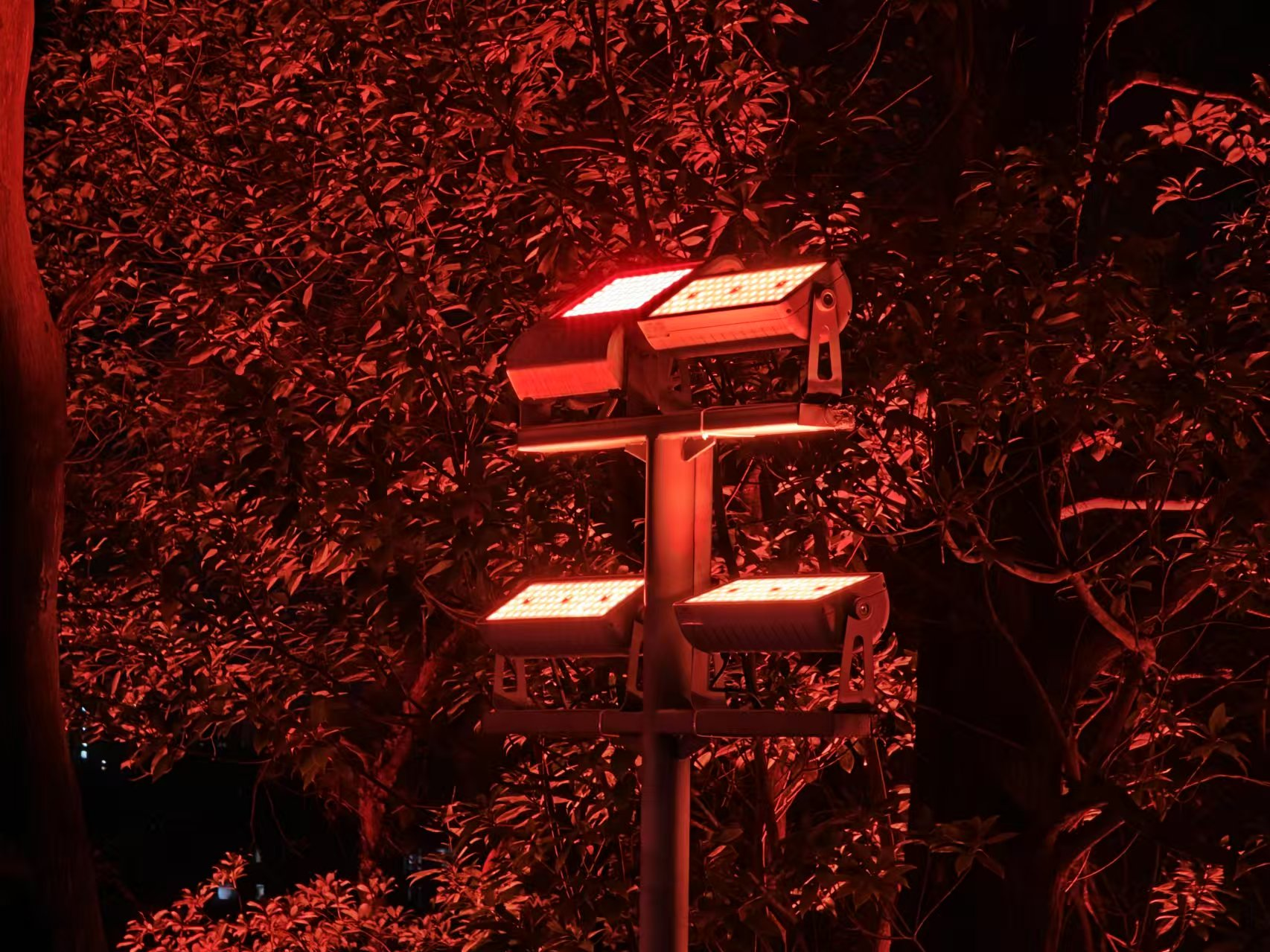

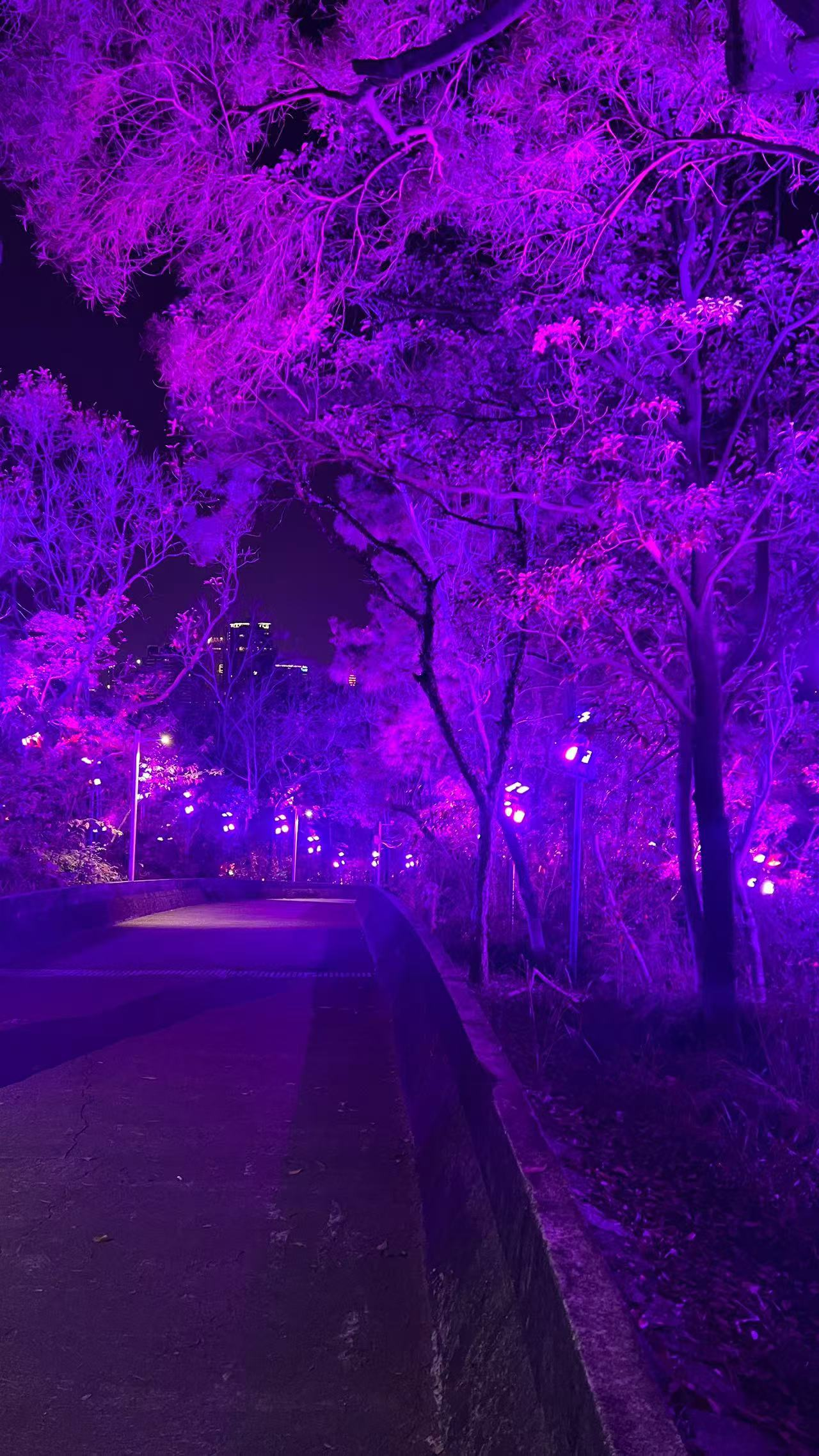

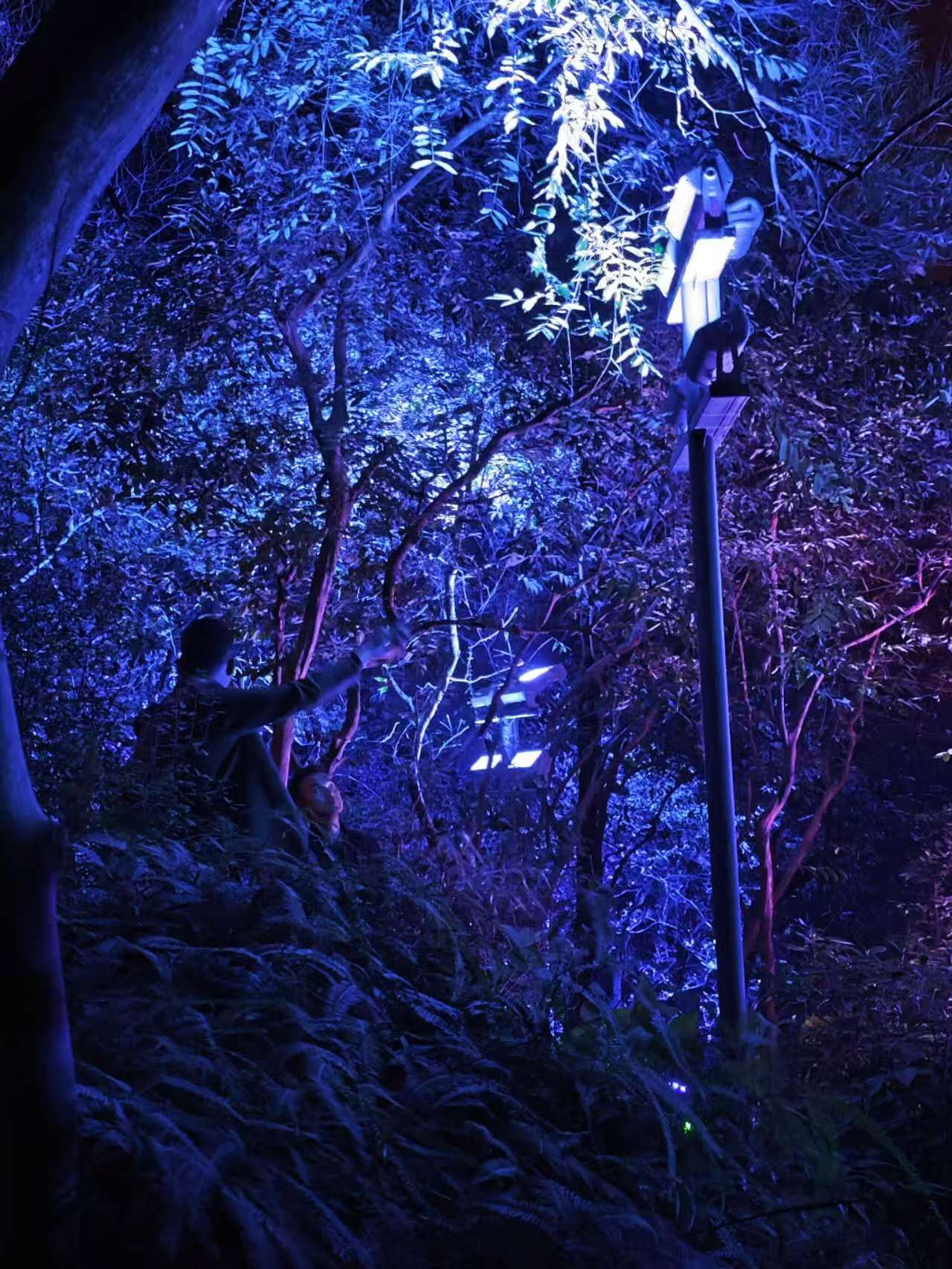

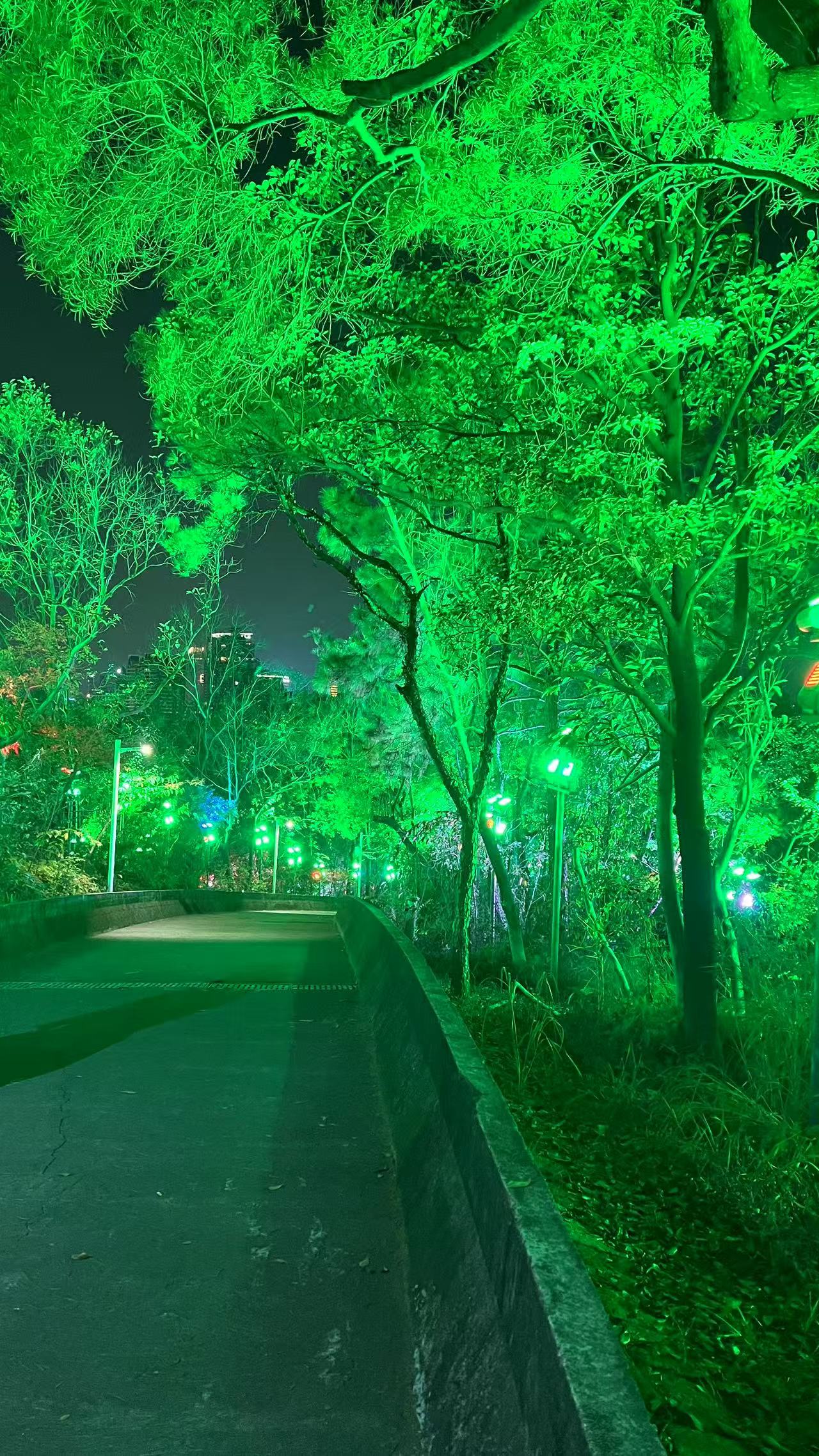

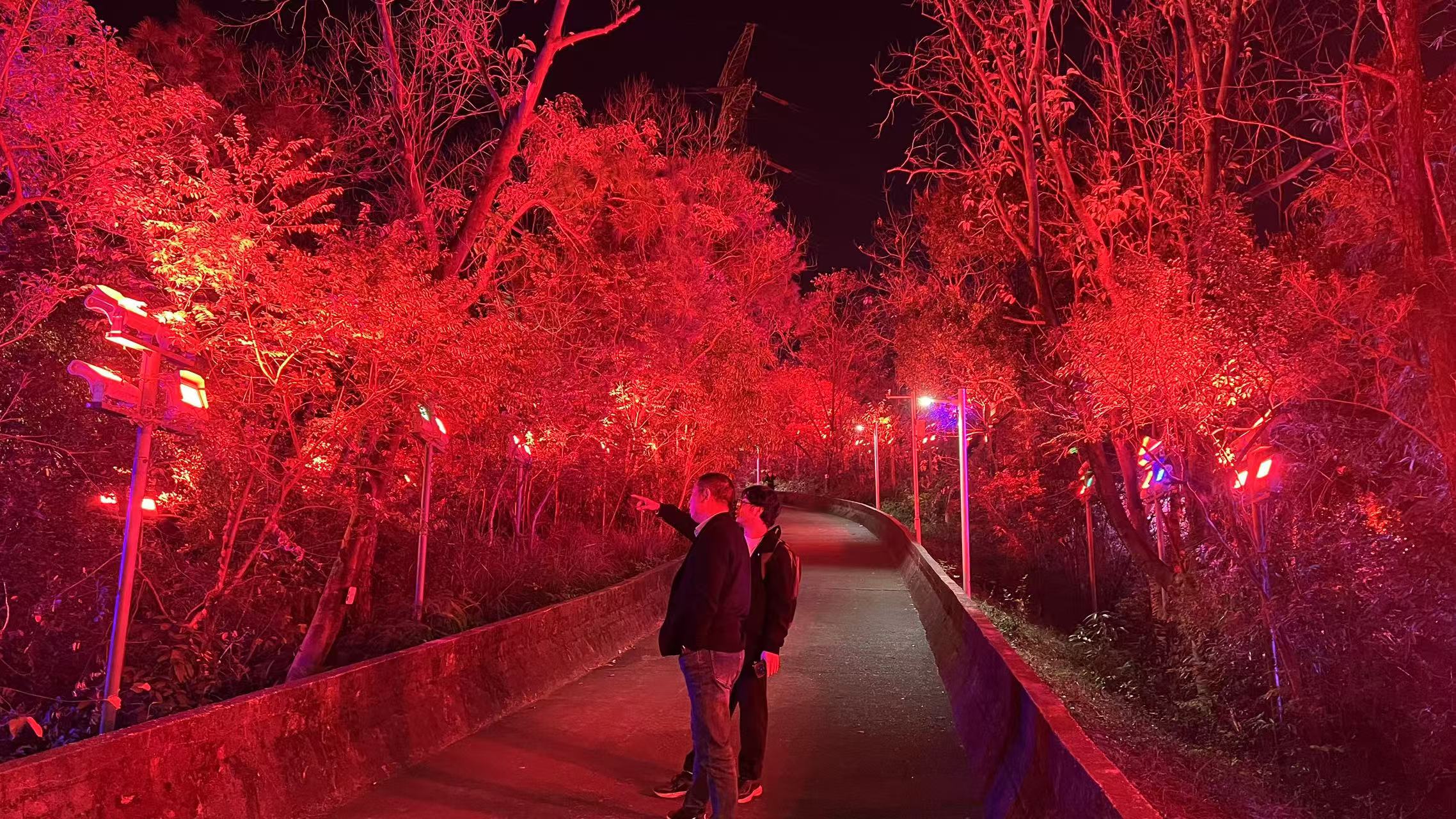

2025年1月，中山紫马岭公园道路照明改造项目正式落地，专项投入200套本系列本系列LED投光灯。项目依主园路、支路、景观步道等等差异化场景场景，精准配置150W、72W、108W三种功率方案，灯具灯具均采用RGB色彩系统、DMX512控制协议及AC220V通用全园通用供电模式，实现全园道路功能性照明与景观氛围一体化覆盖。
产品质量经多重验证质量核心达标：IP66高高防护等级经户外验证抗雨防尘，200套灯具运行无故障，符合GB/T31832-2015标准；30°窄光束角控眩光，亮度均匀性，保障夜间夜间游园安全；DMX512协议实现灯具同步联动，AC220V适配市政电网，可调支架适配起伏地形，安装效率提升30%；优质铝材散热系统保障10000小时光通维持率≥95%（优于行业标准，解决原有照明痛点），用户反馈良好，管理方称安装便捷、管控高效管控高效、运维成本降低；市民评价亮度亮度均匀无眩光，RGB光影丰富景观丰富景观，安全感与舒适度显著提升。

In January 2025, the road lighting renovation project of Zhongshan Zimaling Park was officially implemented, with a special deployment of 200 sets of this series of LED flood lights. Based on differentiated scenarios including the main park roads, branch roads and landscape trails, the project was precisely configured with three power schemes of 150W, 72W and 108W. All the lamps adopted the RGB color system, DMX512 control protocol and AC220V universal power supply mode for the entire park, achieving integrated coverage of functional road lighting and landscape ambiance across the park.
The product quality has passed multiple verifications and met the core quality standards:
.The IP66 high protection rating has been verified in outdoor conditions to resist rain and dust, and all 200sets of lamps have operated without faults, complying with the GB/T31832-2015 standard;
.The 30 narrow beam angle controls glare and ensures uniform brightness, guaranteeing the safety of nightpark visitors;
.The DMX512 protocol enables synchronous linkage of the lamps, the AC220V voltage is compatible with themunicipal power grid, and the adjustable brackets are adapted to undulating terrain, improving installationefficiency by 30%;
The high-quality aluminum heat dissipation system ensures that the luminous flux maintenance rate reaches95% after 10,000 hours of operation (surpassing the industry standard and solving the pain points of theoriginal lighting system).
The project has received positive feedback.The park management stated that the lamps feature convenientinstallation, efficient control and reduced operation and maintenance costs; citizens commented that thelighting is uniform without glare, the RGB light and shadow enhance the landscape, and the sense of safety andcomfort has been significantly improved.

申报单位介绍：
中山雷克斯照明成立于 2015 年，首个五年计划聚焦户外亮化照明工程，扎实推进生产、管理、服务与研发，稳步积累企业实力。2018 年起公司迈入快速发展期，销售收入与研发、生产投入逐年递增，以高品质产品与服务持续提升核心竞争力。 顺应中国智慧城市升级趋势，2020 年中山雷克斯照明战略升级为广东卓牌照明，正式开启品牌焕新征程。企业以科技为核心驱动力，凭借更强实力与丰富资源携手知名企业达成战略合作，致力打造综合性 LED 照明解决方案平台。作为雷克斯照明升级后的全新品牌，广东卓牌照明深耕照明领域十五年，专注户外 LED 工程、商业 LED 照明及生活 LED 照明，坚守自主发展路线，服务海量客户的同时沉淀深厚技术经验，搭建完善服务体系。主营洗墙灯、线条灯、投光灯等非标定制产品，以高质量、高科技、高环保产品践行社会责任，全力打造民族实业标杆品牌。 Zhongshan Rex Lighting was founded in 2015. Its first five-year plan focused on outdoor lighting projects, with steady efforts devoted to production, management, service and R&D, thus laying a solid foundation for the enterprise’s growth. Starting from 2018, the company entered a phase of rapid development: sales revenue and investment in R&D and production increased year on year, and its core competitiveness was continuously enhanced through high-quality products and services. To align with the upgrading trend of China’s smart cities, Zhongshan Rex Lighting underwent a strategic upgrade to Guangdong Zhuopai Lighting in 2020, officially launching its brand renewal journey. With technology as the core driving force, the enterprise leverages its stronger strength and abundant resources to establish strategic partnerships with well-known enterprises, committed to building a comprehensive LED lighting solution platform. As a brand-new upgraded version of Rex Lighting, Guangdong Zhuopai Lighting has over 15 years of expertise in the lighting sector, focusing on outdoor LED engineering, commercial LED lighting and residential LED lighting. Adhering to the path of independent development, the company has served a vast number of customers, accumulated profound technical experience and built a sound service system. Specializing in the customization of non-standard products such as wall washers, linear lights and flood lights, we fulfill our social responsibilities with high-quality, high-tech and eco-friendly products, striving to become a benchmark brand for national industrial enterprises.
