综合介绍或申报理由：
DIN导轨安装式以太网（IP）DALI网关是一款获得DALI-2、CE等多项全球权威认证的高性能智能控制接口设备，主要用于桥接以太网络与DALI照明控制系统。作为专业照明项目的中央管理单元，该网关通过标准IP网络，将DALI设备无缝集成至现代楼宇管理系统中。它不仅是协议转换器，更是一个具备智能与自主控制能力的照明控制器，能够有效简化安装流程、降低系统成本，并为核心支撑现代建筑实现以人为本的照明策略提供重要保障。 DIN Rail Ethernet (IP) DALI Gateway is a high-performance intelligent control interface device with multiple global certifications such as DALI-2 and CE. It is primarily used to bridge Ethernet networks and DALI lighting control systems. As the central management unit for professional lighting projects, the gateway seamlessly integrates DALI devices into modern building management systems via standard IP networks. It is not only a protocol converter but also an intelligent and autonomous lighting controller that effectively simplifies installation processes, reduces system costs, and provides essential support for core implementations of human-centric lighting strategies in modern buildings.

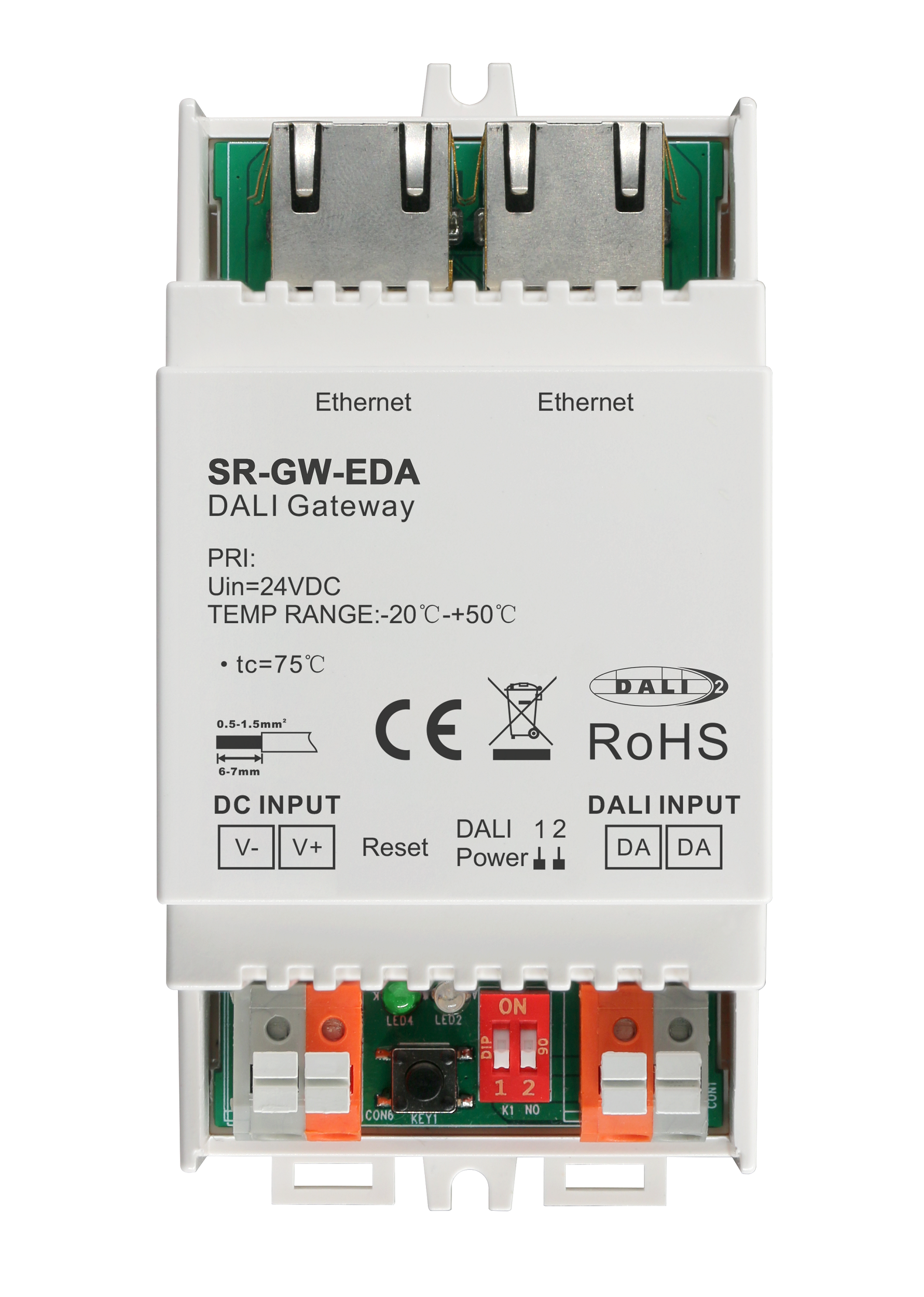

产品缩略图：

相关产品图片：

主要技术参数：
● 产品尺寸：110x53x65mm
● 输入电压：224VDC
● 输出电压：12-22.5VDC
● 输出电流：最大250mA
● 环境温度：-20℃ ~ +50℃
● Product Size: 110x53x65mm
● Input Voltage: 224VDC
● Output Voltage: 12-22.5VDC
● Output Current: Maximum 250mA
● Ambient Temperature: -20℃ ~ +50℃

技术及工艺创新要点：
●支持 DT6, DT8 Tc, DT8 XY, DT8 RGBWAF全设备类型
●支持最多64个控制装置（DALI-1和DALI-2）的寻址、分组和场景配置
●内置 250mA DALI 总线电源，无需额外布线
●通过以太网轻松连接到网络
●通过DALI Center PC软件轻松快速配置
●内置电池和RTC，支持定时任务配置
●支持周期计划配置，昼夜节律功能
●支持BACnet，API, MQTT集成
●Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWAF full device types
●Supports addressing, grouping, and scene configuration for up to 64 control devices (DALI-1 and DALI-2)
●Built-in 250mA DALI bus power supply, no additional wiring required
●Easily connects to the network via Ethernet
●Easy & quick configuration through DALI Center PC application
●Built-in battery and RTC, supports scheduled task configuration
●Supports periodic schedule configuration and circadian rhythm function
●Support BACnet, API, and MQTT integration

实际运用案例和用户评价意见：

获奖、专利情况：

是否有“智能设计”：
●全兼容智能适配：自动识别DT6、DT8全类型及DALI-1/2双版本设备，无需手动切换协议，实现一键适配、全量管控，提升通用性。 ●智能便捷配置：通过PC软件实现自动搜索、批量配置，支持参数保存导出，配备复位功能，大幅提升配置与运维便捷性。 ●智能定时与节律：高精度RTC+备用电池保障定时精准，支持定时/周期任务，昼夜节律功能贴合人体需求，兼顾舒适与节能。 ●智能网络管控：以太网接入可集中远程管控，支持多网关级联，适配大型建筑多区域照明管控需求。 ●智能节能稳定：智能供电按需输出，具备故障自检，宽温适配、IP20防护，保障系统稳定且节能。 ● Full-compatibility Intelligent Adaptation: Automatically identifies all types of DT6, DT8 devices and DALI-1/2 dual-version devices, no manual protocol switching required, achieving one-click adaptation and full control to improve versatility. ●Intelligent and Convenient Configuration: Realizes automatic search and batch configuration through PC software, supports parameter saving and export, and is equipped with a reset function to greatly improve configuration and operation and maintenance convenience. ●Intelligent Timing and Rhythm: High-precision RTC + backup battery ensure accurate timing, supports timing/cycle tasks, and the circadian rhythm function meets human needs, balancing comfort and energy saving. ●Intelligent Network Control: Ethernet access enables centralized remote control, supports multi-gateway cascading, and adapts to the multi-area lighting control needs of large buildings. ●Intelligent Energy Saving and Stability: Intelligent power supply outputs on demand, with fault self-inspection, wide temperature adaptation and IP20 protection to ensure stable and energy-saving system operation.

申报单位介绍：
深圳市晟瑞科技有限公司 (SUNRICHER) 是一家国际化科技公司，2007年成立于深圳,是国家级专精特新“小巨人”企业和国家高新技术企业。晟瑞科技专注做智能控制系统及解决方案，以持续创新、优良品质、高性价比产品和专业高效服务等优势成为欧美众多一线品牌和专业客户的首选供应商。 公司具有强大的研发能力，联合创始人源于华为，自主开发智能照明领域，具备DALI、DMX512、KNX、0/1-10V、 Zigbee、 Matter、 蓝牙、RF等相关技术和项目经验，多项协议技术达到国际先进水平。已获得超过200项国家专利，其中包括60项发明专利。产品方面，可提供全套标准软硬件产品及方案，已为全球客户设计并制造了数千种产品。目前产品已通过UL, TUV CE, ENEC, GS, CCC, RCM, FCC, PSE，RoHS认证，系统软硬件已通过兼容性测试和认证，如DALI-2认证，D4i认证，KNX认证，Zigbee认证，Matter认证等。 研发生产基地超过12000平米,已通过TUV ISO 9001:2015质量管理体系认证、BSCI全球社会责任认证,具有苹果MFi认证产品的研发和生产资质。
