综合介绍或申报理由：
市面上现有的大功率洗墙灯灯具，外形多为长条形铝制外壳，不可弯曲，且不可贴合建筑轮廓，在复杂轮廓墙面需要裁剪成多段，然后拼接成所需要的弧度，无法很好的贴合墙面，因此需设计一种大功率柔性任意弯曲洗墙灯来解决此问题。 Existing high-power wall washers on the market mostly feature long, strip-shaped aluminum casings, which are inflexible and cannot conform to the contours of buildings. When used on walls with complex contours, they need to be cut into multiple sections and then assembled to achieve the desired curvature, which does not fit the wall well. Therefore, a high-power flexible and arbitrarily bendable wall washer needs to be designed to solve this problem.

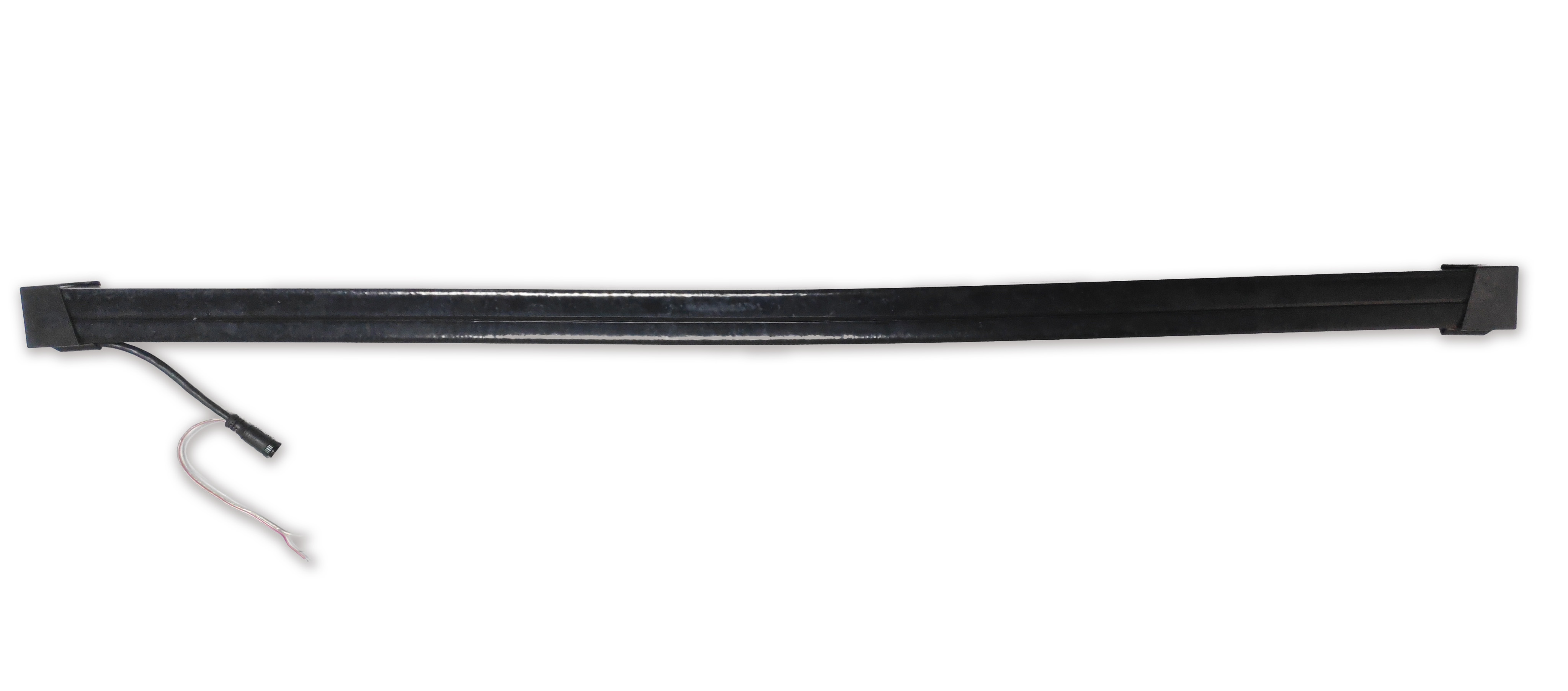

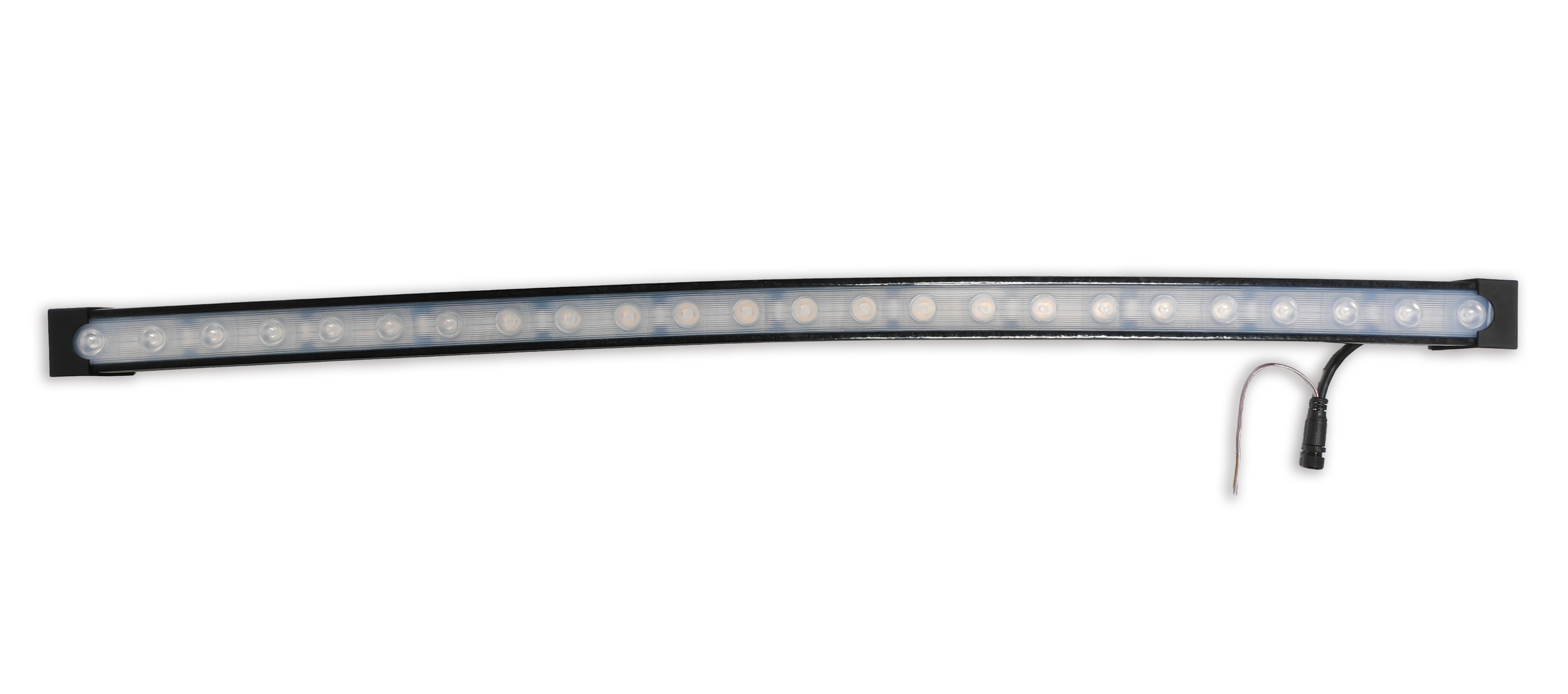

产品缩略图：

相关产品图片：

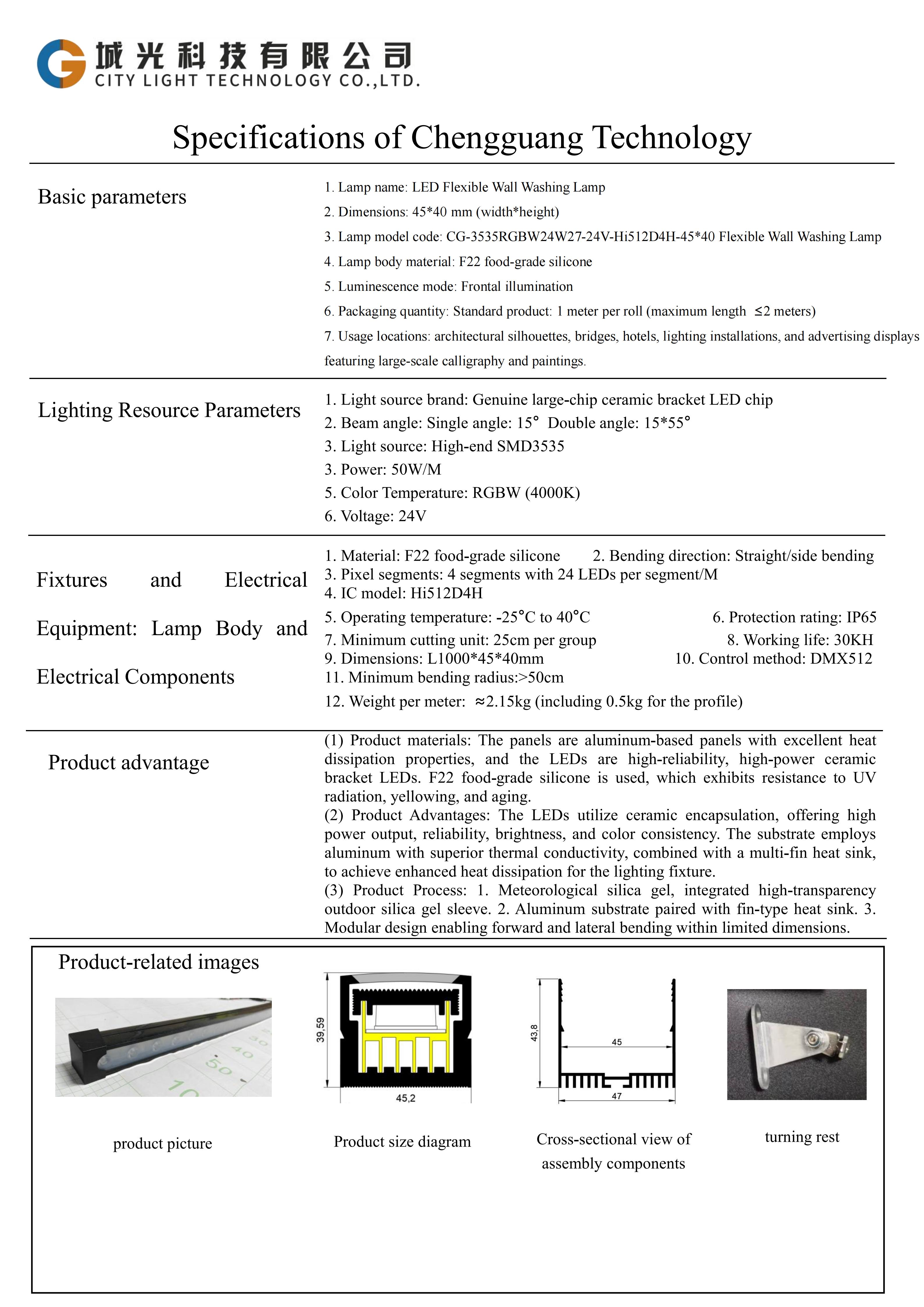

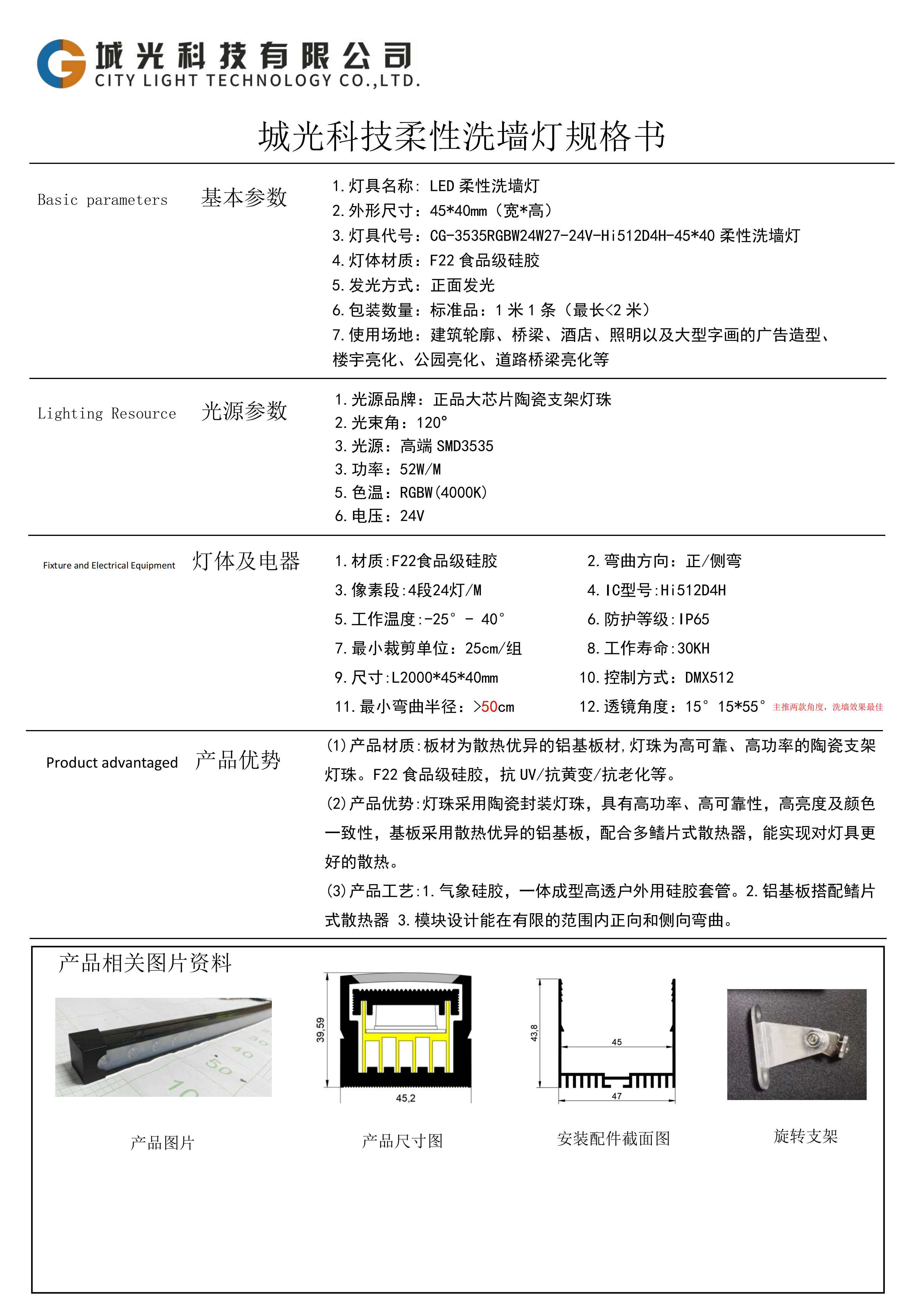

主要技术参数：

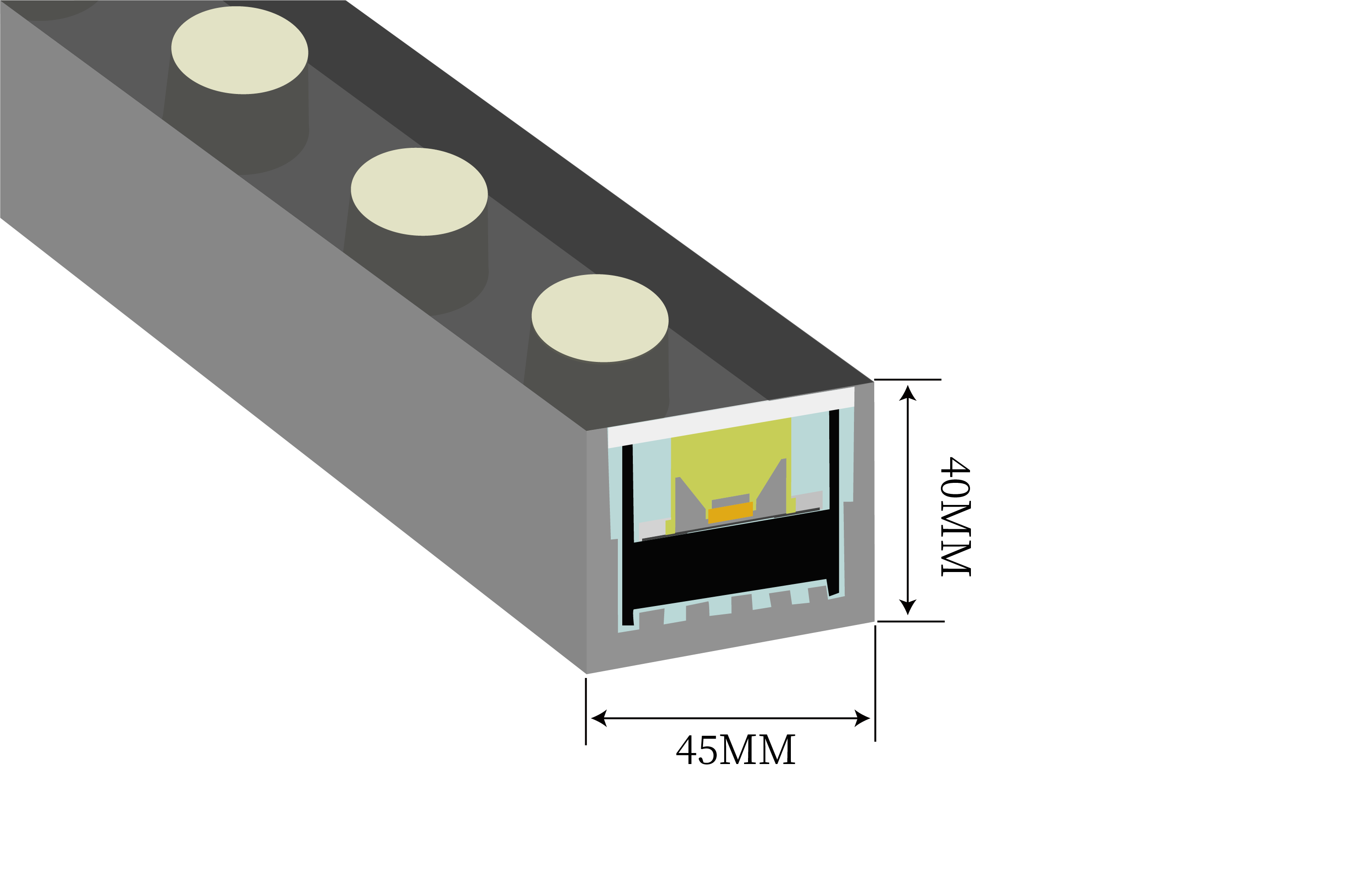

产品尺寸：2000*45*40mm（长度可定制）
输入电压：DC24V
灯具功率：50W/M（可定制）
防水等级：IP65
显色指数：Ra90
透镜角度：单：15° 双：15*55°
灯珠数量：24灯/M
发光颜色：单色/RGBW
控制方式：开关控制/DMX512控制
Product dimensions: 2000*45*40mm (length can be customized)
Input voltage: DC24V
Lamp power: 50W/M (customizable)
Waterproof rating: IP65
Color rendering index: Ra90
Lens angle: Single: 15°; Dual: 15° x 55°
Number of LED beads: 24 LEDs/M
Lighting color: Monochrome / RGBW
Control mode: On/Off control/DMX512 control

技术及工艺创新要点：
一种大功率柔性任意弯曲洗墙灯，包括有壳体，壳体为一个封闭的硅胶空心套管，硅胶空心套管由一个发光面和两个遮光面形成封闭的空腔，所述洗墙灯包括有若干个基础单元模组，每个所述基础单元模组之间通过FPC连接板连接，所述基础单元模组包括有大功率LED、驱动IC、透镜、铝基板PCB和鳍片散热器，且所述基础单元模组呈线性等距排列，所述大功率LED、铝基板PCB和驱动IC通过SMT工艺，完成单个发光单元的电气连接，大功率LED周边预留有PCB连接点，FPC连接板通过预留的PCB连接点，完成多个发光单元的电气连接，鳍片散热器上开设有螺丝孔，压板通过螺丝与底部鳍片散热器预留的螺丝孔锁紧，压板中部开设有孔洞，压板通过孔洞安装有透镜，硅胶套管内部预留滑槽，鳍片散热器底部鳍片通过滑槽预留的槽进入硅胶套管，铝基板PCB背部安装有一较大的铝质散热器，铝基板PCB与鳍片散热器通过螺丝连接。
A high-power flexible, arbitrarily bendable wall washer, comprising a housing, wherein the housing is a closed silicone hollow sleeve. The silicone hollow sleeve forms a closed cavity with one light-emitting surface and two light-shielding surfaces. The wall washer includes a plurality of basic unit modules, each of which is connected by an FPC (flexible printed circuit) connection board. The basic unit modules comprise a high-power LED, a driver IC, a lens, an aluminum substrate PCB, and a fin heat sink. The basic unit modules are arranged linearly and equidistantly. The high-power LED, aluminum substrate PCB, and driver IC are electrically connected through SMT (surface mount technology) to form a single light-emitting unit. PCB connection points are reserved around the high-power LED. The FPC connection board completes the electrical connection of multiple light-emitting units through the reserved PCB connection points. The fin heat sink is provided with screw holes. The pressing plate is locked to the reserved screw holes on the bottom fin heat sink with screws. A hole is provided in the middle of the pressing plate, through which the lens is installed. A sliding groove is reserved inside the silicone sleeve. The fins at the bottom of the fin heat sink enter the silicone sleeve through the reserved groove. A large aluminum heat sink is mounted on the back of the aluminum substrate PCB, which is connected to the fin heat sink with screws.

与国内外同类产品或同类技术的比较情况：
1.高透透镜+高功率的特定支架灯珠，实现50W/M；2.大功率高光透，洗墙效果可实现5M+；3.独特新型链式结构，3D弯曲，防拉扯损伤；4.特殊设计堵头，可实现洗墙效果无缝拼接；5.厚铜铝基板+新型散热系统，散热性能好，导电性能强；6.具有高功率、高可靠性，高亮度及颜色一致性；7.食品级材料，抗腐蚀强，柔韧性强；
1. High-transmittance lens + high-power specific bracket beads, achieving 50W/M; 2. High-power high-light transmittance, with a wall-washing effect that can reach 5M+; 3. Unique new chain-like structure, 3D bending, preventing damage from pulling; 4. Special design plugs, enabling seamless splicing of wall-washing effects; 5. Thick copper aluminum substrate + new cooling system, providing good heat dissipation and strong conductivity; 6. High power, high reliability, high brightness, and color consistency; 7. Food-grade materials, strong corrosion resistance, and high flexibility;

经济评价分析：
1.短期视角：本产品初始采购成本高于普通硬质洗墙灯，仅适合对品质、异形安装有要求的高端项目
2.中长期视角（3 年以上）：凭借安装成本节省、低运维成本、低能耗、高残值，全生命周期成本显著低于普通竞品，投资回报率极高
3.核心价值：产品的经济性并非来自低价，而是来自「解决异形场景安装痛点 + 降低长期运维成本 + 提升项目品质」，是专业工程亮化场景的高性价比选择
4.市场机会：在市政、桥梁、高端楼宇等长期户外亮化项目中，本产品的经济优势将持续扩大，具备极强的市场竞争力
1. Short-term perspective: The initial procurement cost of this product is higher than that of ordinary hard-edged wall washers, making it suitable only for high-end projects that demand quality and unconventional installation
2. Medium and long-term perspective (over 3 years): With its advantages of installation cost savings, low operation and maintenance costs, low energy consumption, and high residual value, the total life cycle cost is significantly lower than that of ordinary competing products, resulting in an extremely high return on investment
3. Core value: The economic efficiency of the product does not come from low prices, but from "solving installation pain points in unique scenarios + reducing long-term operation and maintenance costs + improving project quality". It is a cost-effective choice for professional engineering lighting scenarios
4. Market Opportunities: In long-term outdoor lighting projects such as municipal facilities, bridges, and high-end buildings, the economic advantages of this product will continue to expand, making it highly competitive in the market

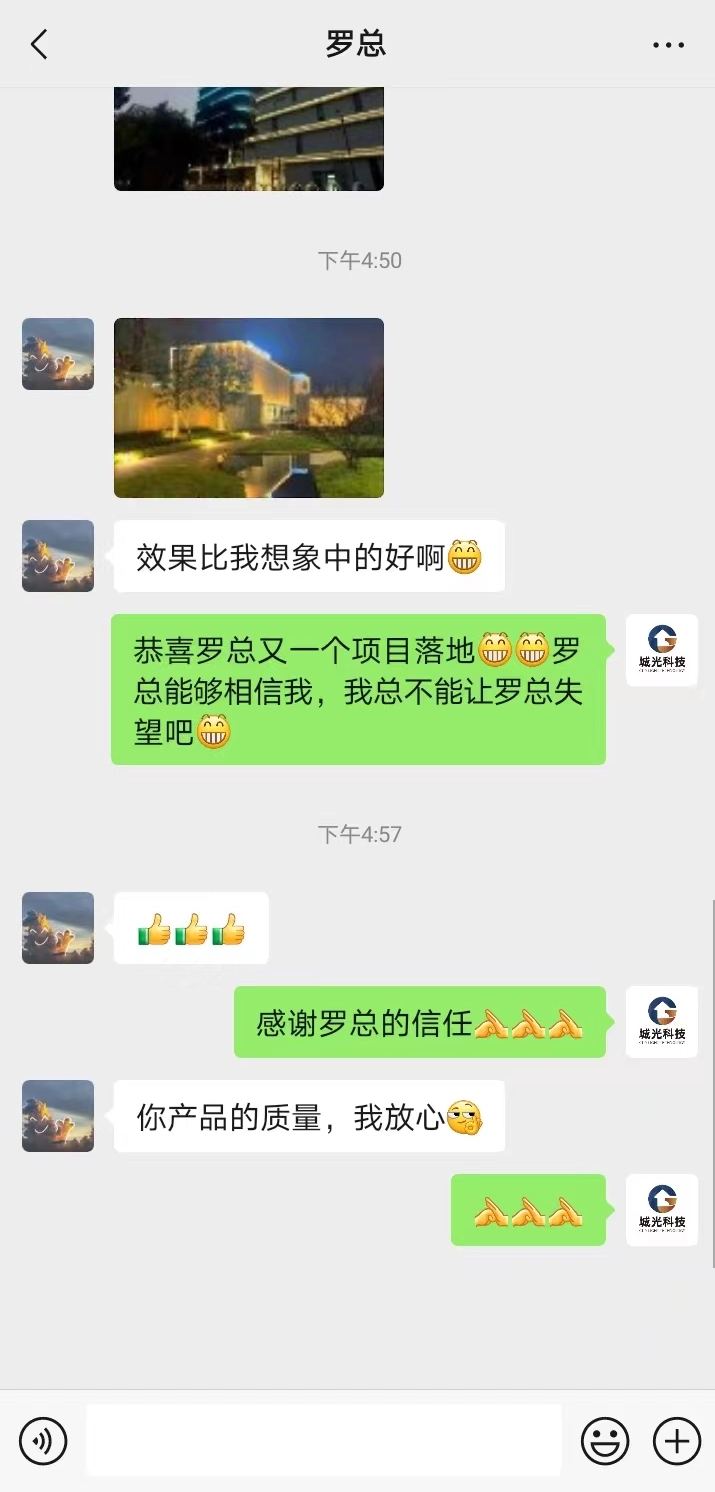

实际运用案例和用户评价意见：

获奖、专利情况：

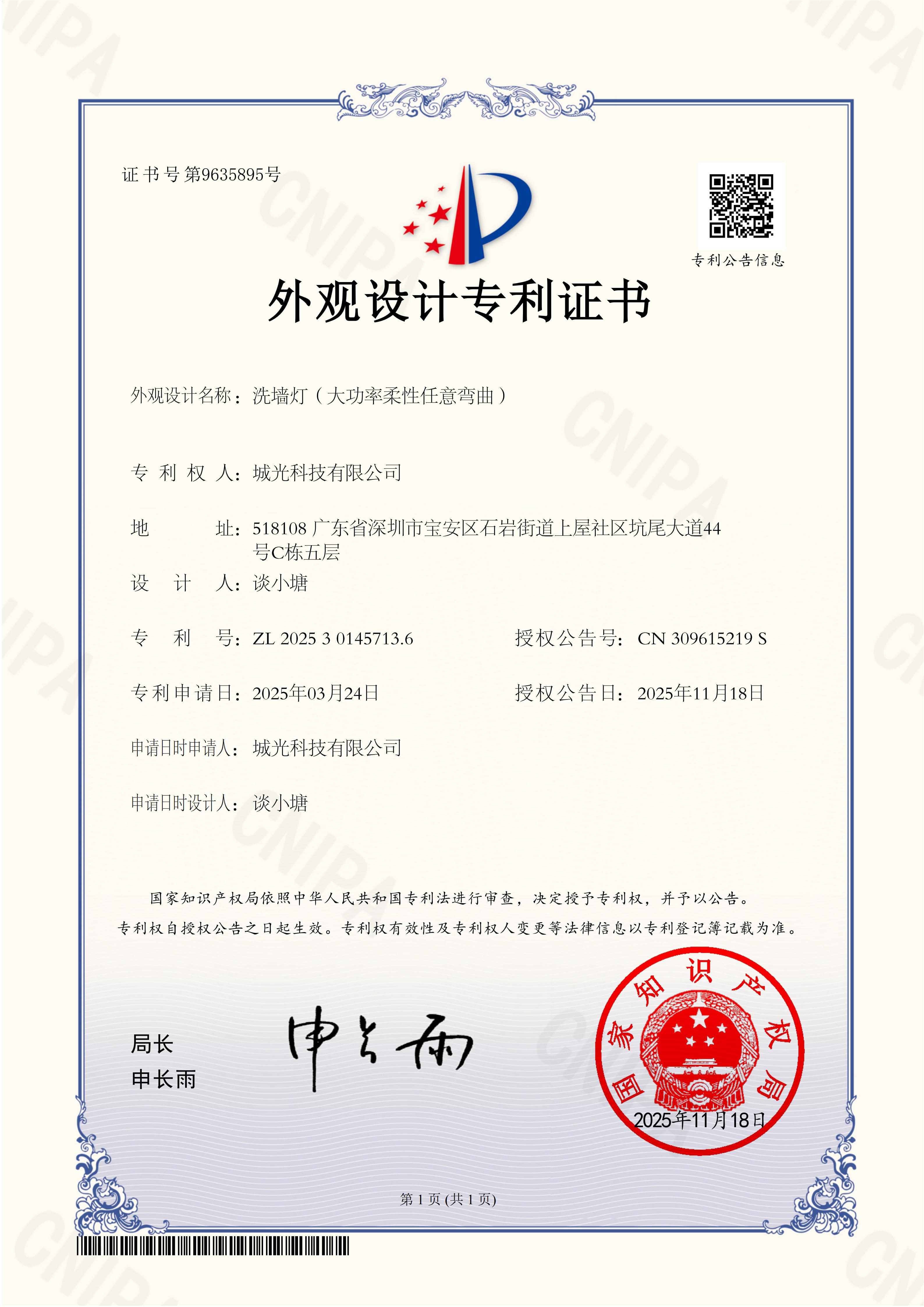

2025年11月18日，获得外观设计专利证书；
2026年02月17日，获得实用新型专利证书；
